Electrical connection
Compress 5800i AW – 6721862724 (2023/06)
22

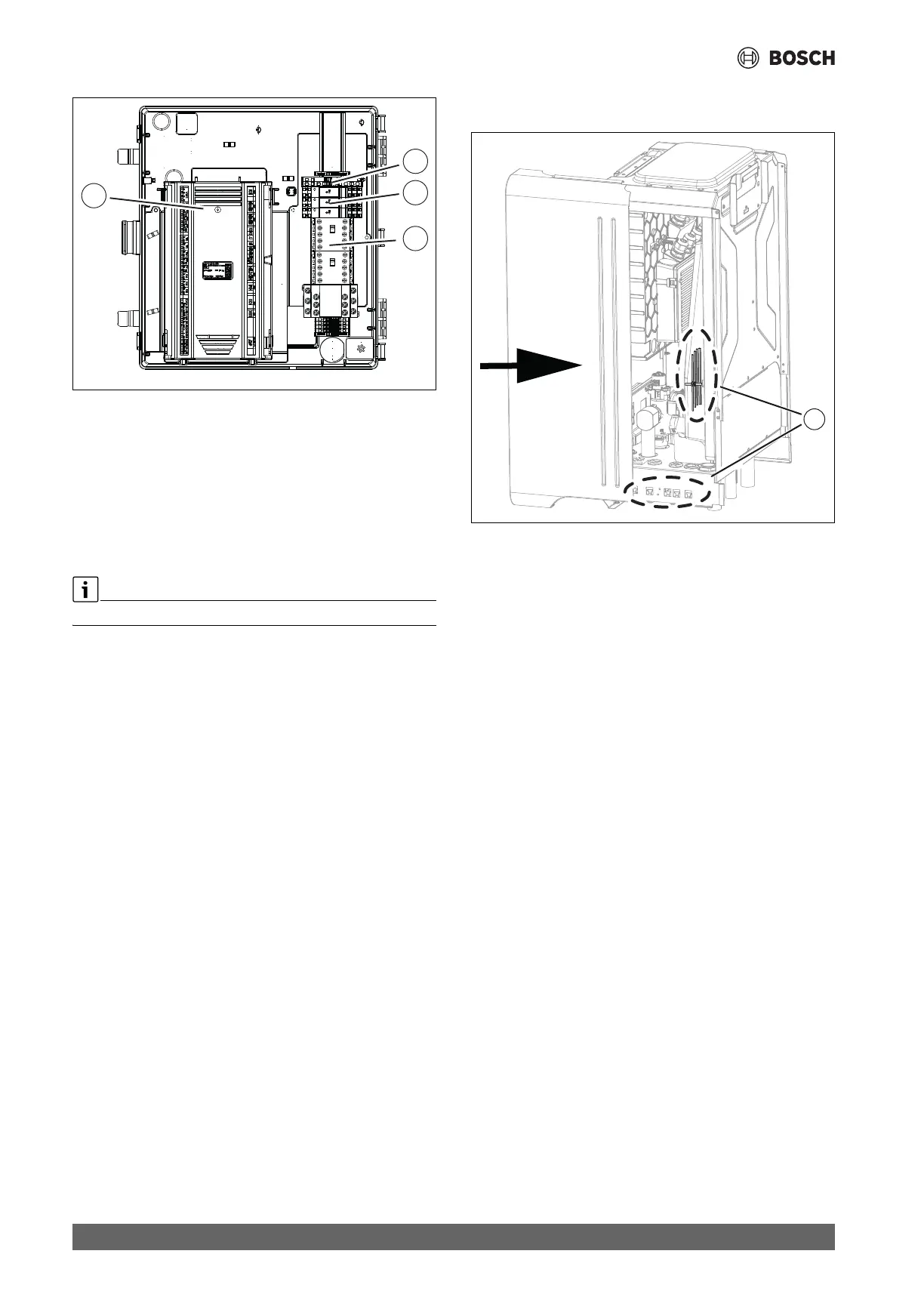

Fig. 28 Arrangement of components in the electric box
[1] Melting fuse for external circulation pumps PC1, PW2 and PK2
Type: cartridge fuse 250V; 5x20mm; 5A speed T
[2] Relays: outputs for PC1, PW2 and PK2
[3] Contactors for switching booster heater
[4] XCU-THH (XCU HY) module
6.10.3 Mount the side cover
▶ Slide the side cover in place, when all connections are done.
▶ Make sure that no cables are squeezed between the side cover and
the structure (Figure 29 [1]).
Fig. 29 Slide the side cover in place
6.10.4 Terminal connections in electric box
Please note the jumper arrangement.
