328
63.8+0.2
19.5+0.1
2+0.1
+0.1
-0.2
158
+0.1
-0.2
R106+0.2(2x)
R49+0.2(4x)

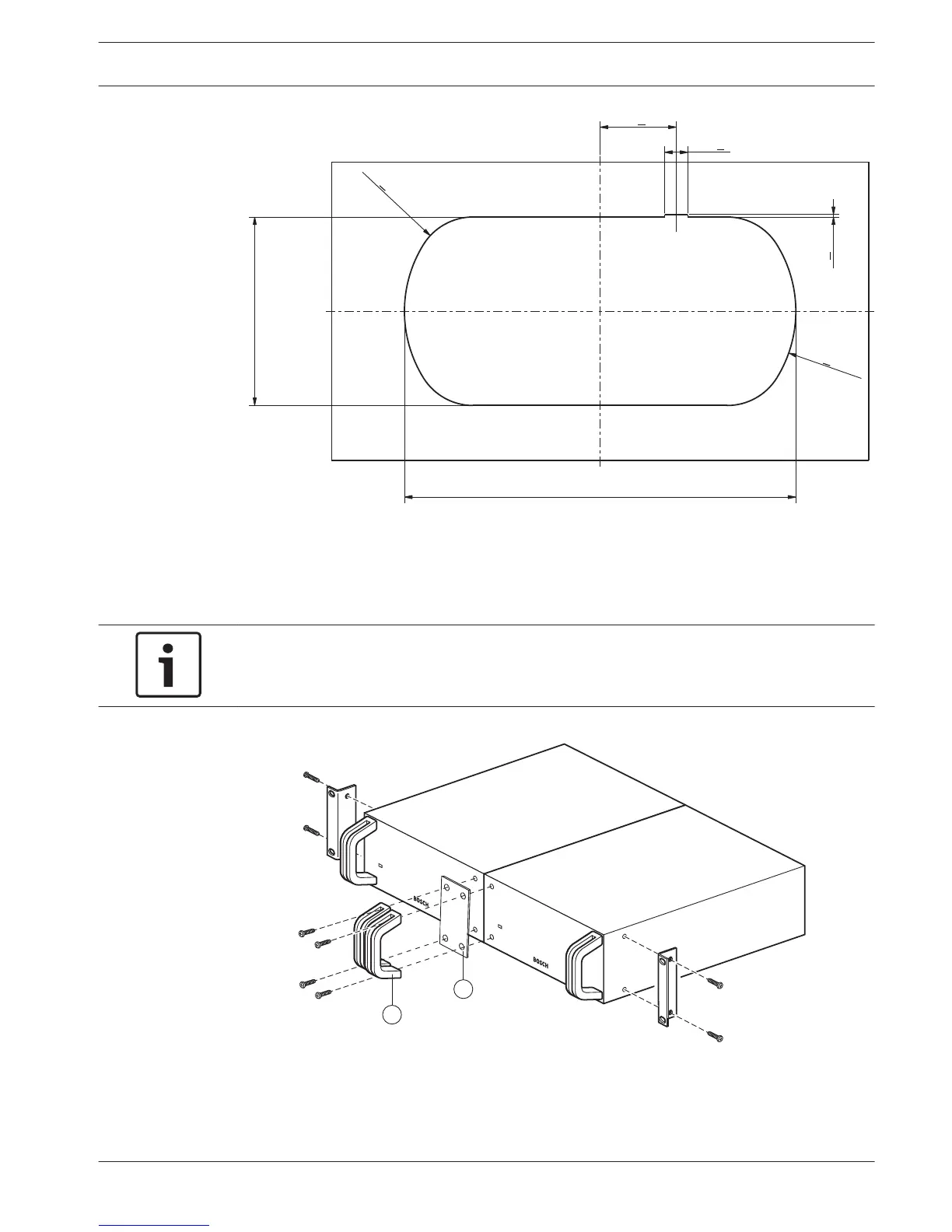

Figure 5.25: Template (refer to the DVD that is supplied with the system for a *.dwg file)
DCN-EPS Extension Power Supply
Install the extension power supply in a 19-inch rack system or on a flat surface. Two brackets
are supplied with the extension power supply.
Notice!
You can only install the extension power supply in a 19-inch rack system together with a
second extension power supply.
A
B
Figure 5.26: Installation
5.8
Conference System Installation | en 109
