LBB4114/00 Trunk Splitter
You can install the trunk splitter on a flat surface. Use the lid of the trunk splitter to fix the
DCN cables.

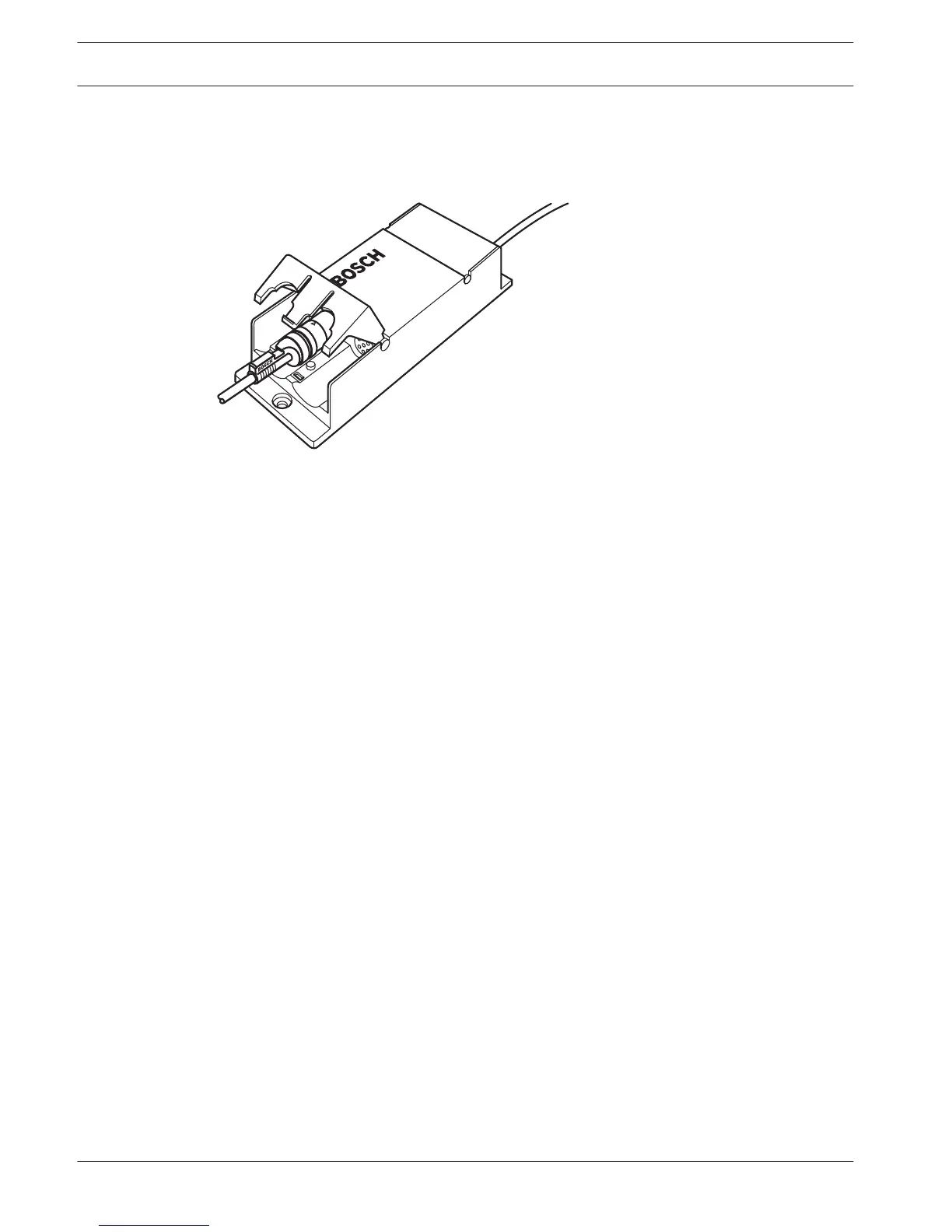

Figure 5.27: Installation
LBB4115/00 Tap-off unit
Refer to LBB4114/00 Trunk Splitter, page 110for information about the installation of the
LBB4115/00 Protected Trunk Splitter. The procedures to install the LBB4114/00 Trunk
Splitter and the LBB4115/00 Protected Trunk Splitter are the same.
5.9
5.10
110 en | Installation Conference System
2013.11 | V2.0 | DCN-NG_OM_V4.x Operation Manual Bosch Security Systems B.V.
