PRS-NSP Network Splitter

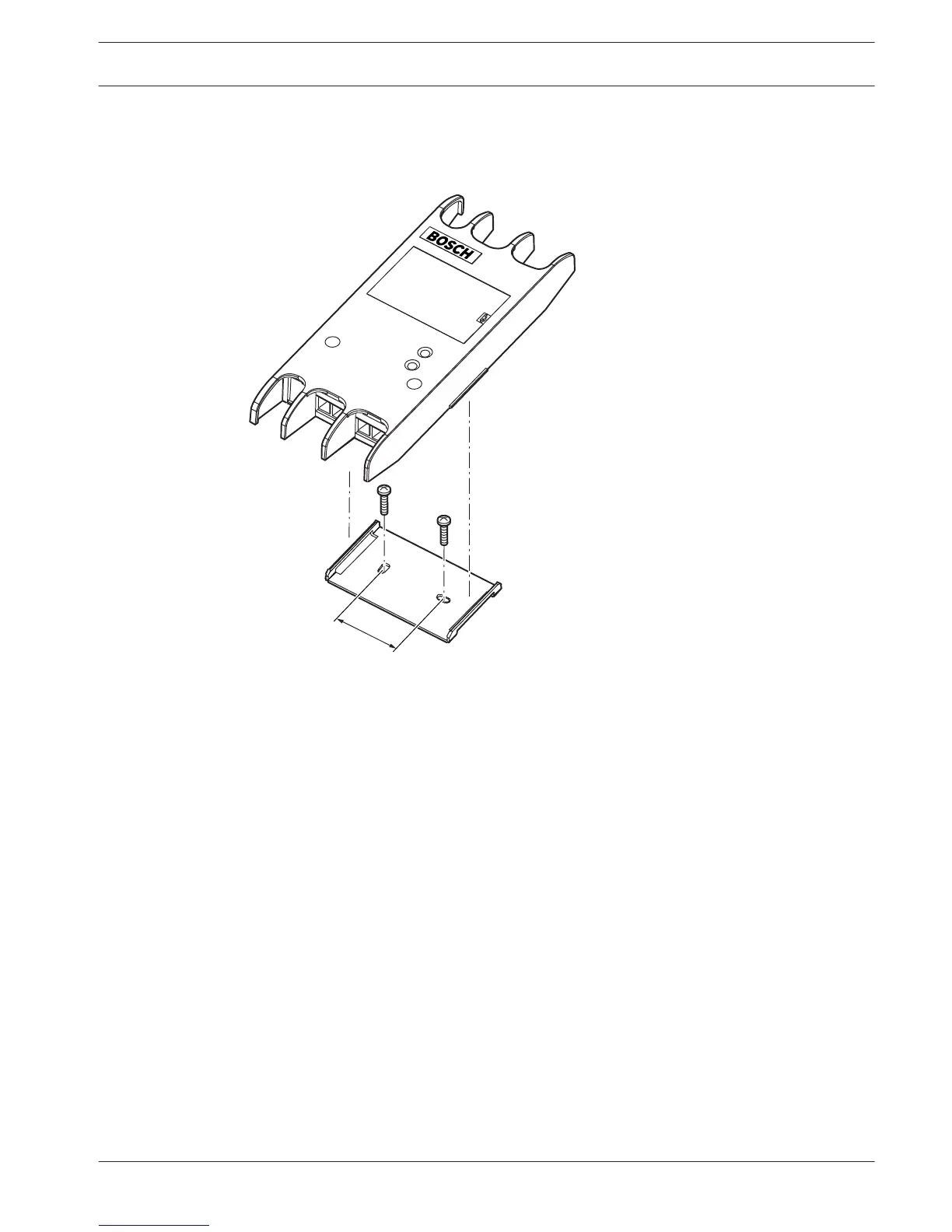

You can attach the network splitter to a flat surface with a bracket. The distance (d) is 40 mm.
d
Figure 5.28: Installation
Push the sides of the unit to attach or remove the unit from the bracket.
PRS-FINNA Fiber Interface
Refer to PRS-NSP Network Splitter, page 111 for information about the installation of the fiber
interface. The procedures to install the network splitter and the fiber interface are the same.
5.11
5.12
Conference System Installation | en 111
