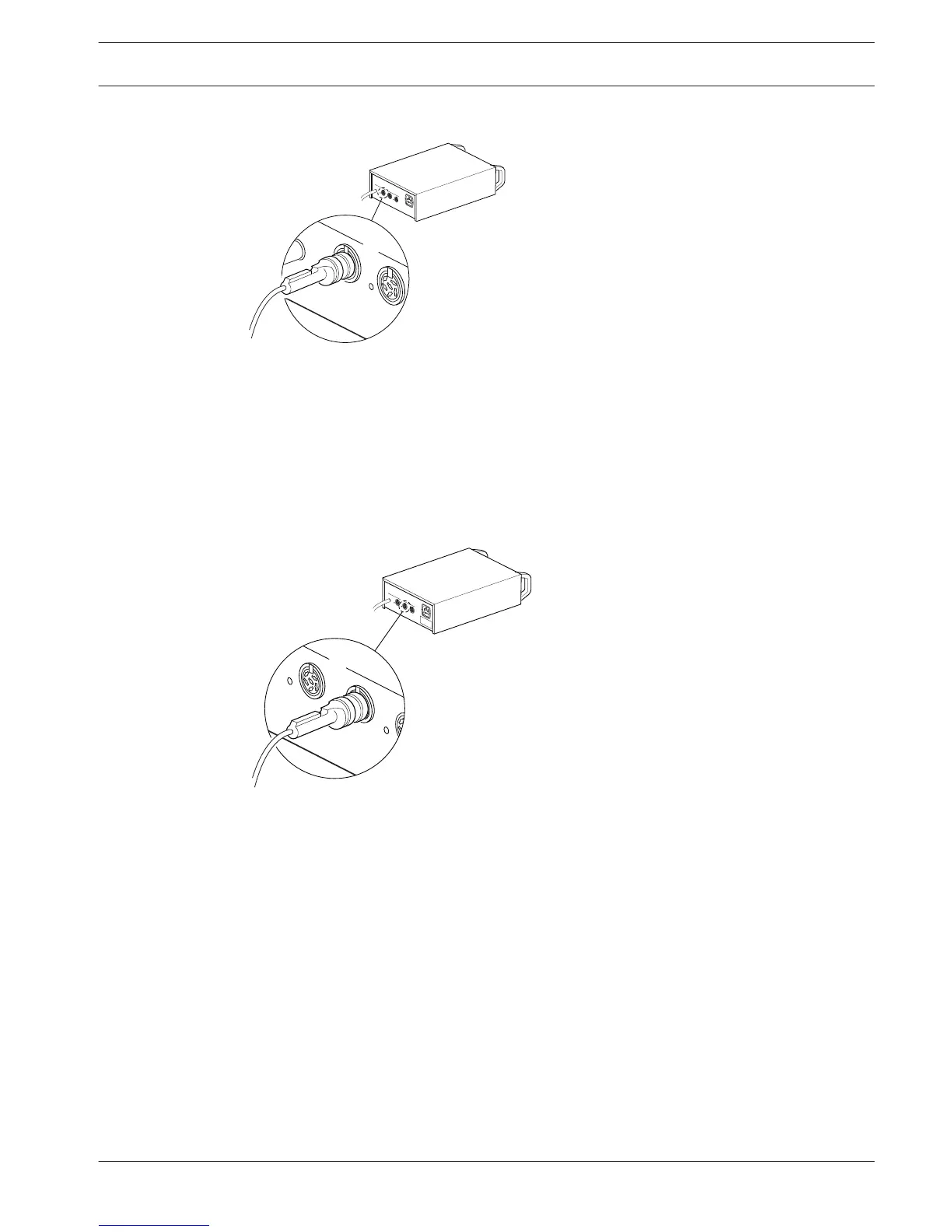

Figure 6.45: DCN trunk
The DCN trunk socket has a red LED that comes on if there is an overload (refer to Power
capacity, page 78).
DCN tap-offs
With the DCN tap-off sockets, you can make tap-offs in the DCN.
M
ain
s
Out
Out
In
T
ap-of
f
T
runk
O
ut
O
ut
O
ut
I
n
T
a
p
-
of
f
T
r
u
n
k
Figure 6.46: DCN tap-offs
Each DCN tap-off socket has a red LED that comes on if there is an overload (refer to Power
capacity, page 78).
