42
31

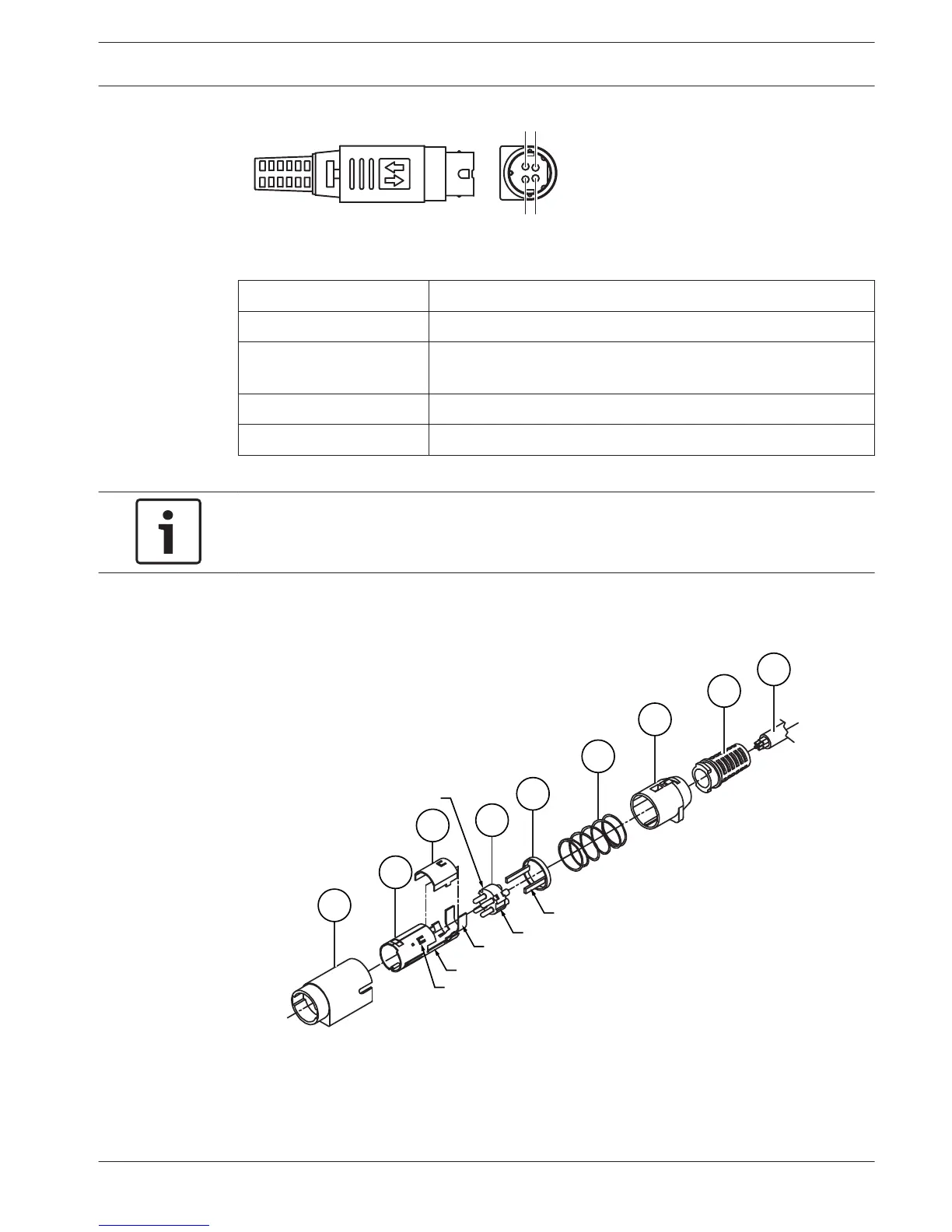

Figure 6.49: Kycon KPP-4P plug, connection
Pin Signal
1 Ground
2 Power from the external power supply. Voltage: 24 - 48 V, max. 5
A.
3 Power from the system. Voltage:48 V, max. 5 A.
4 Not connected
Table 6.29: Kycon KPP-4P plug, connection
Notice!
You can, for example, connect a DCN-EPS Extension Power Supply to the Kycon KPP-4P
socket of the network splitter.
The Kycon KPP-4P plug is shown in parts.
A
B
C
D
E
G
F
semi-circular notch
arm
H
I
slot
slotted cut-out
metal tabs
'U' section
Figure 6.50: Kycon KPP-4P plug, parts
