Bosch DCN Next Generation - Page 156

10 - 40 V(DC)
GND

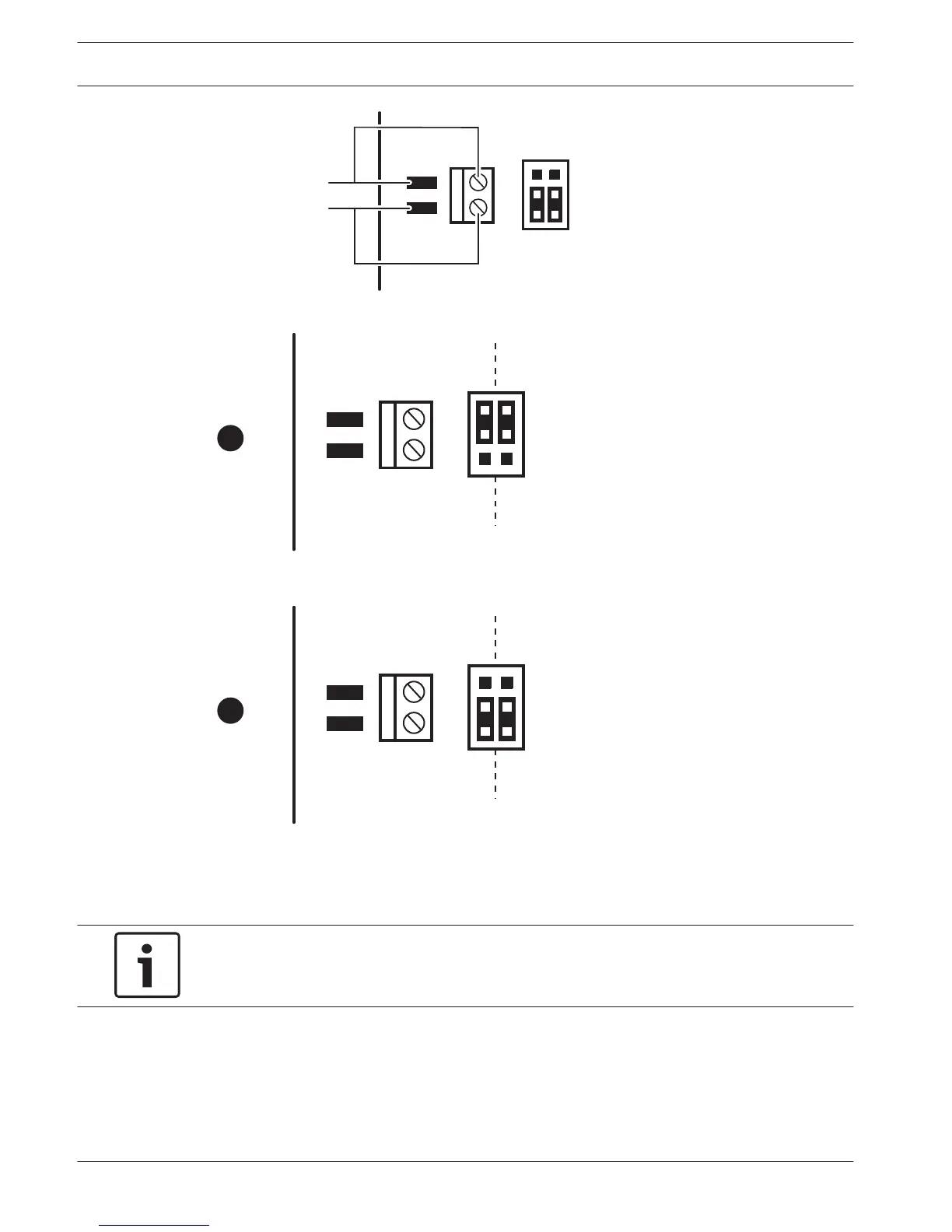

Figure 6.60: Power supply
J10
J10
B
A
Figure 6.61: Power supply
Remote Controls
You can use the parallel inputs and parallel outputs as remote controls. For example, to switch
on lamps, open doors or close curtains in the room.
Notice!
The parallel inputs and parallel outputs are also available on a 20-pole connector.
All parallel inputs and parallel outputs form pairs. For example, parallel input U00 controls
parallel outputs D00.
