Insertion
In the Insertion mode, audio output 2 and audio input 2 of the central control unit are both
used to add signals from external audio devices. For example, connection of an external audio
mixer between audio output 2 and audio input 2 of the central control unit.
Ɖ
O
DC
DC
Ɖ
O
O
I
D
I
1
2
2
1
PC
PC
CCU

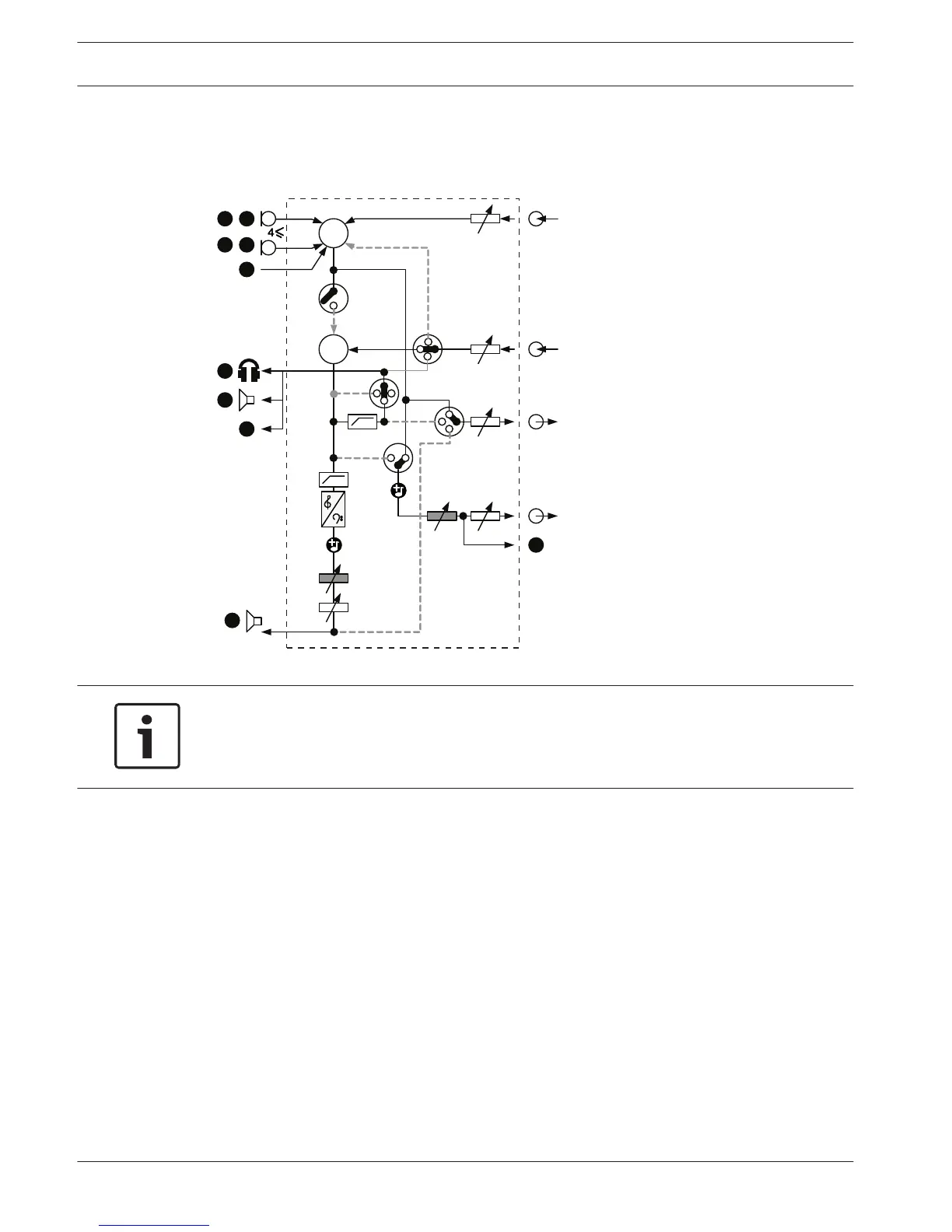

Figure 3.5: Insertion
Notice!
In the Insertion mode, a device between audio output 2 and audio input 2 of the central
control unit could be connected. When no device is connected, the audio signals from
contribution devices (floor) leave the system, but do not enter the system again.
