DCN-EPS Extension Power Supply
Use the connector block inside the extension power supply to select the voltage on which the
extension power supply must operate.
10
9
8
7
6
5
4
3
2
1

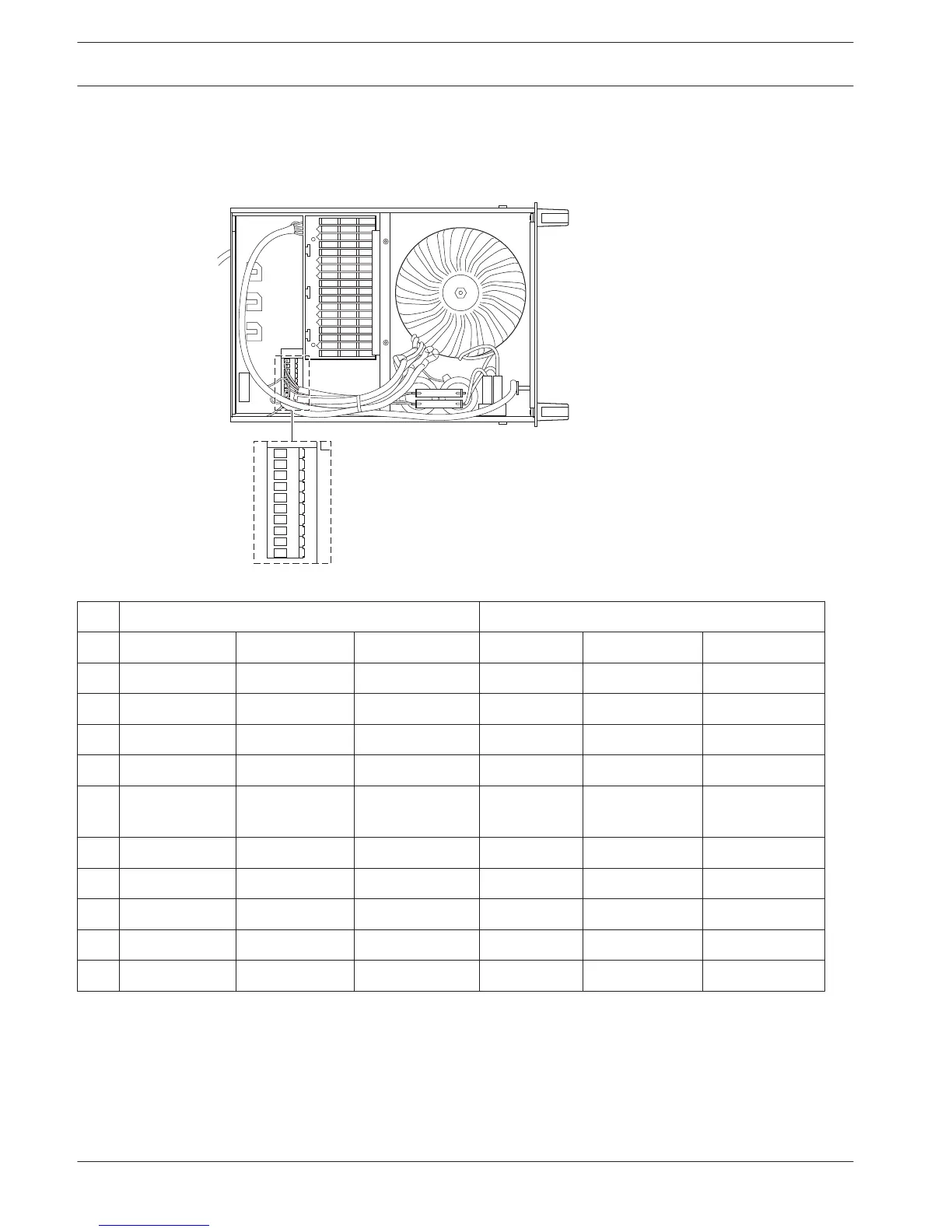

Figure 7.26: Internal settings
Fuse T5A Fuse T4A H
Pin 105 V(AC) 115 V(AC) 125 V(AC) 220 V(AC) 230 V(AC) 240 V(AC)
1 Blue (power) n.c. Blue (power) Blue (power) n.c. Blue (power)
2 Black Green Green Green Green Green
3 Green Blue (power) Black Green Black Black
4 Orange Orange Orange n.c. Blue n.c.
5 Blue
(transformer)
Blue
(transformer)
Blue
(transformer)
Blue
(transformer)
Blue
(transformer)
Blue
(transformer)
6 n.c. Black n.c. Violet Violet Violet
7 Yellow Yellow Yellow Yellow Yellow Yellow
8 n.c. n.c. n.c. Orange Orange Orange
9 Violet Violet Violet n.c. n.c. n.c.
10 Brown Brown Brown Brown Brown Brown
Table 7.43: Internal settings (n.c. = not connected)
