Notice!
The distance between the centers of the screw holes is 100 mm.
29. De-init switch - Erases the address of the interpreter desk. All LEDs on the interpreter
desk come on when the interpreter desk does not have an address.
30. Sensitivity potentiometer - Adjusts the volume level of the microphone that is connected
to the interpreter desk.
31. Cable lock - Fixes the DCN cable.
The following sections give more information about the mentioned subject:
– Installation: DCN-IDESK Interpreter Desks, page 108
– Connection: DCN-IDESK Interpreter Desks, page 141.
– Configuration: DCN-IDESK Interpreter Desks, page 221.
– Technical Data: DCN-IDESK Interpreter Desks, page 285.
DCN-EPS Extension Power Supply
The DCN-EPS Extension Power Supply supplies power to the DCN system. Use it to increase
the number of devices that can be connected to the system.
Notice!
The DCN-EPS-UL Extension Power Supply is the CSA/UL approved version of the DCN-EPS.
1

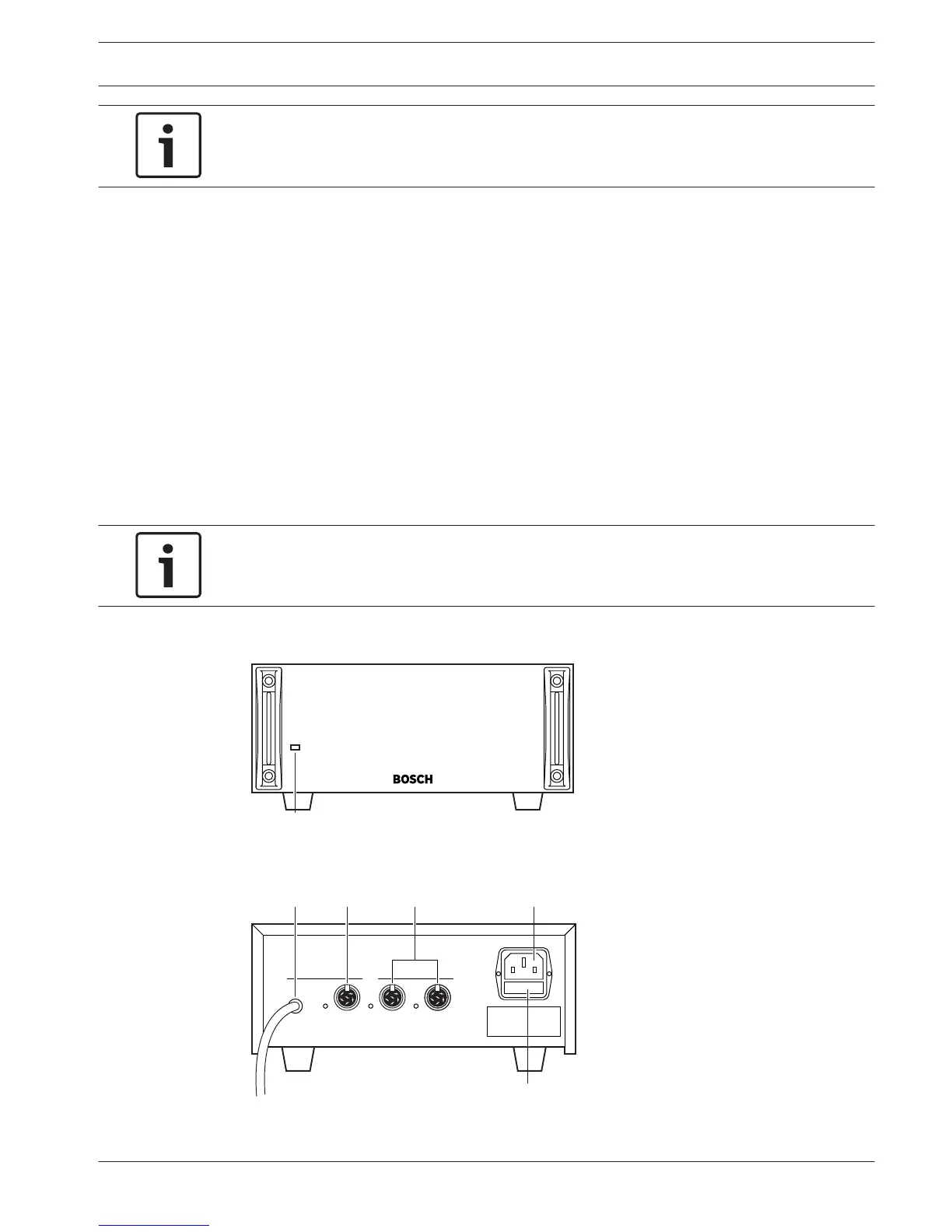

Figure 3.55: Front view
Out
6
54
OutOutIn
Tap-offTrunk
32
Figure 3.56: Rear view
3.27
Conference System System Overview | en 53
