Configuration of the recommended Navilock
NL‐8004P MD6 Serial PPS Multi GNSS Receiver
For the sensor configuration, the sensor needs to be connected to the Navilock
software “U‑Center” which is available from Navilock free of charge. Navilock of‐
fers a USB connection cable for the sensor.
In “U‐Center” click “View” – “Configuration View” to start the configuration.
The following 3 points have to be changed:
Transfer Rate

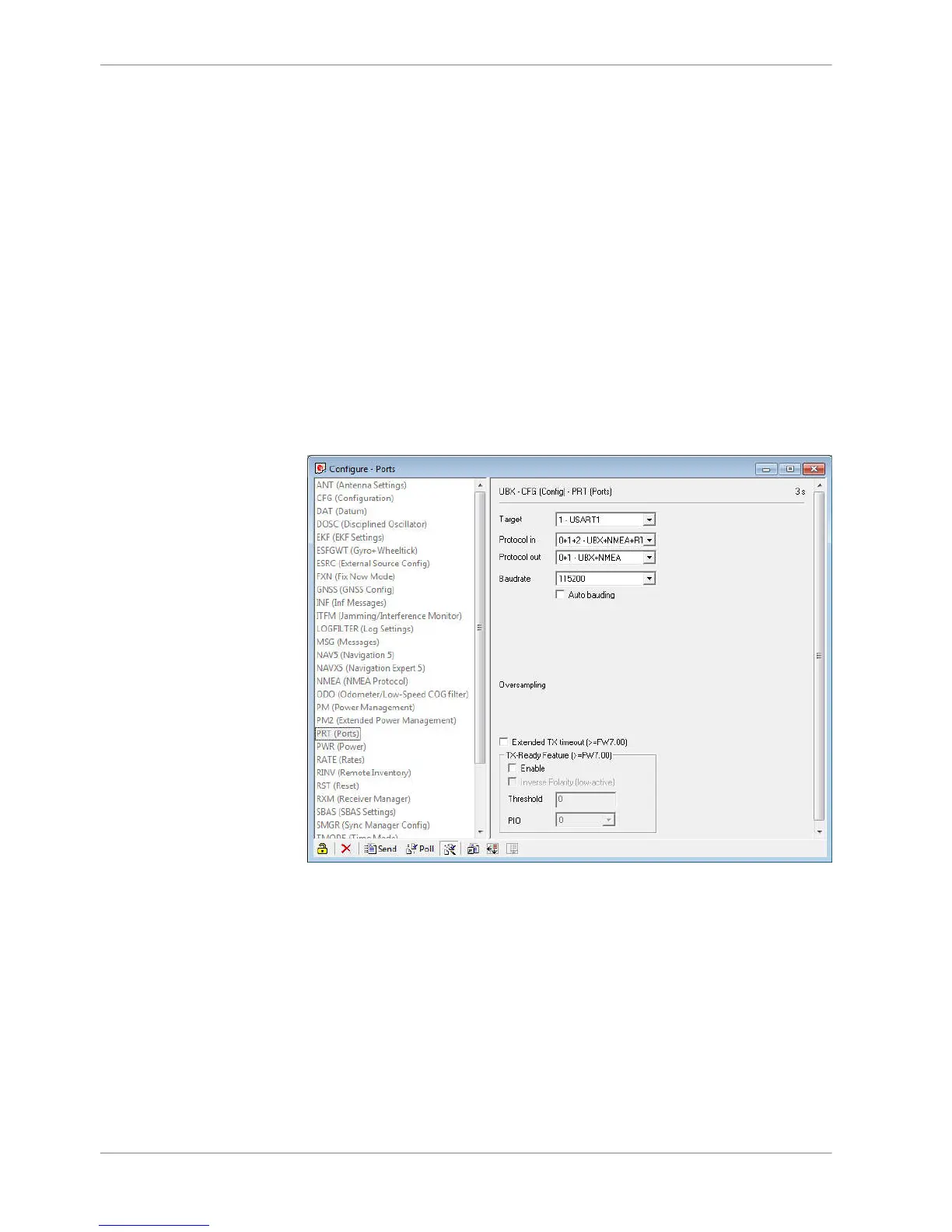

▪ Click on “PRT (Ports)”.
▪ Change the baud rate to a fix value, this value needs to meet the setting of
RaceCon. For a good signal quality we recommend 115,200 baud.
▪ Click on “Send” to store the new setting in “U‐Center”.
▪ Click on “CFG (Configuration)”.
▪ Click on “Send” to save the new setting on the sensor.
15.3.1
15 | GPS Sensor
126 / 136 DDU S2 PLUS Manual Bosch Motorsport
