Creating a new math channel

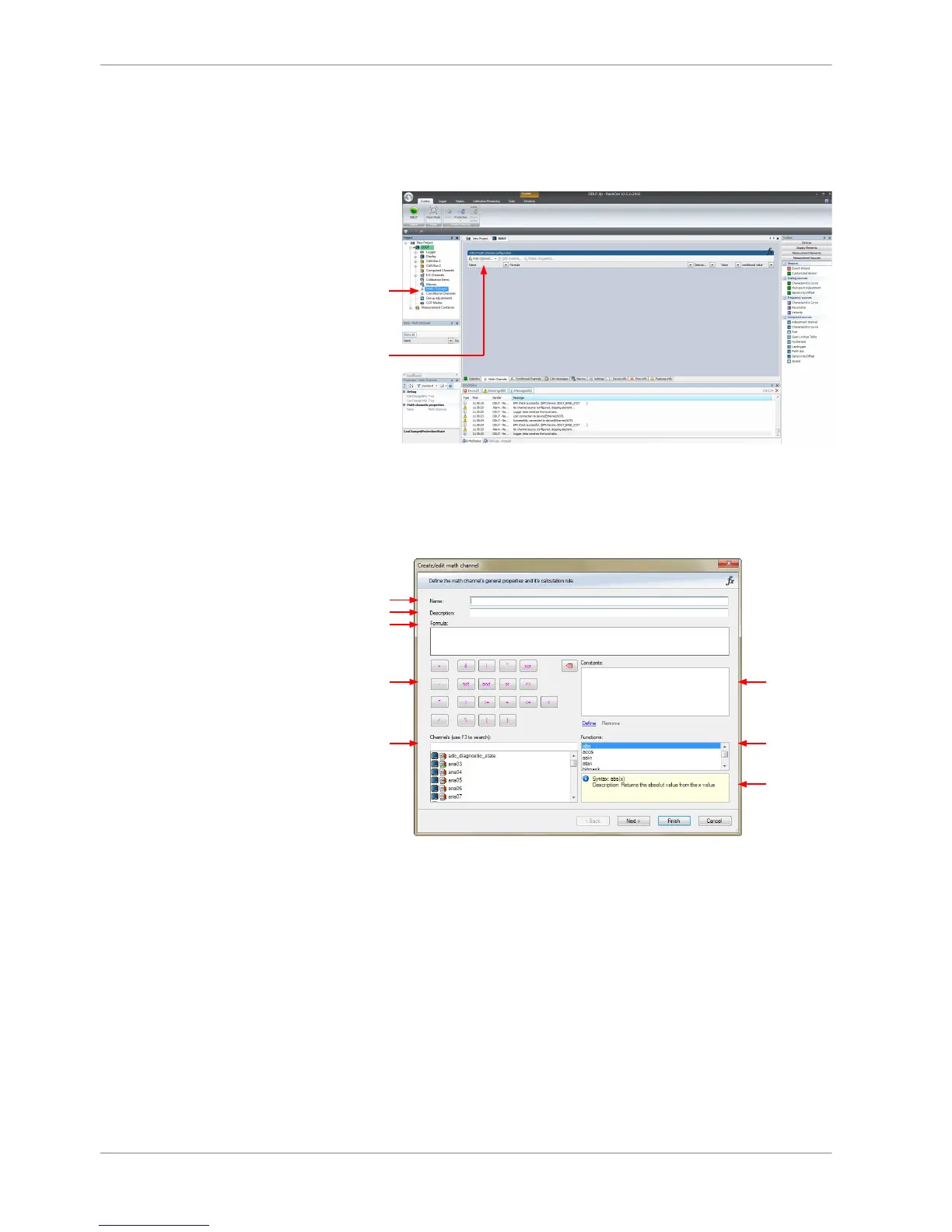

Follow the steps shown in the screenshot.
1st: Double-click on
'Math Channels' in
2nd: Click on
'Add channel'
Project TreeDDU S2 PLUS
The ‘create/edit math channel’ window appears.
Create/Edit Math Channel Window
1. Define the math channel using the following configuration possibilities:
a)
b)
c)
d)
e)
f)
g)
h)
a) Enter the name of the math channel.
b) Enter a description of the math channel.
c) Enter the formula.
d) Select the logical operator.
e) Choose a measurement channel.
f) Define a value that can be used as a constant in the formula.
g) Choose a function.
h) Describes the function selected above.
2. Click ‘Finish’ when done.
The math channel is displayed in the DDU 8 math channel window.
