Bosch DDU S2 Plus - Page 73

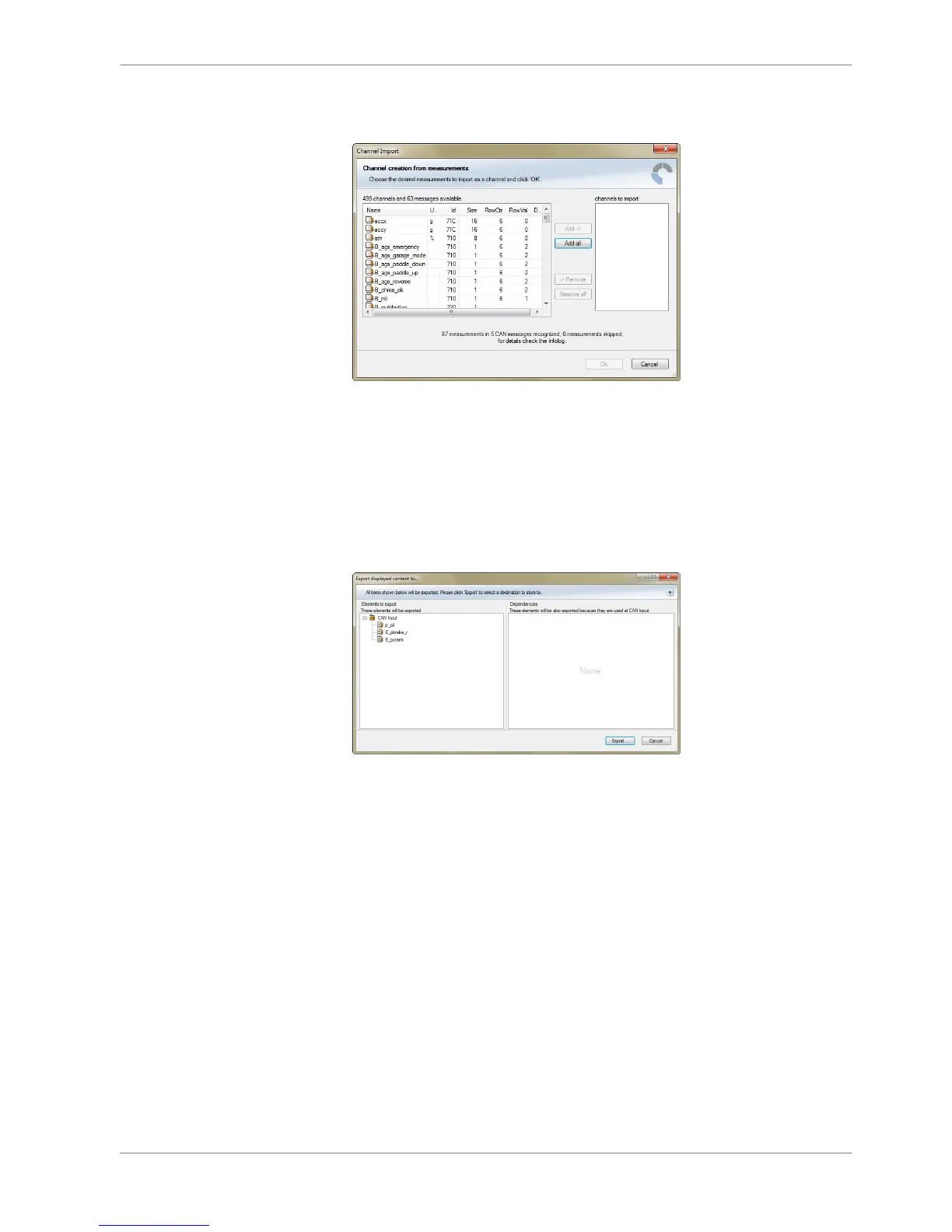

3. Select DBC file to import and click ‘OK’ when done. A channel import window
opens.
4. Select desired channels on the left and use the ‘Add’ button to add them to
import list.
5. Click ‘OK’ when complete. The channels are inserted in the Data window.
Export RaceCon CAN configuration
1. Right‐click on CAN Input of desired bus (CAN1, CAN2 or CAN3).
2. Select ‘Export…’ from menu. An ‘Export Selection’ window opens.
3. Specify the filename.
4. Click ‘OK’ when done.
Import RaceCon CAN configuration
1. Right‐click on CAN Input of desired bus (CAN1, CAN2 or CAN3).
2. Select ‘Import…’ from menu. A file browser opens.
9.2.9
9.2.10
CAN Bus | 9
Bosch Motorsport DDU S2 PLUS Manual 73 / 136
