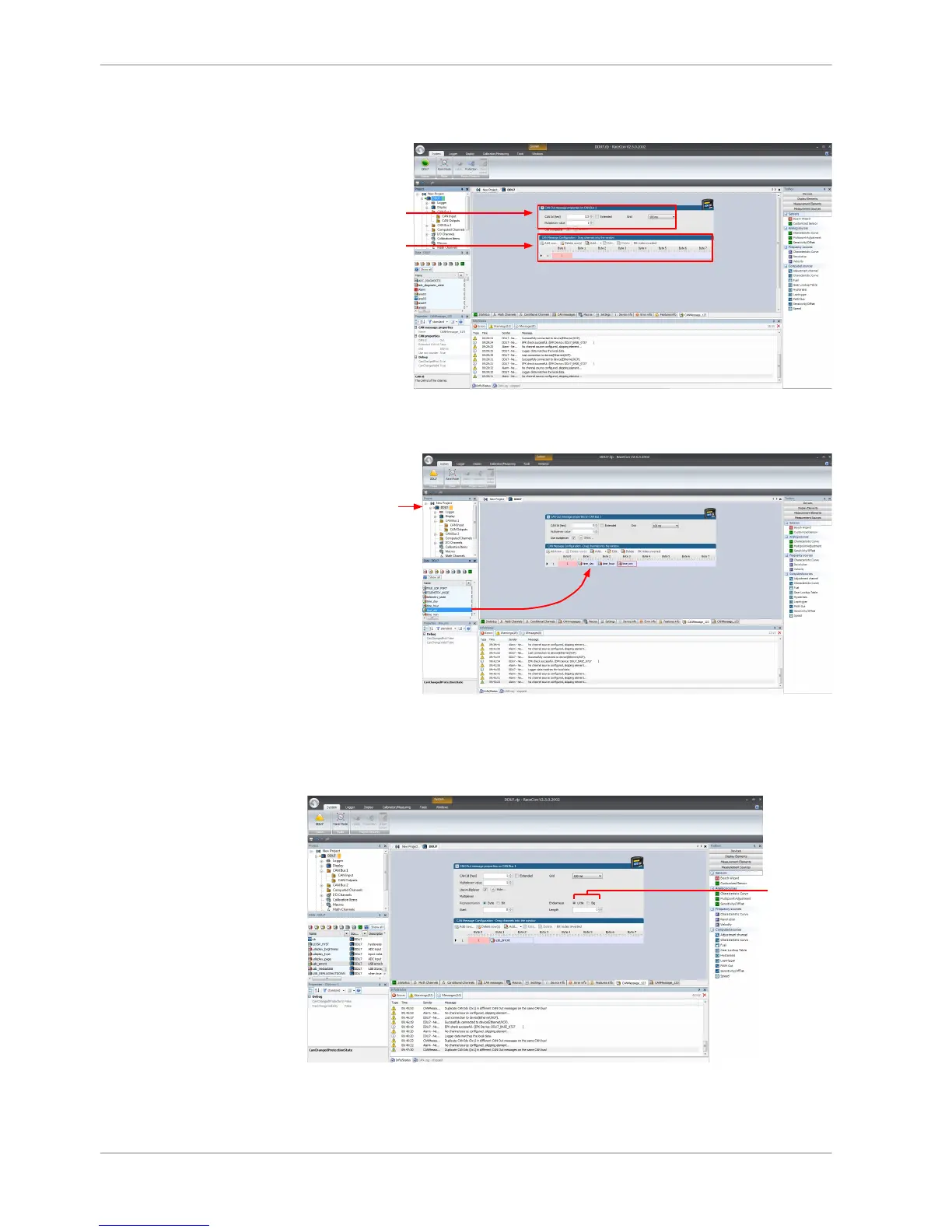

5. Click ‘OK’ when done. A CAN message configuration window opens in the
Main Area.
Definition of
CAN message
Content of
message
6. Click on ‘’ in the Project Tree to display all labels.
7. Select the desired measurement channel and drop it on message’s bytes.
Click here
Drag + Drop
The measurement channel is assigned to the CAN message.
Set up word length, byte order and quantization
Set byte order
of channel on
CAN bus
Word length and quantization of channel are fixed.
Byte Order can only be changed if a channel allocates more than one byte.
