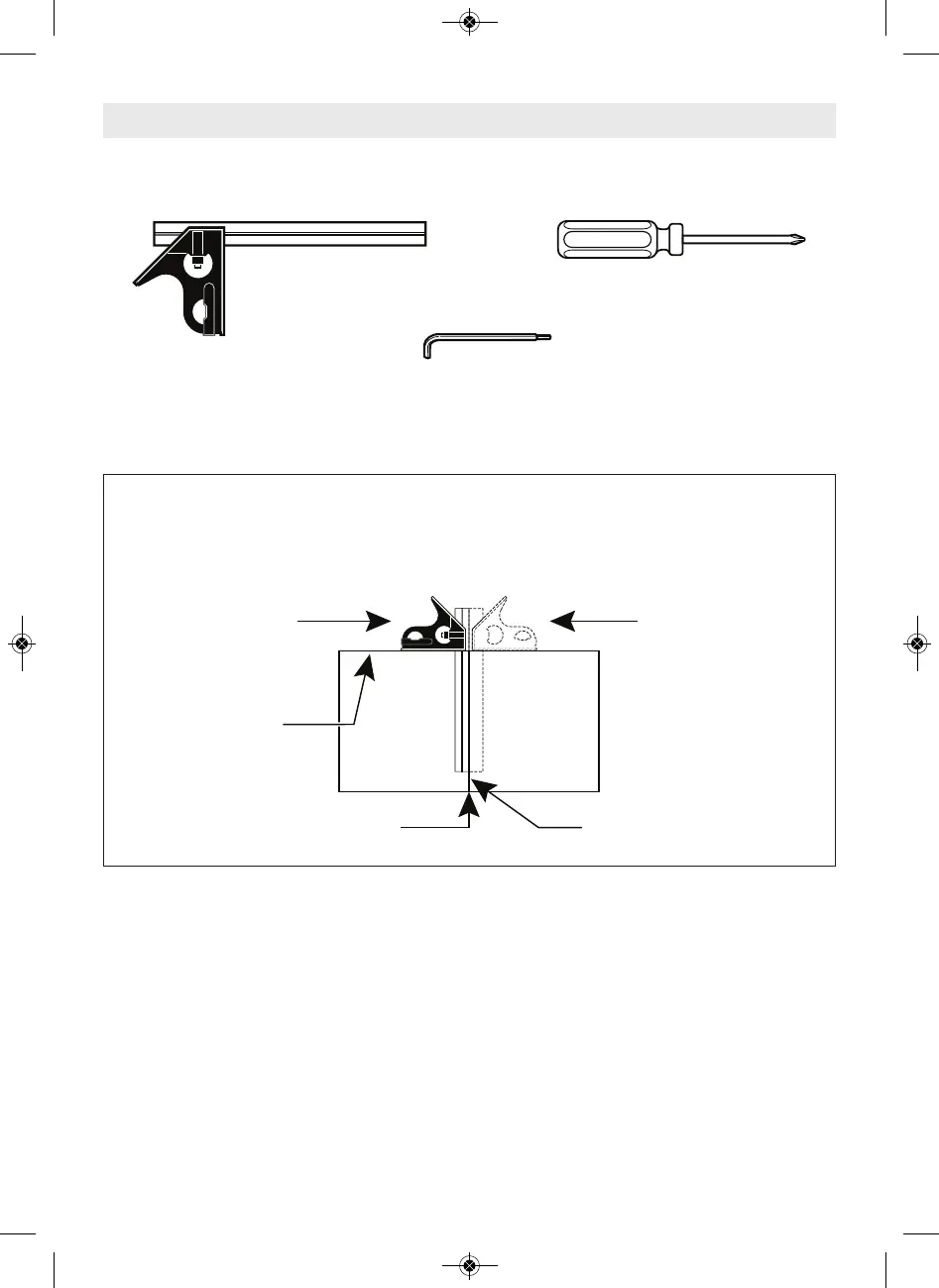

Tools Needed For Assembly
Combination Square
6/4mm Hex Key
(supplied)
#2 Phillips Screwdriver
NOTE: A 6mm and a 4mm hex key can be
substituted for the supplied 6/4mm hex key.
no gap or overlap
2. Flip square (shown
in dotted position)
3. Check edge of
flipped square against
the drawn line. There
should be no gap or
overlap at the bottom
end.
drawn line
3/4" board with
straight top edge
1. Position square
and draw a light line
Combination Square Must Be True -
Checking Combination Square
