Saw Operations
Switch Activation
For safety, the switch lever is designed to pre-
vent accidental starts. To operate safety switch,
slide the switch “Lock-OFF” release button with
either thumb to disengage the lock, then pull
the power switch trigger and release the switch
“Lock-OFF” release button (figure 39). When
the power switch trigger is released, the switch
“Lock-OFF” release button will engage the
power switch trigger automatically, and the
lever will no longer operate until either “Lock-
Off” release button is engaged again.
NOTE: Power switch trigger can accommodate
a padlock with a long shackle of up to 5/16" in
diameter (not provided with miter saw) to pre-
vent unauthorized use.
Power Switch
Lever
Padlock
Hole
Switch “Lock-OFF”
Release Buttons
Fig. 39
Right Side
2"
2-5/8"
2-5/8"
7"
7"
NOTCH OUT
2"
2-1/2"
9.5"
7"
Left Side
5-1/2"
26"
4 Mounting Holes
SLIDE CUT

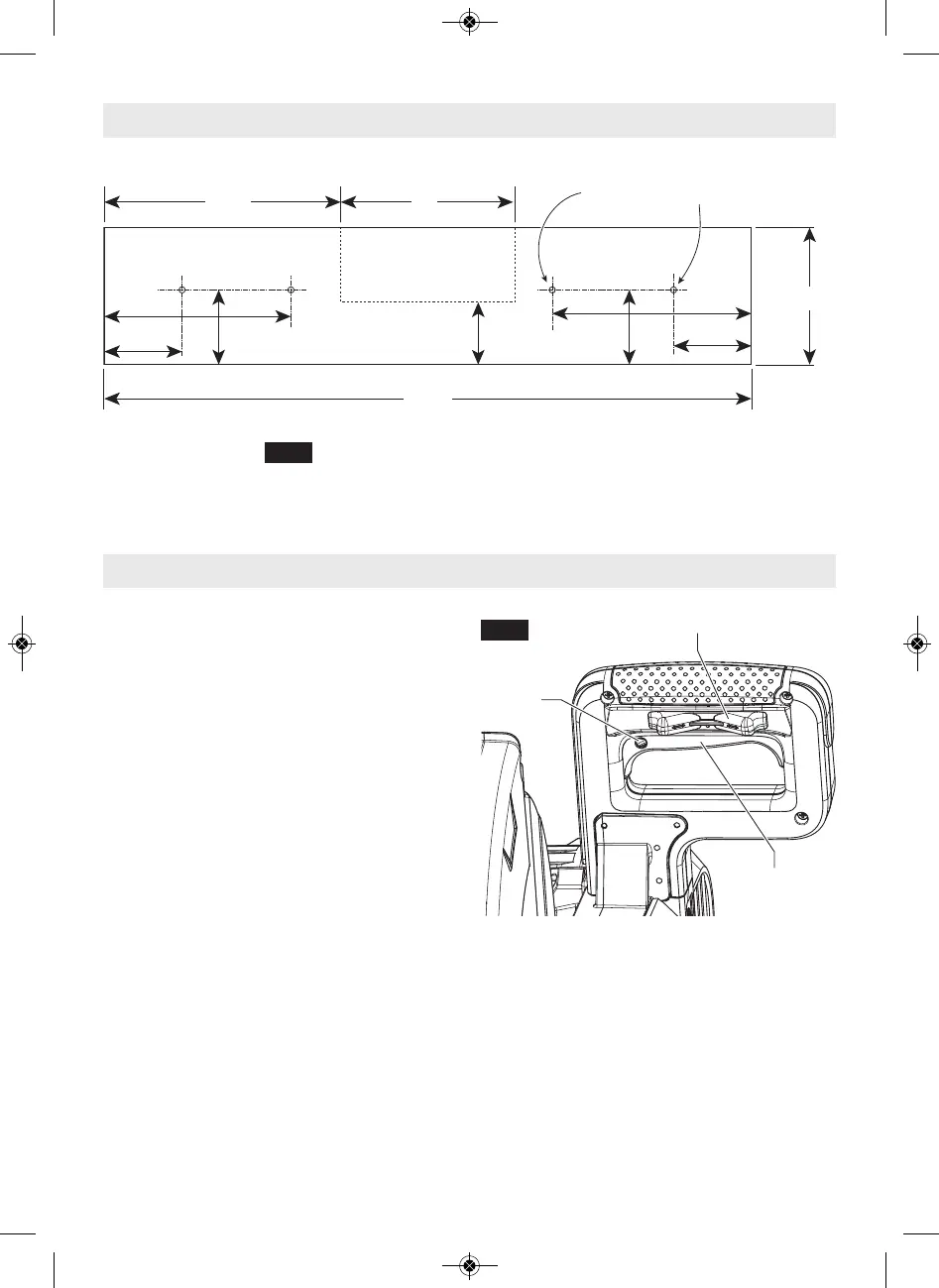

Tall Auxiliary Wood Fence - 3/4" Thick
Fig. 38
