45° Bevel Stop – Adjustment Procedure
To avoid possible injury,
disconnect plug from
power source before performing any assem-
bly, adjustment or repair.
Adjusting 45° Bevel Stop
(Saw Blade 45° to Table)
1. Pull up the bevel lock lever to unlock. Move
the left sliding fence fully to the left.
2. Tilt the saw assembly to the left (counter-
clockwise) until it hits the 45° stop.
3. Place only the combination square’s head
on the saw’s table with its long flat side
resting on the table and its 45° side against
the tilted blade.

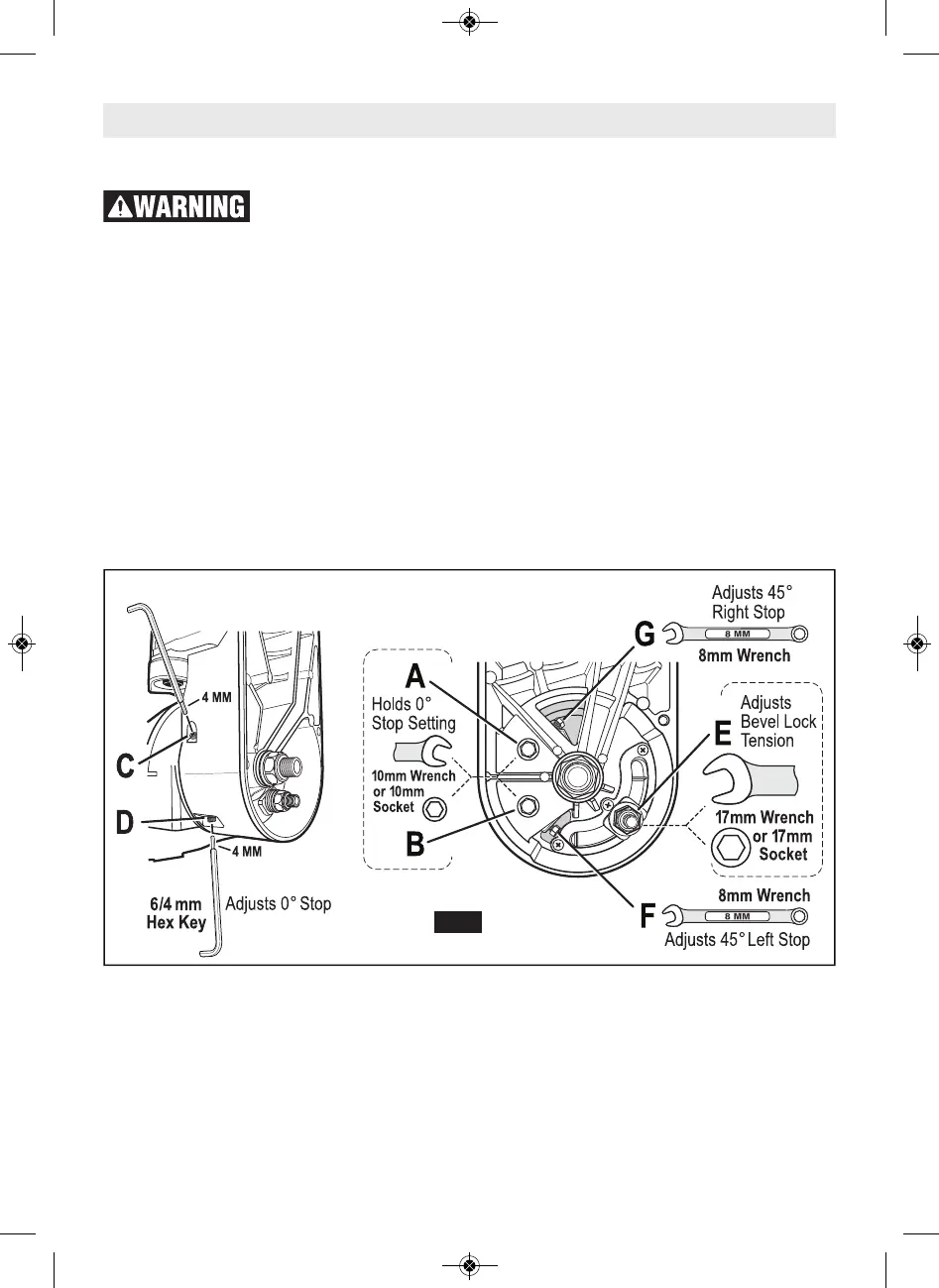

4. Place an 8mm open end wrench on bolt
head “F” (see Figure 25).
5. While turning bolt “F,” watch the blade tilt
– turn “F” until the saw blade plate is in full
contact with the 45° side of the square’s
head (see Figure 24).
6. If needed, adjust bevel scale pointers (item
36 – page 12) to be in line with the bevel
scale’s 45° lines. First, adjust right bevel
pointer; then tilt saw head to the right 45°
stop position (see page 46 – “Bevel Range
2 = 0-45° Right”) and adjust the left bevel
pointer. Tilt the saw head to the 0° position
– both pointers should be on the bevel
scale’s 0° lines.
7. Push down the bevel lock lever to lock at the
desired bevel angle.
