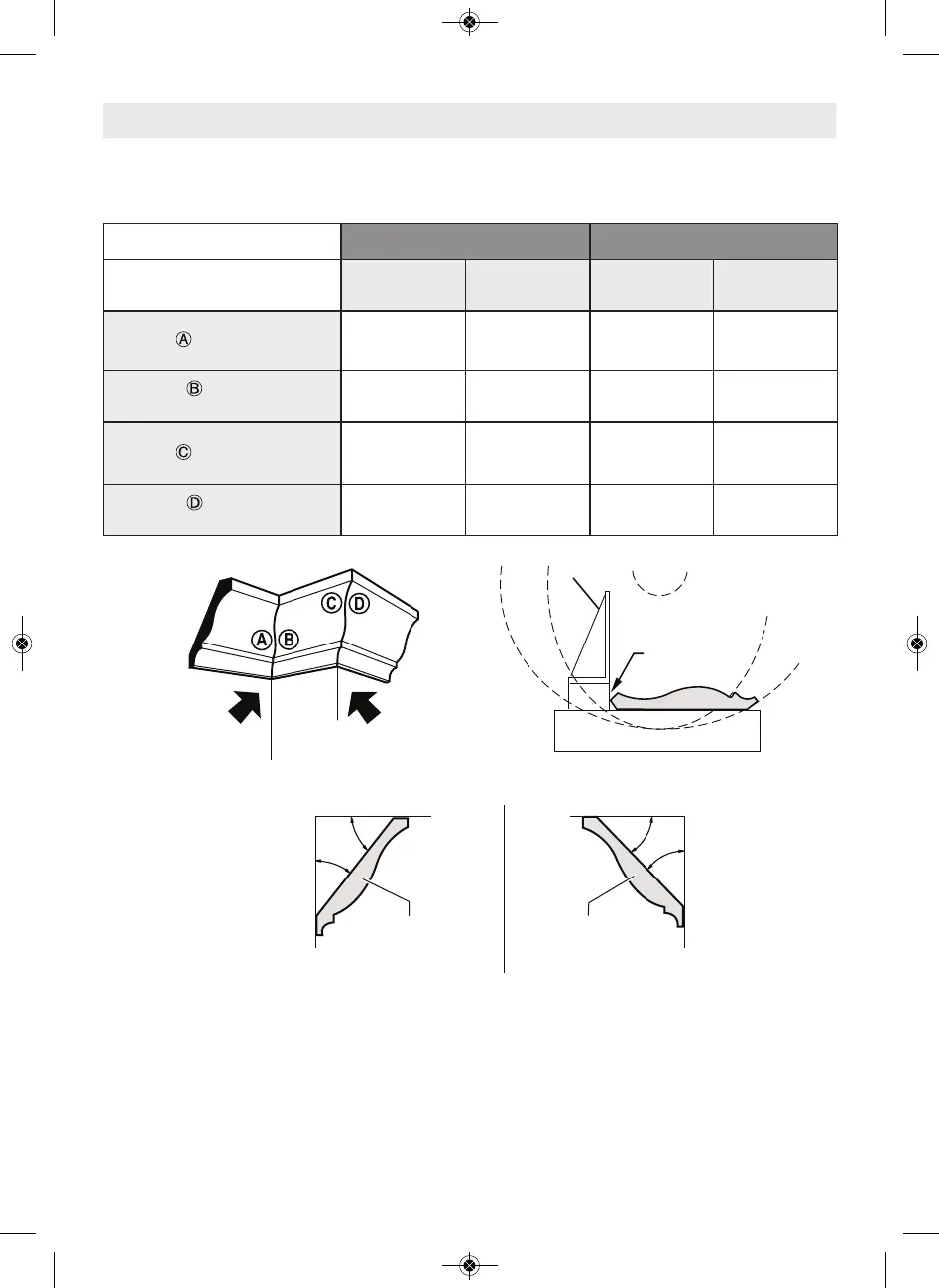

Miter and Bevel Settings for Standard Crown Molding Cuts
(With Molding Flat on Table)
Assumptions: Molding is milled consistently. Corner is exactly 90°.
Molding Spring Angle 38º Molding Spring Angle 45º
Note: Always place top
edge against fence
Miter (Table)
Setting
Bevel (Tilt)
Setting
Miter (Table)
Setting
Bevel (Tilt)
Setting
Inside Corner -
Left end
Use the left end of the cut
31.6º Right 33.9º Left 35.3º Right 30º Left
Right end
Use the right end of the cut
31.6º Left 33.9º Right 35.3º Left 30º Right
Outside Corner -
Left end
Use the left end of the cut
31.6º Left 33.9º Right 35.3º Left 30º Right
Right end
Use the right end of the cut
31.6º Right 33.9º Left 35.3º Right 30º Left
Saw Operations
Fence
Ta ble
Top of Molding
Against Fence
Ceiling
45° Spring Angle
38° Spring Angle
52° 45°
38°
45°
Wall
Ceiling
Wall
45/45° Crown
Molding
38/52° Crown
Molding
Inside
Corner
Outside
Corner
