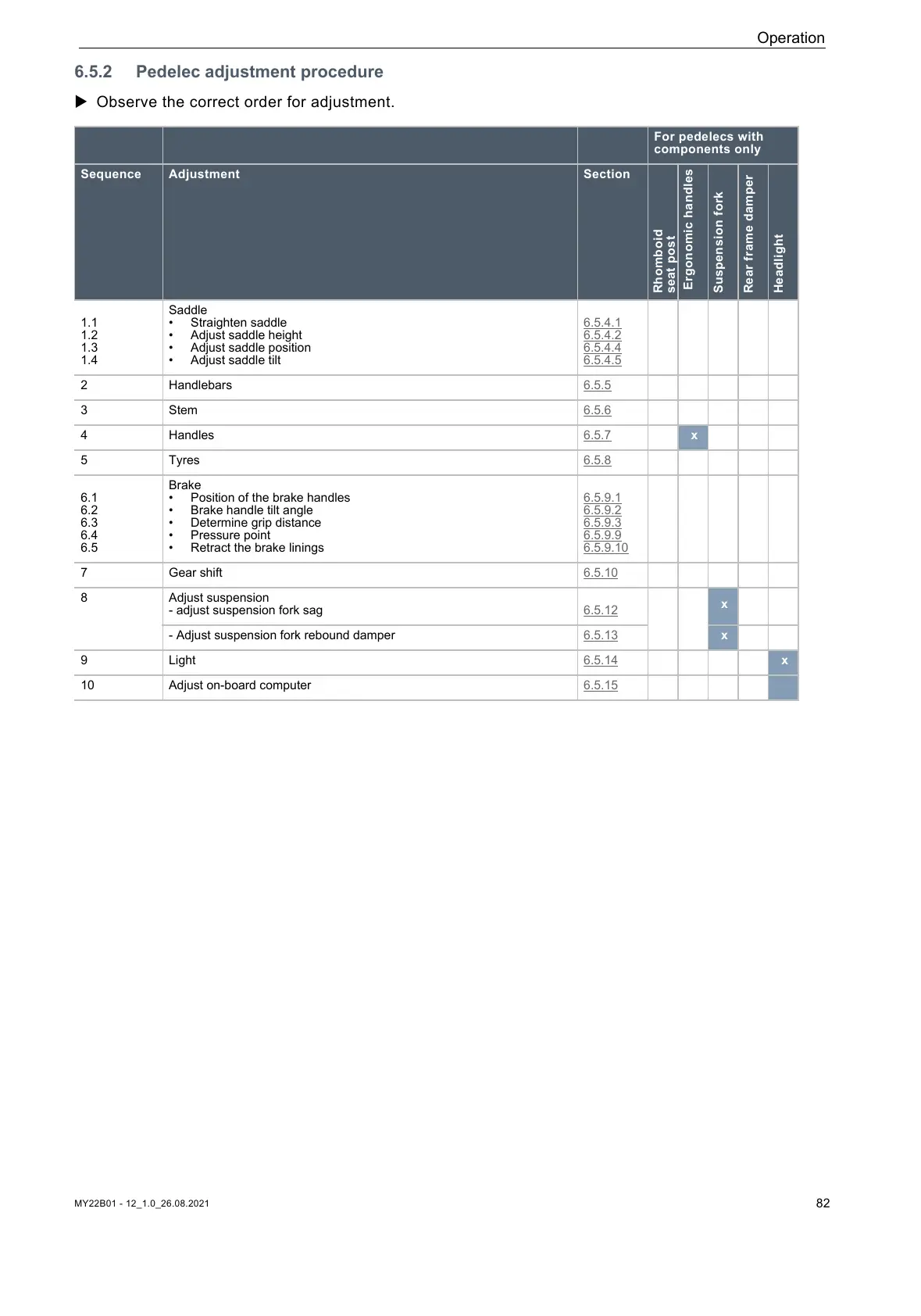

6.5.2 Pedelec adjustment procedure
 Observe the correct order for adjustment.
For pedelecs with
components only
Sequence Adjustment Section
Rhomboid seat post Ergonomic handles Suspension fork Rear frame damper Headlight
1.1
1.2
1.3
1.4
Saddle
• Straighten saddle
• Adjust saddle height
• Adjust saddle position
• Adjust saddle tilt
6.5.4.1
6.5.4.2
6.5.4.4
6.5.4.5
2 Handlebars 6.5.5
3Stem 6.5.6
4 Handles 6.5.7 x
5Tyres 6.5.8
6.1
6.2
6.3
6.4
6.5
Brake
• Position of the brake handles
• Brake handle tilt angle
• Determine grip distance
• Pressure point
• Retract the brake linings
6.5.9.1
6.5.9.2
6.5.9.3
6.5.9.9
6.5.9.10
7 Gear shift 6.5.10
8 Adjust suspension
- adjust suspension fork sag 6.5.12
x
- Adjust suspension fork rebound damper 6.5.13
x
9 Light 6.5.14
x
10 Adjust on-board computer 6.5.15
