Bosch RC35 - Hooking in or Removing the Programming Unit

Logamatic EMS – 6 720 801 387 (2011/05)
15
Installation
3
3.4 Hooking in or removing the programming unit
Hooking in the programming unit
1. Hook the programming unit at the top into the mounting plate in the direction of the arrows.
2. Push the programming unit at the bottom in the direction of the arrow against the mounting plate
until it clicks into place.

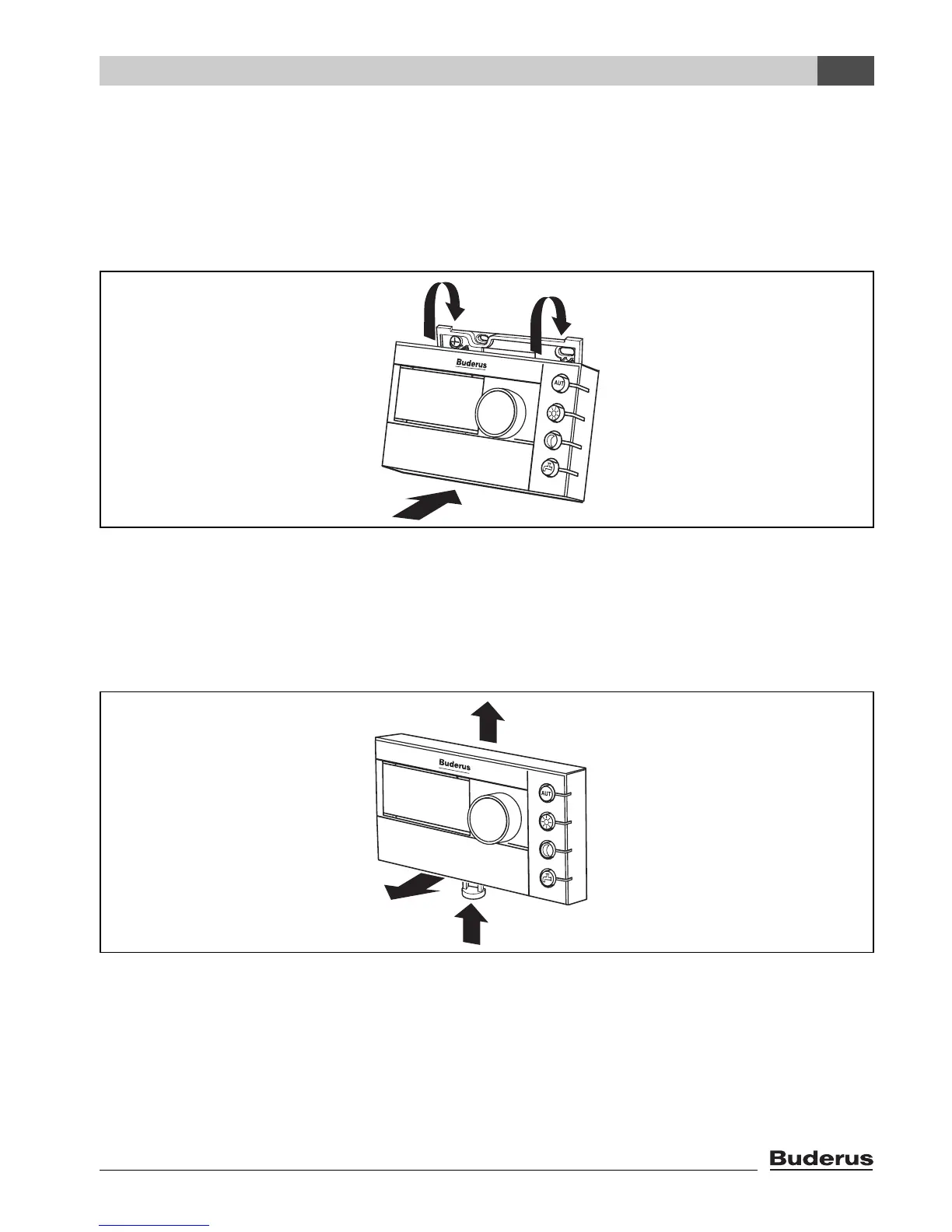

Fig. 4 Hooking in the programming unit
Removing the programming unit
1. Press the key underneath the mounting plate in the direction of the arrow.
2. At the same time pull the programming unit forwards.
3. Remove the programming unit by lifting upward.
Fig. 5 Removing the programming unit
6 720 618 477-04.1RS
2.
1.
6 720 618 477-10.1RS
3.
2.
1.
