61

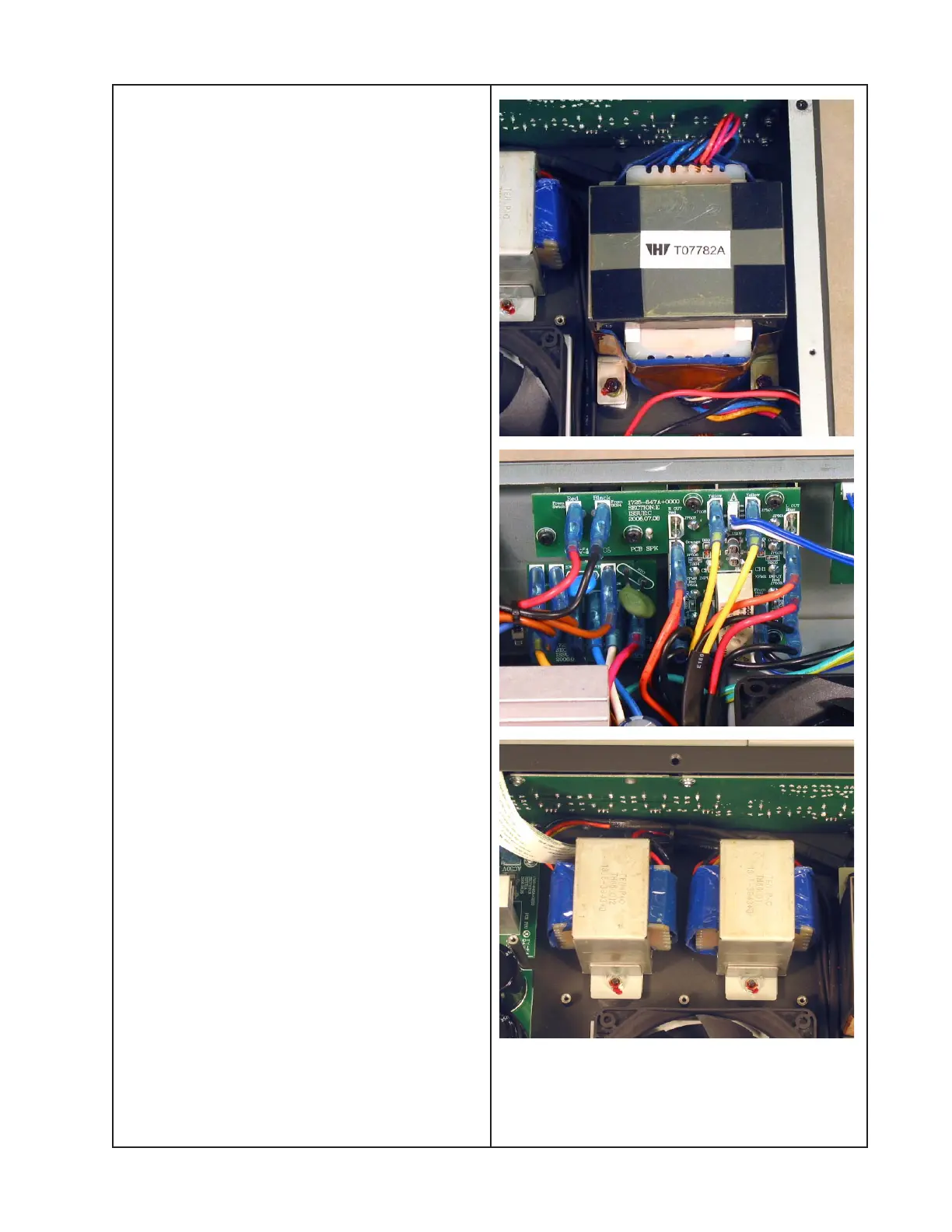

14.3 Make a note of the wiring configuration
and unplug the transfromer primary connec-
tions from the Voltage Select Switch PCB
located at the back of the chassis.
Re-assembly Note: You can refer to the
VOLT PCB board layout diagram for connec-
tion information as well.
14.4 Remove the four nuts that secure the
power transformer to the chassis.
Lift out the transformer.
15. 70/100V Transformer Removal
15.1 Perform procedure 1.
15.2 Make a note of the wiring configuration
and unplug the transformer connections
from the SPKR PCB, which is located at the
back of the chassis.
15.3 Remove the two nuts that secure the
power transformer to the chassis. Lift out the
transformer.
DISASSEMBLY PROCEDURES
