Service Manual 04/2010 Rev.B

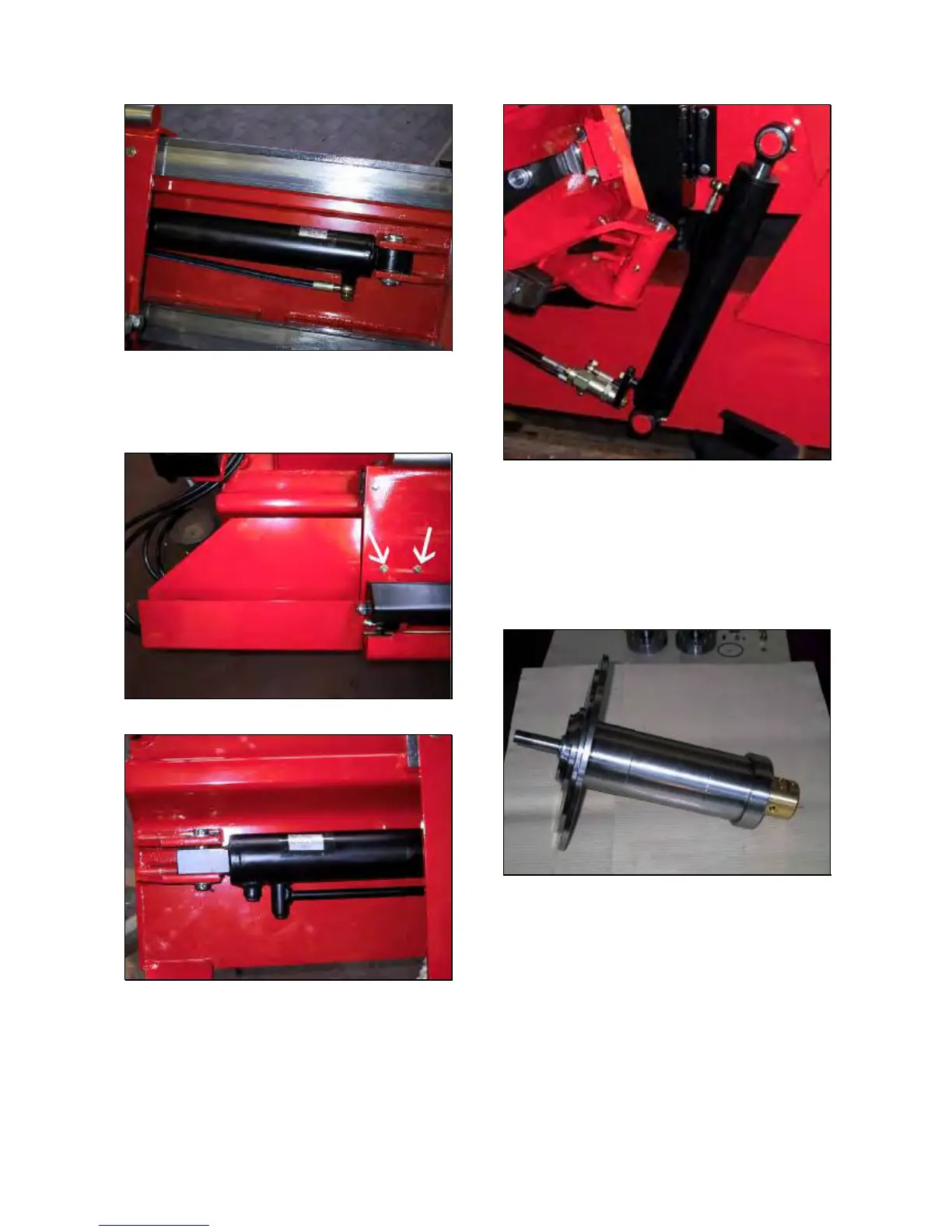

Fig.128

 KING 5600 SADDLE CYLINDER: To access

to this cylinder (Fig.130) remove the red

hoses protection (Fig.129).

Fig.129

Fig.130

 CHUCK ARM CYLINDER: The access to this

cylinder does not require any dismounting of

any protection (Fig.131).

Fig.131

 CHUCK CYLINDER: This cylinder (Fig.132) is

included into the chuck arm and its access is

the most complicated one because it requires

the dismounting of the gear oil tank, the worm

screw assy and chuck components. So far the

chuck cylinder has required the replacement

of the seals only.

Fig.132

 TOOL HOLDER CYLINDER: The access to

this cylinder (Fig.135), requires the

dismounting of the cabinet-tool holder cabinet

(Fig. 133 and 134).

BOXER KING 5600 - Page 76
