Video entry control
Mitho can be connected directly to the 2-wire X1 video entry control or to the system 300, guaranteeing
all the functions typical of a BPT video entry control appliance, including the possibility to have more than
one intercommunicating monitor per apartment.

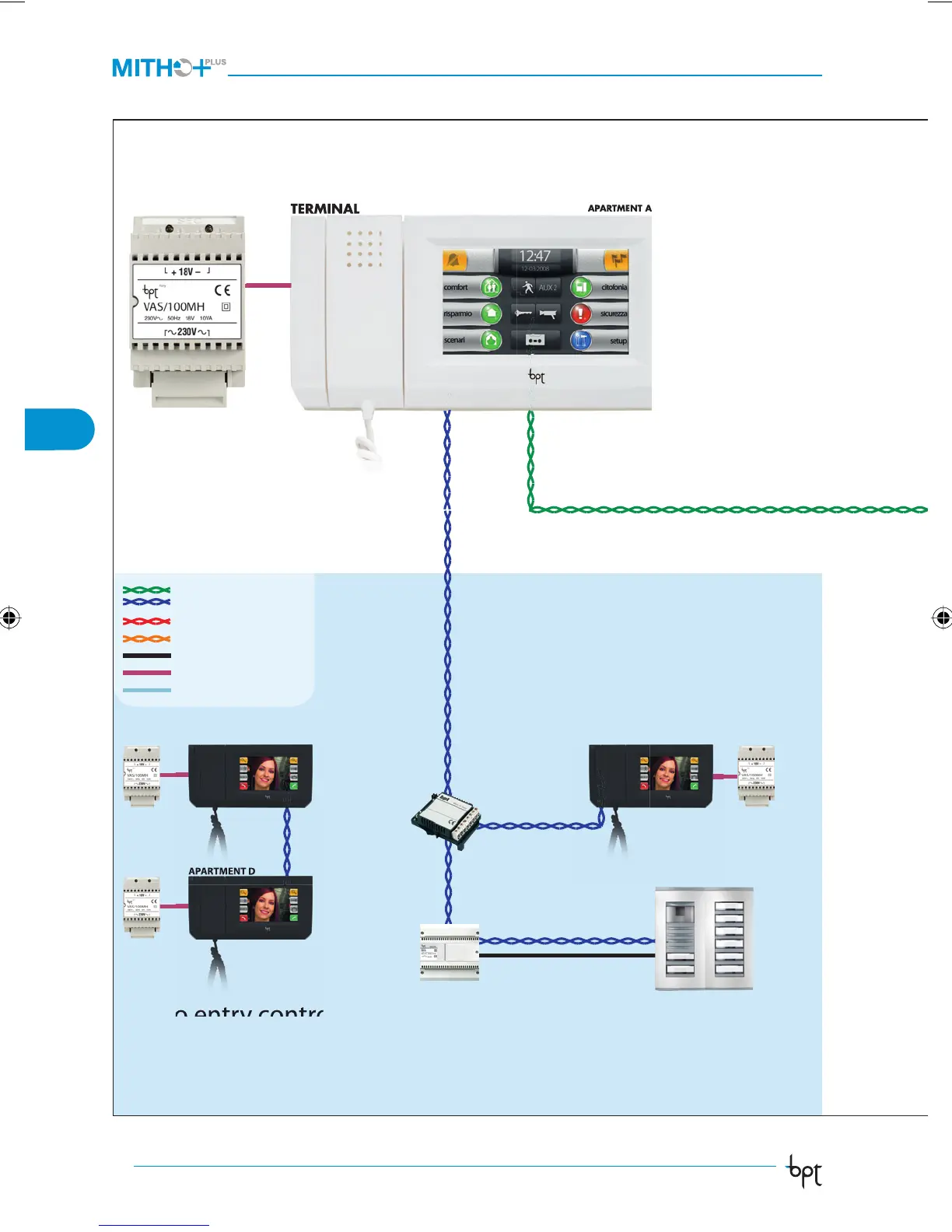

APARTMENT A
APARTMENT B
APARTMENT C
APARTMENT D
2-WIRE X1 VIDEO ENTRY
CONTROL SYSTEM UNIT
ENTRY
PANEL
VIDEO ENTRY CON-
TROL DISTRIBUTOR
TERMINAL
Multimaster bus
2-wire bus X1 video entry control system bus
Entry panel power supply
Automations busv
Anti-intrusion bus
Twisted pair
Local power supply
5 wires
LOCAL POWER
SUPPLIER
