B Series Degreaser Operation
Rev G Page 79

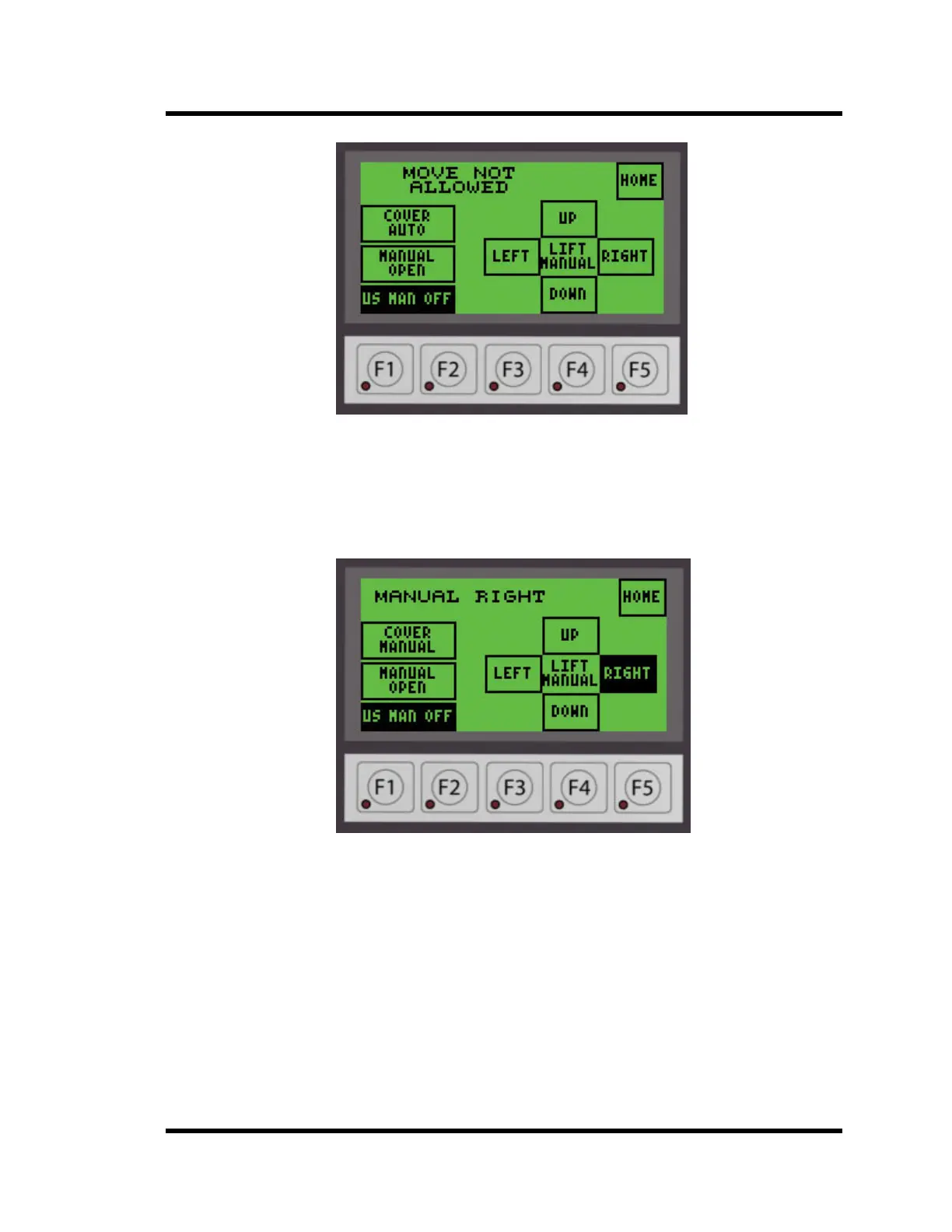

Figure 4-23 Move Not Allowed Screen
4.5.3.4 Moving Right
Push the RIGHT button on the operator interface. The lift will move horizontally to the
right as long as the switch is held in the RIGHT position until it reaches the end of its
stroke. The display will show MANUAL RIGHT as shown in Figure 4-24 below.
Figure 4-24 Manual Mode Right Screen
The lift will not move horizontally if the basket is below the Vapor Zone switch. The
display will show MOVE NOT ALLOWED as shown in Figure 4-23 above.
4.5.4 Auto Mode
The AUTO Mode is on whenever the lift is not being moved in Manual Mode.
4.5.4.1 Cycle Starting Conditions
The following conditions must be met before starting a cycle: The lift must be at the
upper limit and over the Boiling Sump, the cover must be open, there must be no external
interlocks, and the CYCLE STOP switch must be fully out. The display will show LIFT
NOT READY shown in Figure 4-25 below.
