Braun Infusomat Space Service Manual

System Overview
1
Infusomat® Space 6.0 1 - 15EN

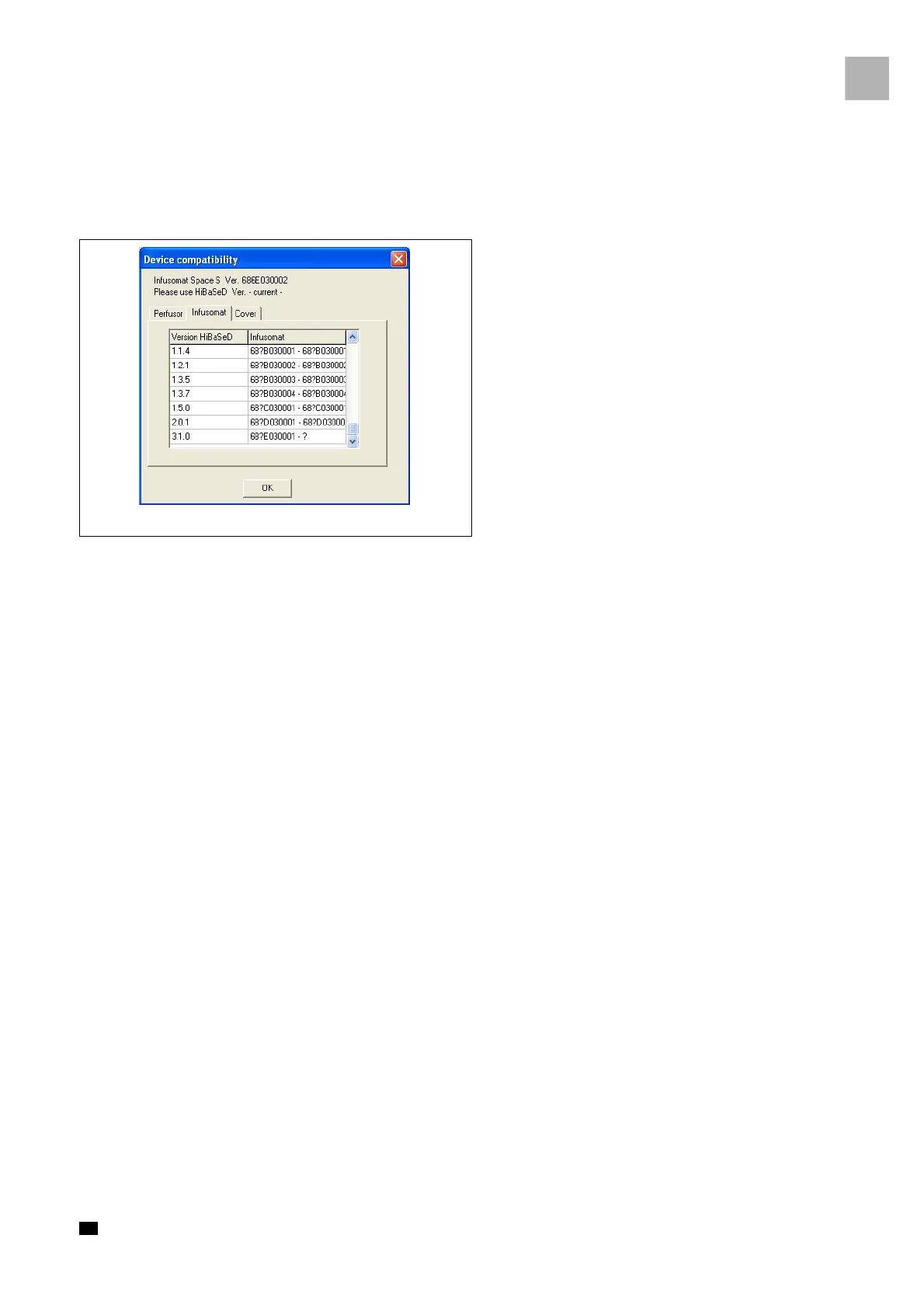

Compatibility List
1. Open the “Unit - Compatibility“ window via
Help ➨ Compat-
ibility
. This window displays the compatibility of the Hi-
BaSeD-version and the uni
t software version.
2. Close the window by clicking “OK”.
Quitting the Service Program
1. Exit the Service Program via
File ➨ Exit .
2. Disconnect a power supply which might be connected from
the unit
.
3. Switch off the unit.
4. Remove the battery module.
5. The device can be restarted after appr. 10 seconds.
Fig.: 1 - 17

Braun Infusomat Space Specifications

General

Type	Infusion Pump
Power Supply	AC/DC adapter, rechargeable battery
Display	Color graphic display
Alarms	Audible and visual alarms
Flow Rate Accuracy	±5%
Occlusion Pressure	Adjustable
VTBI Range	0.1 – 9999 ml
KVO Rate	0.1 – 5 ml/h (adjustable)
Battery	Lithium-ion
Operating Modes	Continuous
Certifications	CE, ISO 13485, IEC 60601-1
