Braun Infusomat Space Service Manual

Disassembly / Assembly
3
Infusomat® Space 6.0 3 - 31EN
3.12 Operating Unit
Designation Order No.
Operating unit ISPS, cpl. . . . . . . . . . . . . . . . . . . . . . . . . 3452 1470
Operating unit ISPS, cpl., US . . . .
. . . . . . . . . . . . 3452 1470U
LC display SP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3452 0988
Metal front sheet, Outsert ISPS, version II. . . . . . . . . . 3452 1487
Metal front sheet, Outsert ISPS, version II, US. 3452 1487U
Axle ISP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3452 1461
(incl. hinge covers and hinge spring)
Screws
(see „Service Parts and Screw Kit“ ➨ pg. 3 - 7)
Note
Please pay attention to the corresponding notes during assembly
and installation (see „Operating Unit“ ➨ pg. 3 - 41).
Assembly / Disassembly
1. Push the right and left connector lock (Fig.: 3 - 29 / Item 2)
on the processor PCB carefully to the rear.
2. Disconnect the operating unit connection cable (Fig.: 3 - 29 /
Item 1) from the processor PCB.

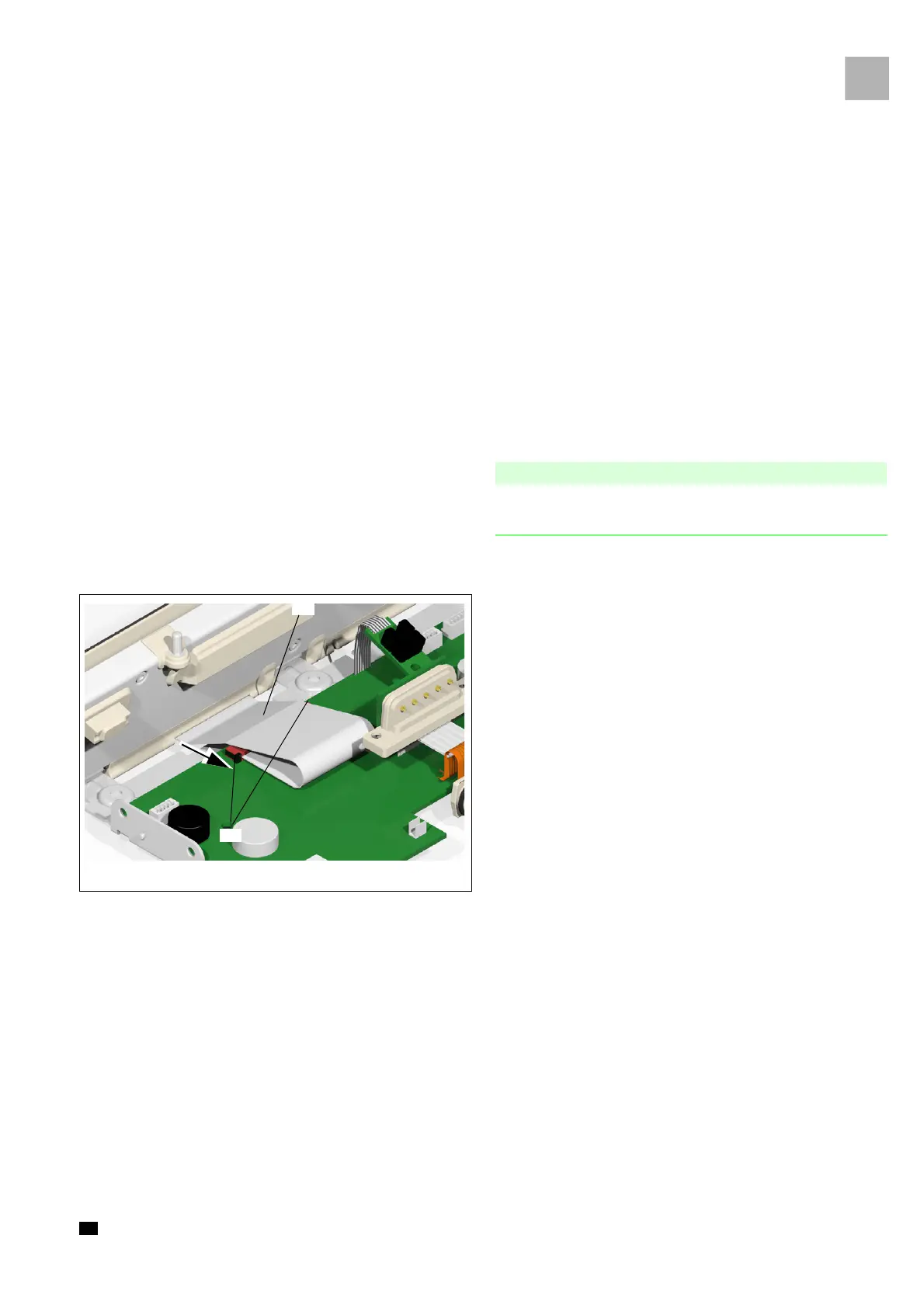

Fig.: 3 - 29
Legend of fig. 3 - 29:
Item Designation
1 Operating unit connection cable
2 Connector lock
2
1
