Braun Infusomat Space Service Manual

Disassembly / Assembly
3
Infusomat® Space 6.0 3 - 29EN
3.11 Housing Front Panel
Designation Order No.
Membrane ISP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3452 1356
Pressure sensor ISP . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3452 1372
Air inline sensor ISP . . . . . . . . . . . . . . . . . . . . . . . . . . . 3452 1380
Ribbon tape air inline sensor ISP (10 pieces). . . . . . . . 3477 4356
Safety clamp ISPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3452 1399
Front frame ISPS, cpl. . . . . . . . . . . . . . . . . . . . . . . . . . . 3452 1364
Screws
(see „Service Parts and Screw Kit“ ➨ pg. 3 - 7)
Instructions on Replacing
the Air Inline Sensor
Two versions of the air inline sensor exist.
If the old version of the
air inline sensor is replaced with the new version, a new disposa-
ble article table must be imported.
1. Before installing the new air inline sensor, check its serial
nu
mber (Fig.: 3 - 27 / Item 1).
New versions of the air inline sensor bear the
serial number
248223 and higher.
Note
Do not confuse the serial number of the new air inline sensor with
the serial number of the spare part (Fig.: 3 - 27 / Item 2).
2. After completing installation, compare the version of the air
inline sensor with the stored disp
osable article table and im-
port the new table, if necessary.
(see „Rework when Replacing the Air Inline Sensor“ ➨
pg. 3 - 52)

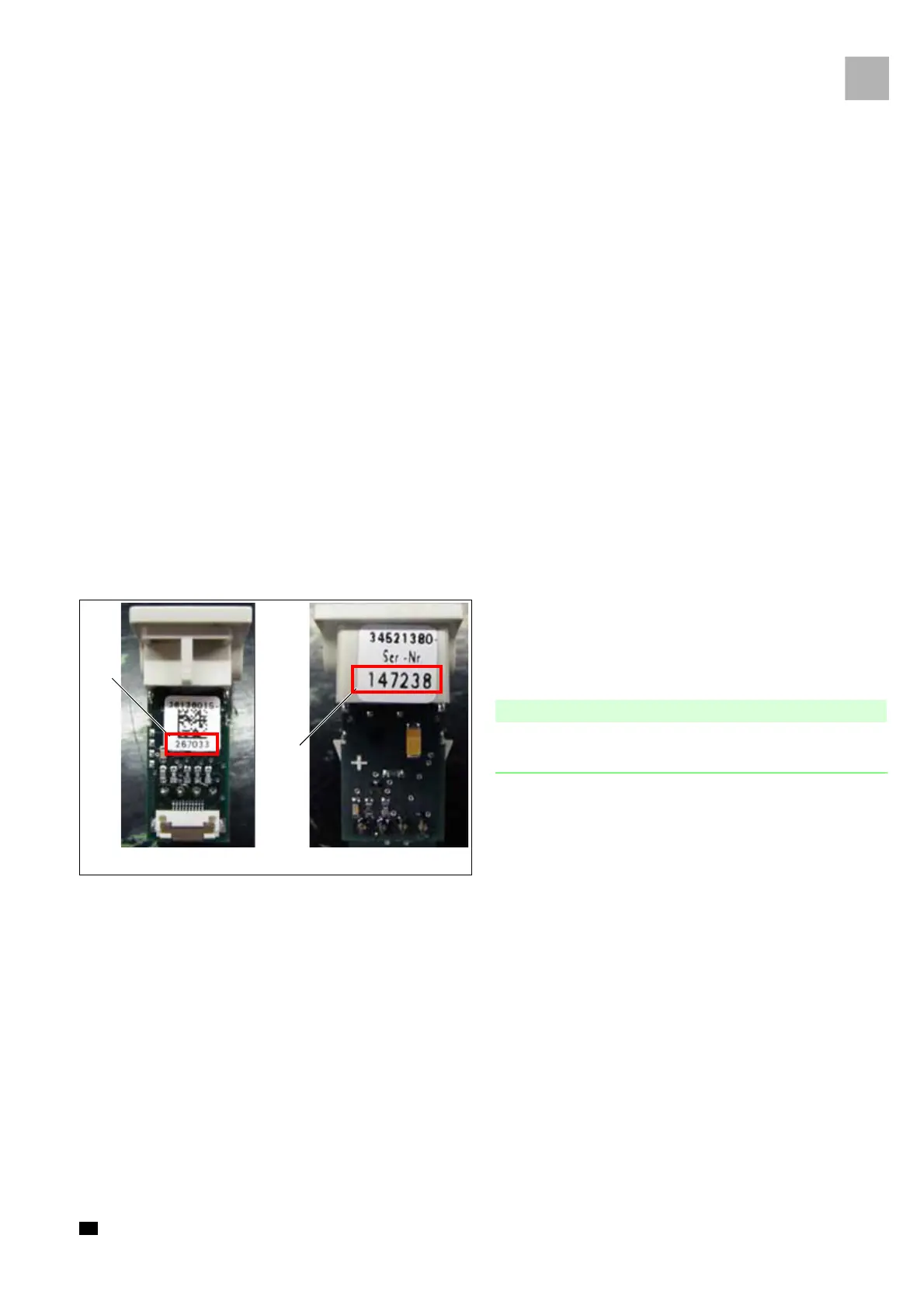

Fig.: 3 - 27
Legend of fig. 3 - 27:
1 Serial number of the air inline sensor
2 Serial number of the spare part
1
2
