Braun Infusomat Space Service Manual

Disassembly / Assembly
3
3 - 30 Infusomat® Space 6.0 EN
Disassembly
1. Press the membrane out of the housing front panel.
2. Unscrew two screws and remove the pressure sensor, up-
stream from the housing front panel.
3. Unscrew two screws and remove the pressure sensor, down-
stream from the housing front panel.
4. Unlock two lugs of the air inline sensor
carefully and remove
the air inline sensor from the housing front panel.
5. Open the safety clamp with the operating lever
and engage.
6. Unscrew two screws and remove the safety clamp from the
housing front pane
l.
Note
The safety clamp must not be disassembled further.
Note
Pay attention to the dummy slide ISPS when dismantling the safe-
ty clamp. This slide closes one housing opening on the left-hand
side of the safety clamp.

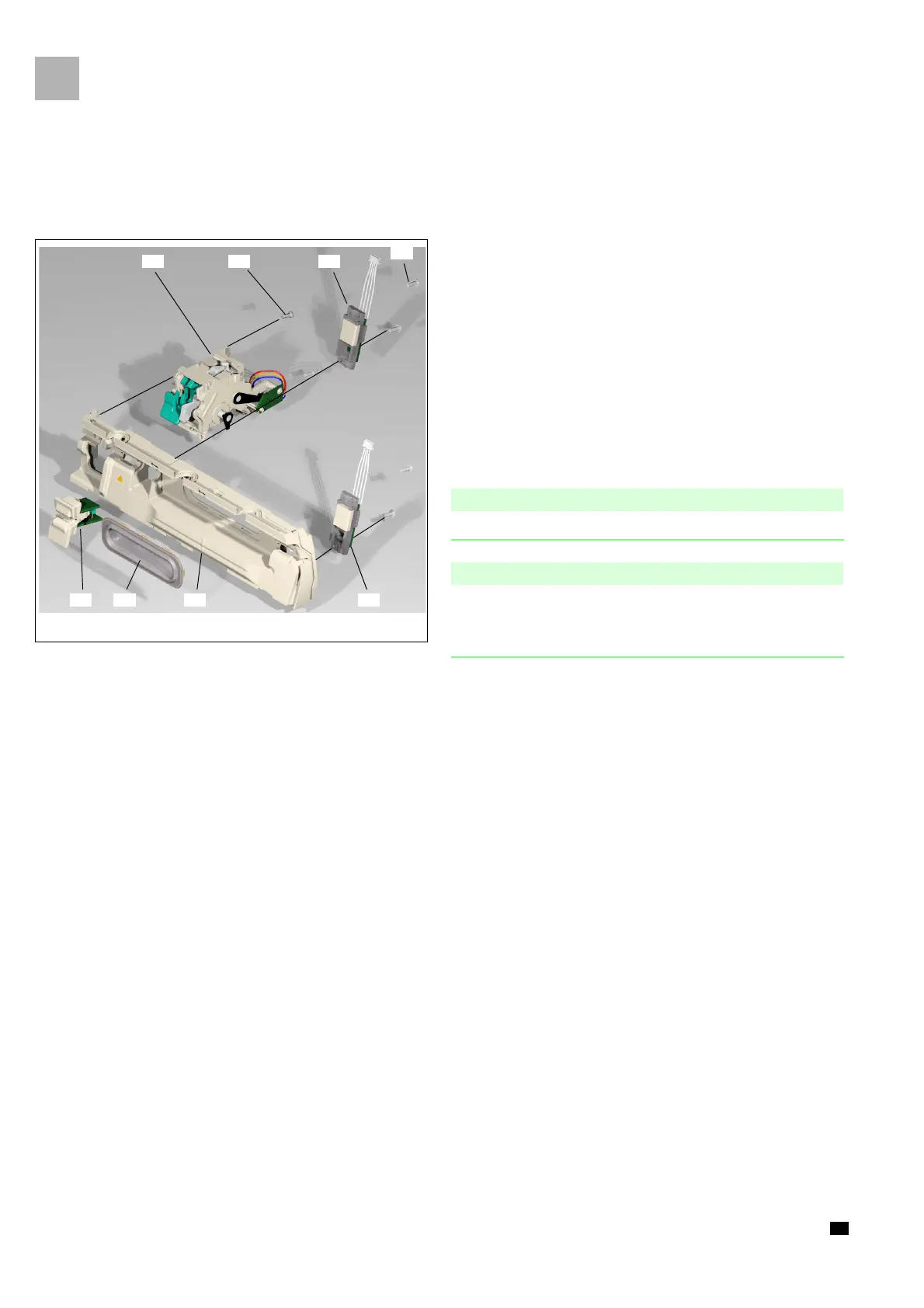

Fig.: 3 - 28
Legend of fig. 3 - 28:
Item Designation
1 Safety clamp
2 Screw DELTA PT 22x8 WN 5451 TORX plus 6IP
3 Pressure sensor, downstream
4 Screw DELTA PT 25x7 WN 5451 TORX plus 8IP
5 Pressure sensor, upstream
6 Front frame
7 Membrane
8 Air inline sensor
1 2 3
4
5678

Braun Infusomat Space Specifications

General

Type	Infusion Pump
Power Supply	AC/DC adapter, rechargeable battery
Display	Color graphic display
Alarms	Audible and visual alarms
Flow Rate Accuracy	±5%
Occlusion Pressure	Adjustable
VTBI Range	0.1 – 9999 ml
KVO Rate	0.1 – 5 ml/h (adjustable)
Battery	Lithium-ion
Operating Modes	Continuous
Certifications	CE, ISO 13485, IEC 60601-1
