Disassembly / Assembly
3
Infusomat® Space 6.0 3 - 27EN
4. Unscrew one screw (Fig.: 3 - 25 / Item 1), turn the pump drive
motor (Fig.: 3 - 25 / Item 2) clockwise out of the holder and
remove it from the pump frame.
5. Move the lock bolt drive by hand in the middle position.
6. Unscrew two screws (Fig.: 3 - 24 / Item 2) and pull the lock
bolt drive (Fi
g.: 3 - 24 / Item 4) off the lock bolt tappet
(Fig.: 3 - 24 / Item 1).
Note
The lock bolt drive is slightly engaged when installed. When dis-
mantling the drive make sure that the toothed wheels do
not rub
along the metal edges of the inner frame as the toothed wheels
can easily be damaged. The toothed wheels are very easily dam-
aged.
7. Lift the claw on the right side and push it to the left until the
guide rivet is exactly positioned in the mounting hole of the
lock bolt.
8. Lift the lock bolt over the guide rivet of the inner frame.

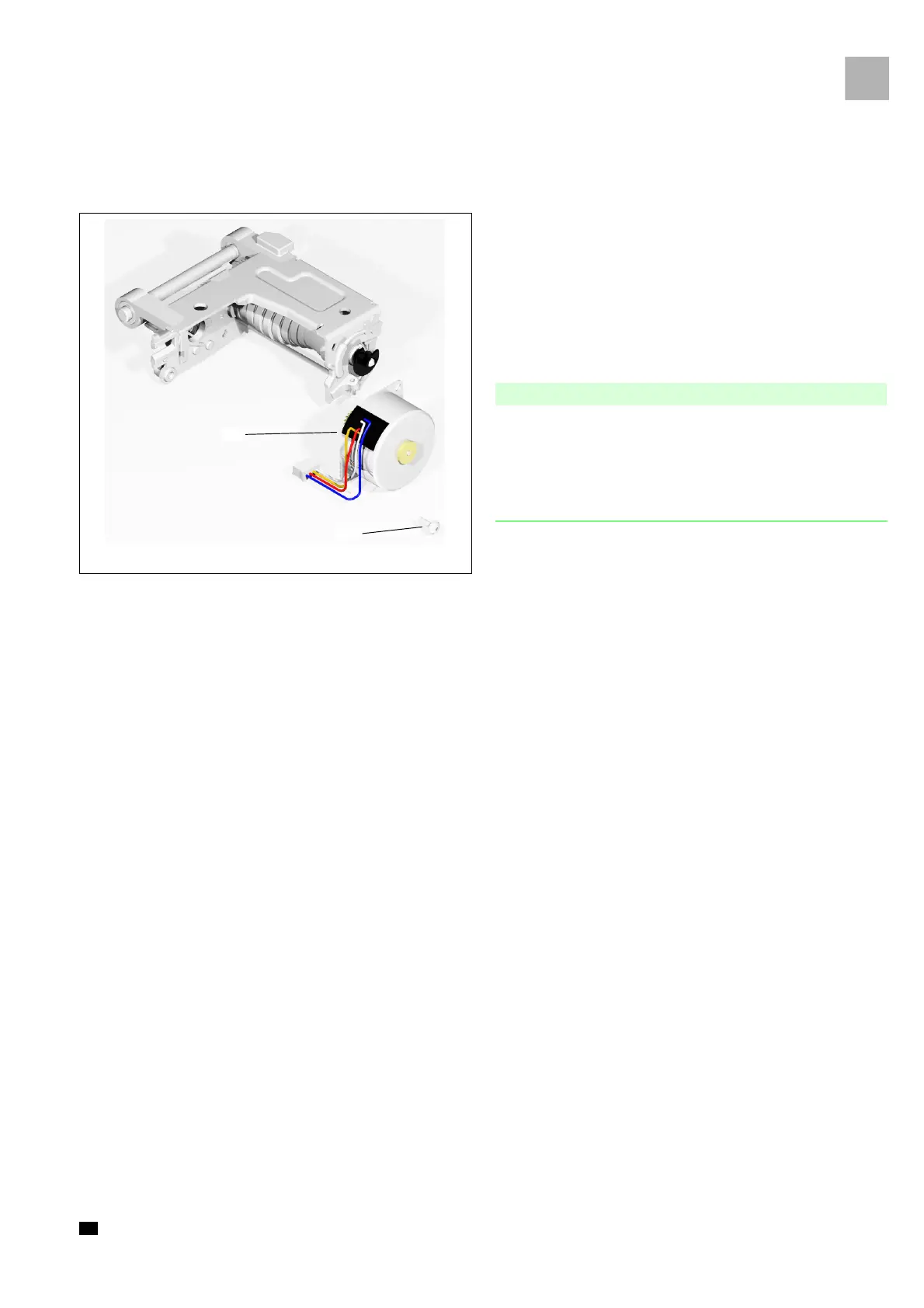

Fig.: 3 - 25
Legend of fig. 3 - 25:
Item Designation
1 Screw DELTA PT 30x8 WN 5452 TORX plus 10IP
2 Pump drive motor
1
2

Braun Infusomat Space Specifications

General

Type	Infusion Pump
Power Supply	AC/DC adapter, rechargeable battery
Display	Color graphic display
Alarms	Audible and visual alarms
Flow Rate Accuracy	±5%
Occlusion Pressure	Adjustable
VTBI Range	0.1 – 9999 ml
KVO Rate	0.1 – 5 ml/h (adjustable)
Battery	Lithium-ion
Operating Modes	Continuous
Certifications	CE, ISO 13485, IEC 60601-1
