37

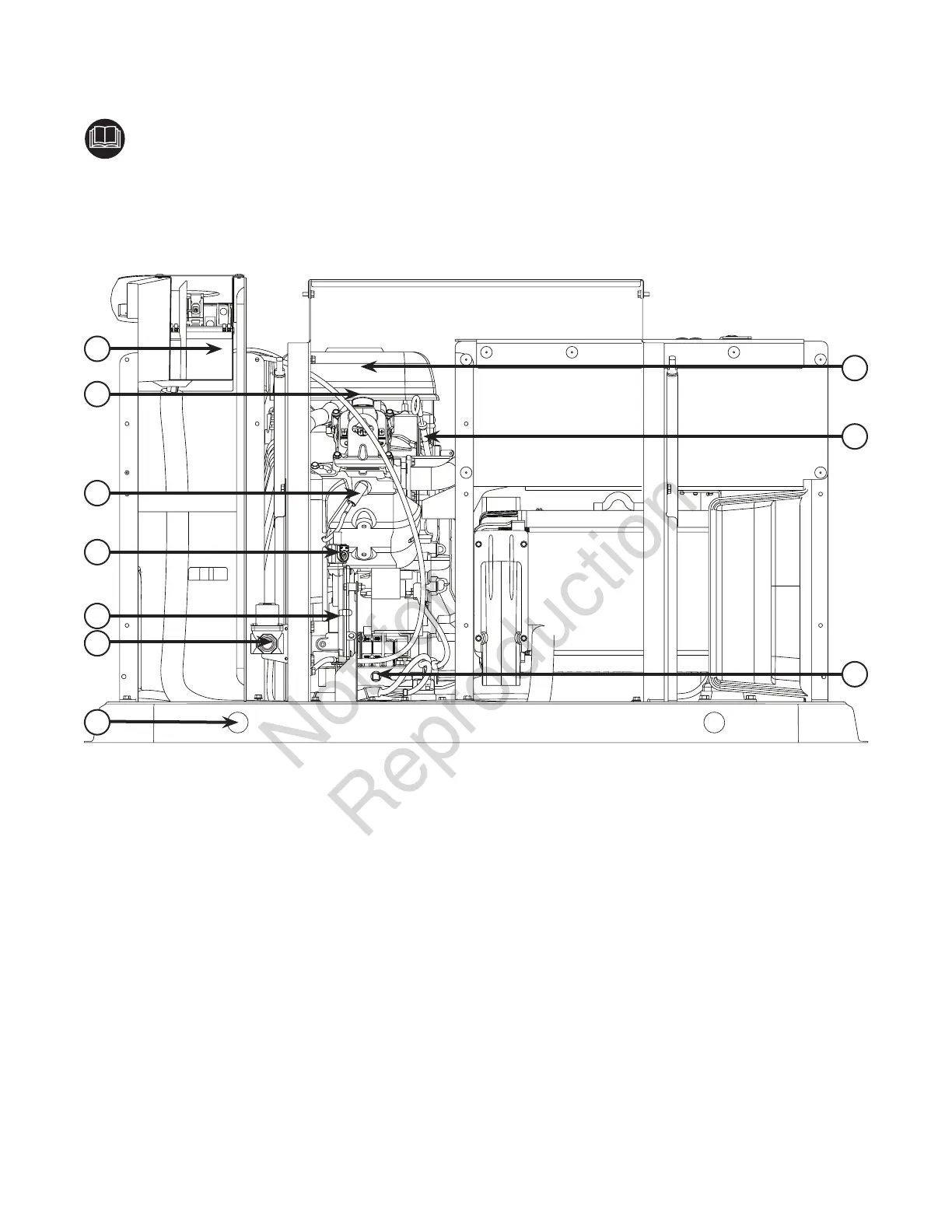

17kW and 20kW Generator (Back View)
Read this Operator’s Manual and Important Safety Instructions before operating your generator.
Compare the illustrations with your generator to familiarize yourself with the locations of various controls
and adjustments. Save this manual for future reference.
Generator is shown with roof and access covers
removed for clarity.
A - Lifting Holes — Provided at each corner for lifting
generator.
B - Fuel Solenoid — Automatically opens and closes
to supply fuel to unit when needed.
C - Fuel Regulator — Controls fuel flow to engine for
proper operation.
D - Fuel Selector Valve — Used to select proper fuel
type (LP or NG).
E - Spark Plug — A device in the cylinder head of the
engine that ignites the fuel mixture by means of an
electric spark.
F - Oil Fill Cap — Location for adding oil to engine.
G - Electrical Field Wiring Inlet — Wires to and from
generator are centered in this location.
H - Air Cleaner — Uses a dry type filter element to
protect engine by filtering dust and debris out of
intake air.
J - Engine Oil Dipstick — Allows user to check engine
oil level easily.
K - Oil Heater with Oil Drain Hose — Provided to
warm engine oil to promote easy starting in cold
climates.
A
B
C
D
E
F
G
H
J
K
