36
Controls

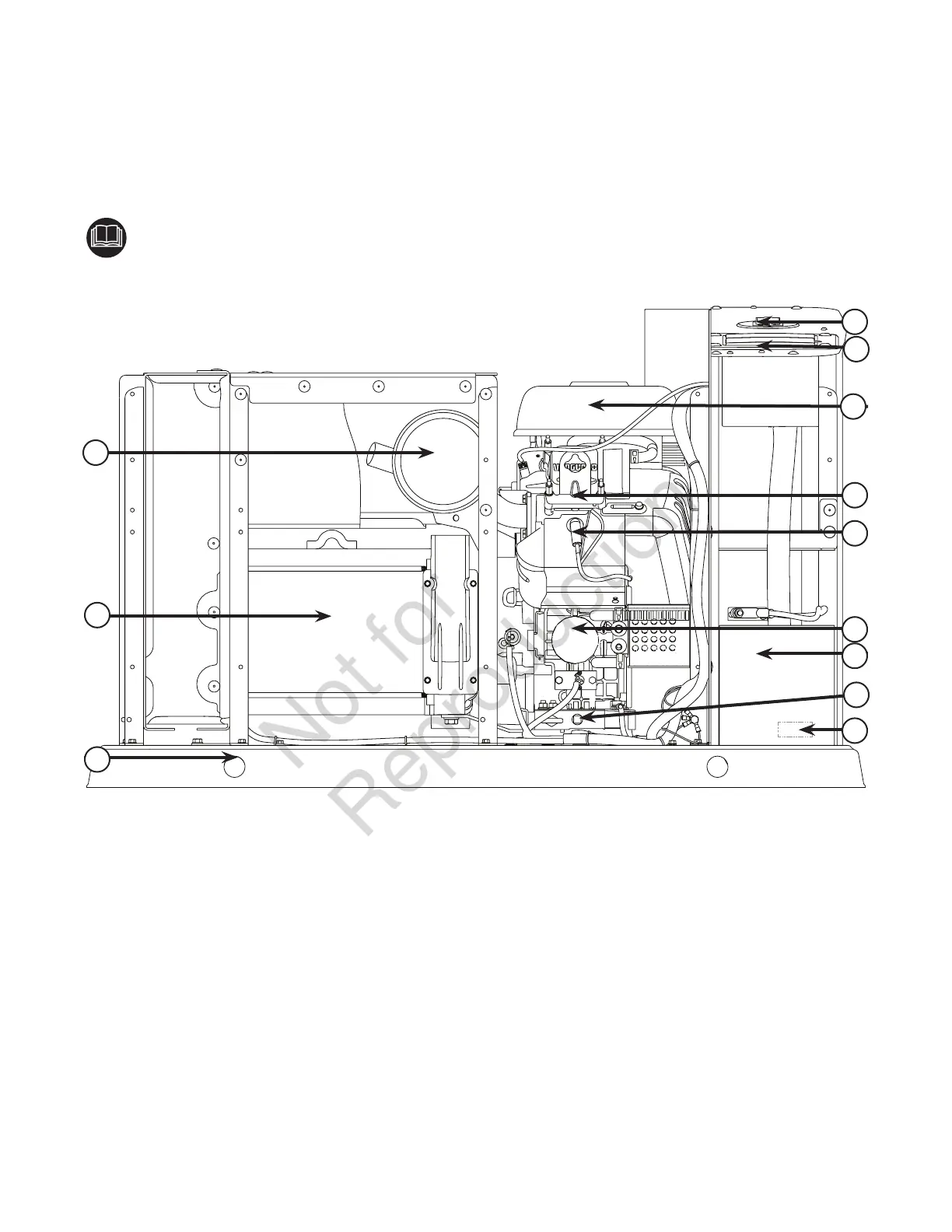

17kW and 20kW Generator (Front View)
Read this Operator’s Manual and Important Safety Instructions before operating your generator.
Compare the illustrations with your generator to familiarize yourself with the locations of various controls
and adjustments. Save this manual for future reference.
Generator is shown with roof and access covers
removed for clarity.
A - Lifting Holes — Provided at each corner for lifting
generator.
B - Alternator — An electrical machine that generates
an alternating current
C - Muffler — High-performance muffler lowers engine
noise to comply with most residential codes.
D - Circuit Breaker — Protects the system from shorts
and other over-current conditions.
E - Control Board — Used for generator operation
control, menu start-up, and informational display
functions.
F - Air Cleaner — Uses a dry type filter element to
protect engine by filtering dust and debris out of
intake air.
G - Engine Label — Identifies engine model and type
H - Spark Plug — A device in the cylinder head of the
engine that ignites the fuel mixture by means of an
electric spark.
J - Oil Filter — Filters engine oil to prolong generator
life.
K - Battery (installer supplied) — 12 Volt DC, lead
acid, automotive style battery provides power to
start the engine.
L - Oil Heater with Oil Drain Hose — Provided to
facilitate oil changing.
M - Generator Data Label — Identifies generator
model number and serial number. Located inside
battery access compartment.
A
B
C
D
E
F
G
H
J
K
L
M
Operator’s Section
