Access Panels
The generator is equipped with an enclosure that has

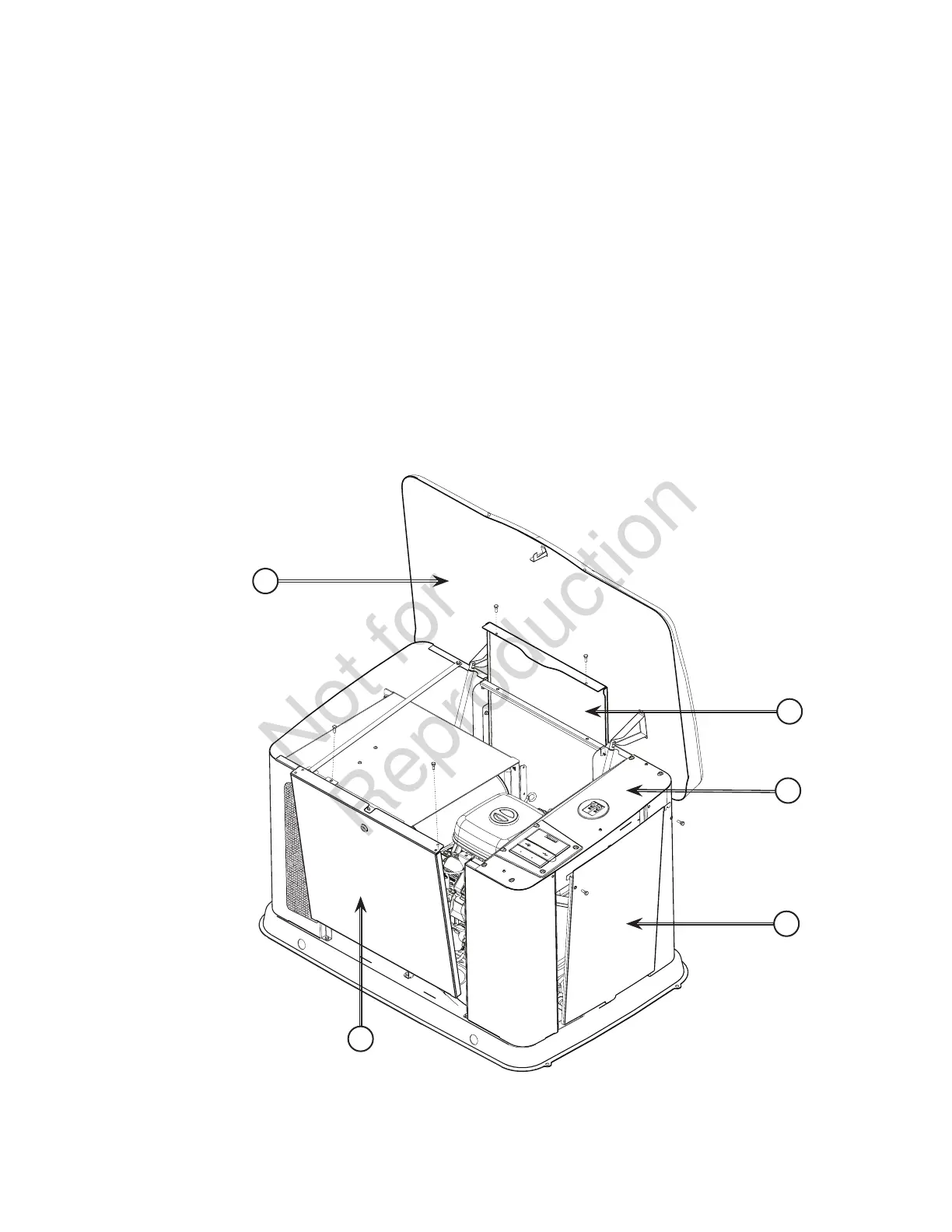

several access panels, as shown.
The access panels and the components located
behind them are listed below:
A - Roof (Control Panel, air filter, oil dipstick, and circuit
breaker)
B - Front Access Panel (oil drain and oil filter)
C - Battery Panel (battery and generator data label)
D - Rear Access Panel (fuel regulator, fuel selector, and
engine starter)
E - Control Panel Cover (field wiring and control wires)
Each generator is shipped with a set of identical keys.
These keys fit in the lock on the front removable panel.
The roof must be unlocked in order for it to open.
