D-2

GF Series

Installation and Operation Manual

X-TMF-GF Series-MFC-eng

Part Number: 541B137AAG

March, 2010

Section D Mics. Drawings

Figure D-3 Analog 9-Pin Connector (M)

PIN Connection

1 Valve Control

2 Output (0-5 Vdc)

3 +15 Vdc

4 Power Common

5 -15 Vdc

6 Setpoint (0-5 Vdc)

7 Signal Common

8 RS485 DX+

9 RS485 DX-

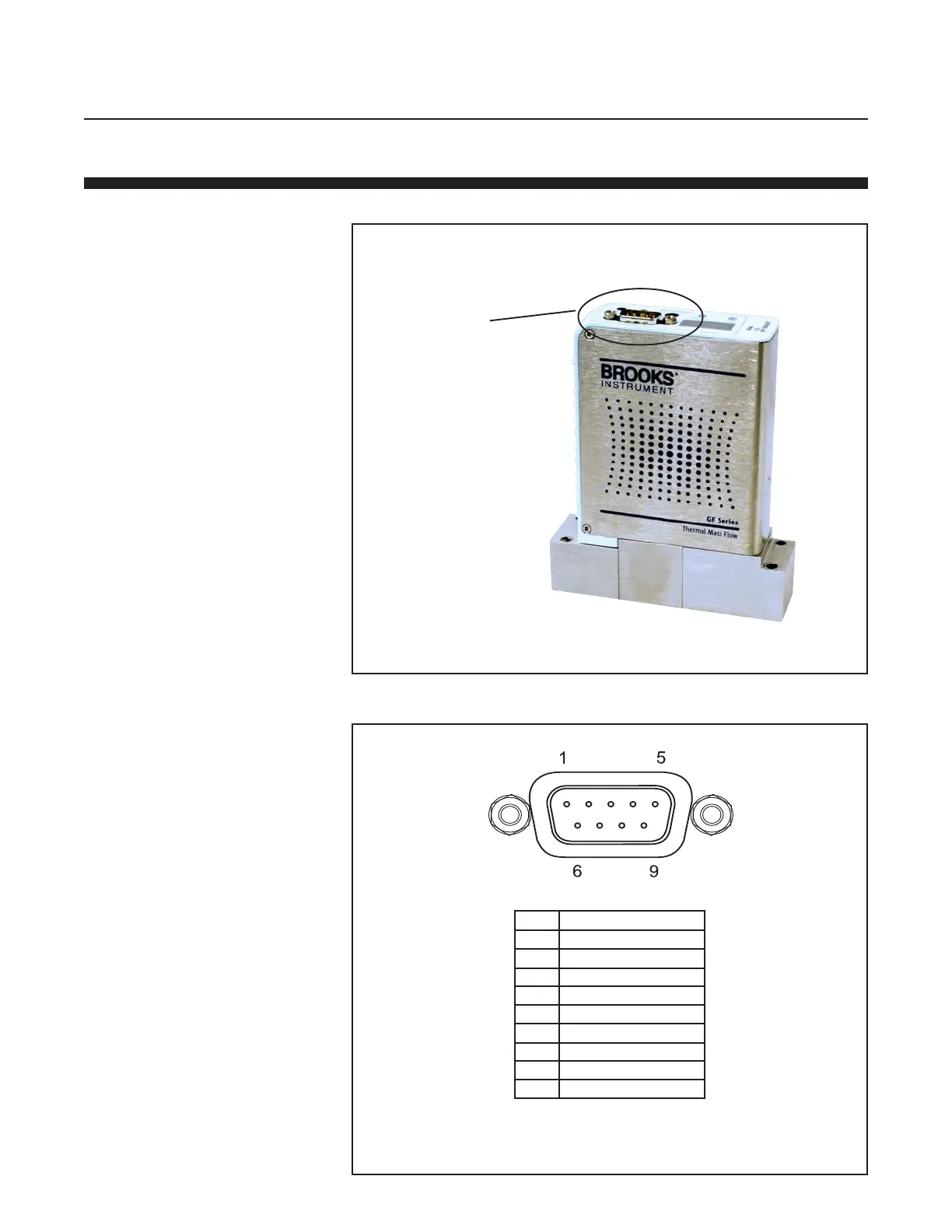

Figure D-2 GF1XX with 9-Pin Analog Connector

Analog 9-Pin

Connector

(Refer to Figure D1-3

for Pin-Out Details)

D-1-2 Digital/Analog Connector

The GF Series devices are available with Analog 9-Pin D-Connectors shown in Figure D-2.
