D-1

GF Series

Installation and Operation Manual

X-TMF-GF Series-MFC-eng

Part Number: 541B137AAG

March, 2010

Section D Misc. Drawings

D-1 Electrical Connection

D-1-1 DeviceNet Connections

DeviceNet is a 5 wire local network connection that employs a command response communication protocol for

communicating between a master and slave. Obtain a DeviceNet communication cable (Micro M-12) and fasten it

to the 5-pin connector as shown in Figure D-1.

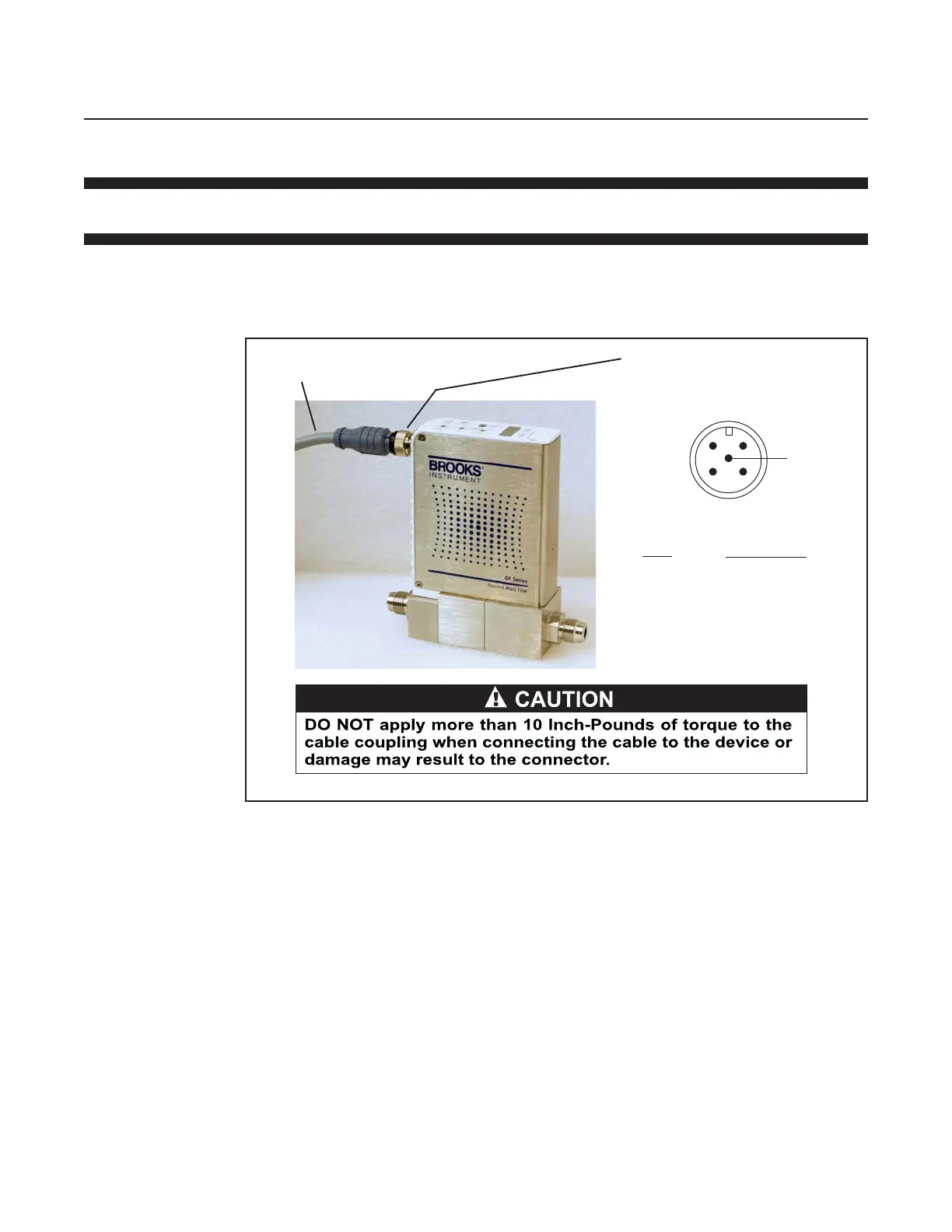

Figure D-1 GF1XX DeviceNet Connection

DeviceNet (M-12)

Connector Cable

DeviceNet 5-Pin (M-12)

Connector (M)

Pin Connection

1 Drain

2 V+ (11-25 Vdc)

3 V--

4 CAN-H

5 CAN-L
