D-6
GF Series
Installation and Operation Manual
X-TMF-GF Series-MFC-eng
Part Number: 541B137AAG
March, 2010
Section D Mics. Drawings

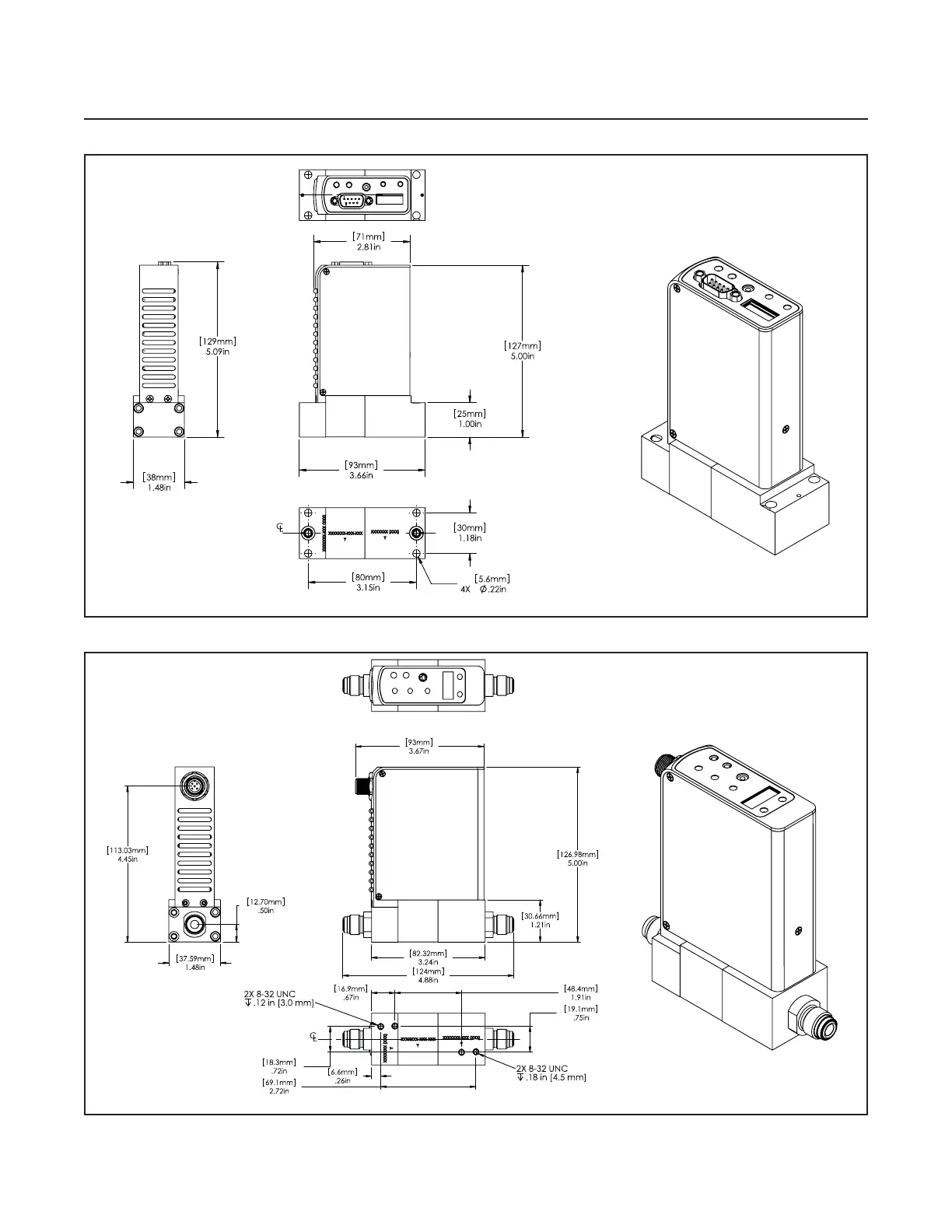

Figure D-10 Digital/Analog DB9, RS-485 1-1/2" W-Seal 80mm Downported
Figure D-11 DeviceNet 124mm 1/4" VCR Fittings
