HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
3-41

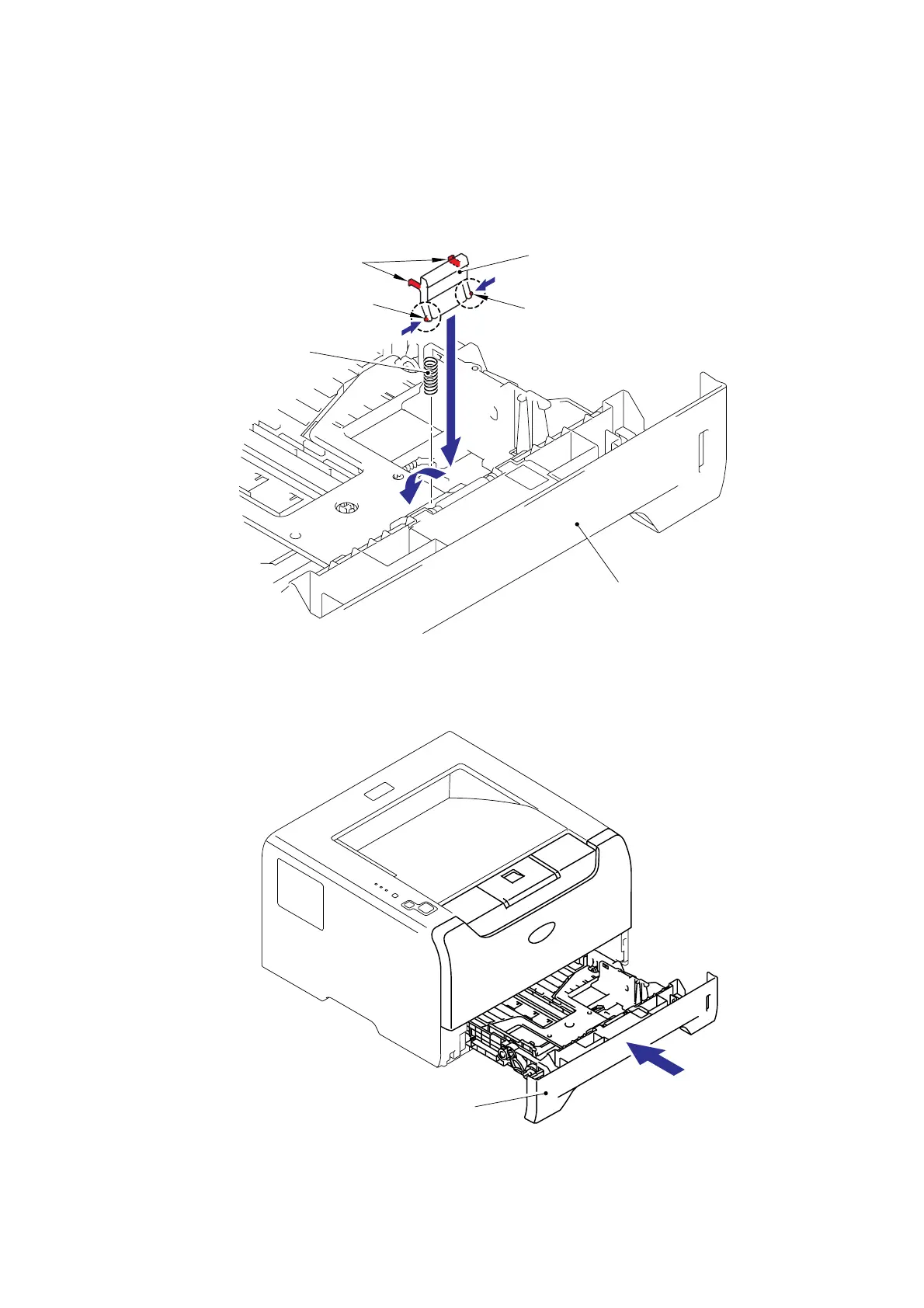

(6) Set the Separation pad spring.
(7) Put the Hooks of the Separation pad ASSY into the Paper tray, and turn the Separation
pad ASSY to the direction of the arrow 7c to catch the Hooks into the Paper tray.
NOTE:
Check that the Separation pad spring is assembled correctly.
Fig. 3-70
(8) Put the Paper tray into the Printer.
Fig. 3-71
Paper tray
Separation pad ASSY
Hook
Paper tray
Hook
Hooks
Separation pad spring
7a
7b
7b
7c
