HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
5-91
8.11 LT Solenoid ASSY
(1) Remove the bind B M3x10 Taptite screw, and then remove the LT solenoid ASSY.
(2) Remove the Solenoid release spring P/R from the LT solenoid ASSY.

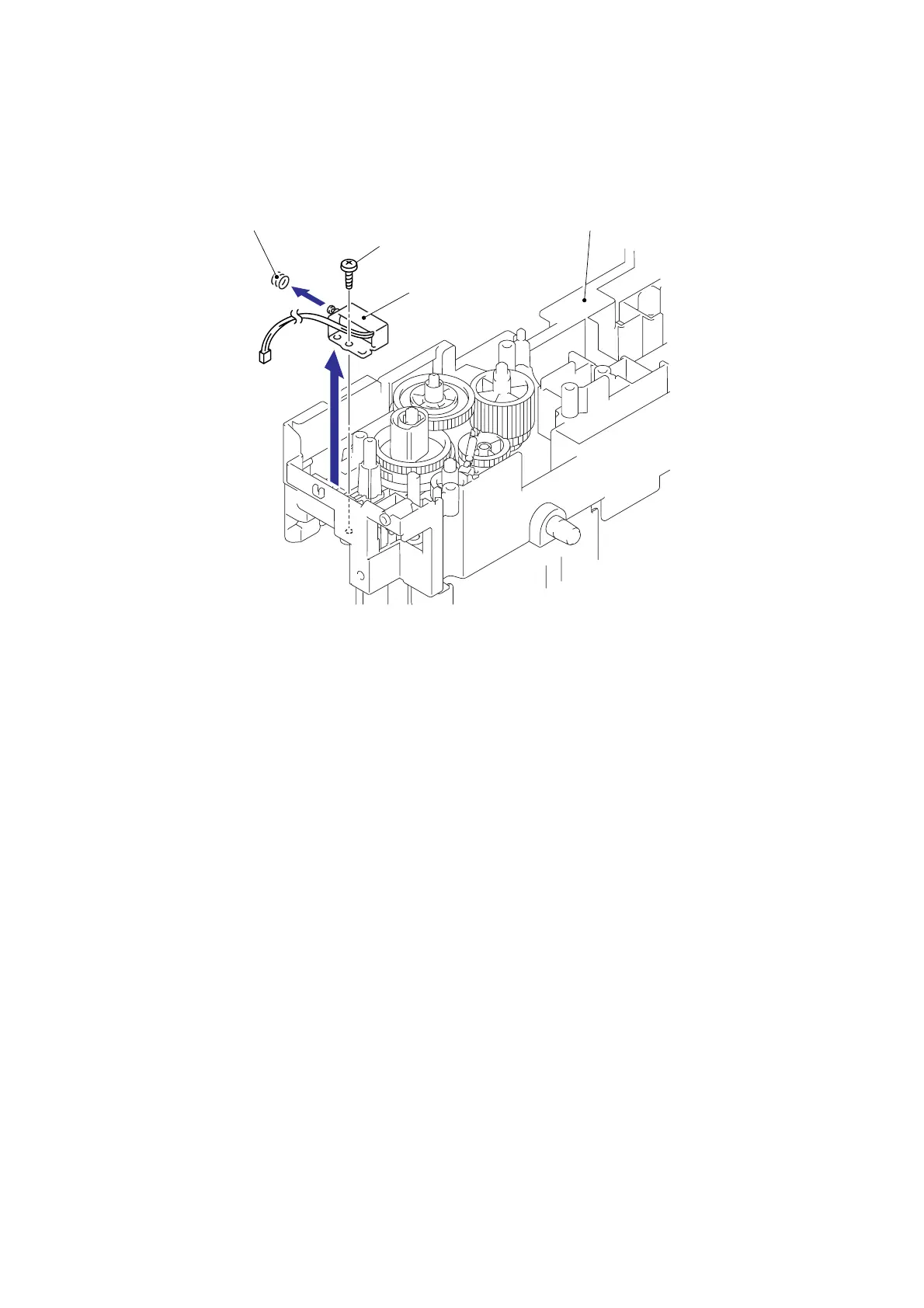

Fig. 5-152
Taptite, bind B M3x10
LT frame L
Solenoid release spring P/R
LT solenoid ASSY
