Brother HL-5280DW Service Manual

CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-90

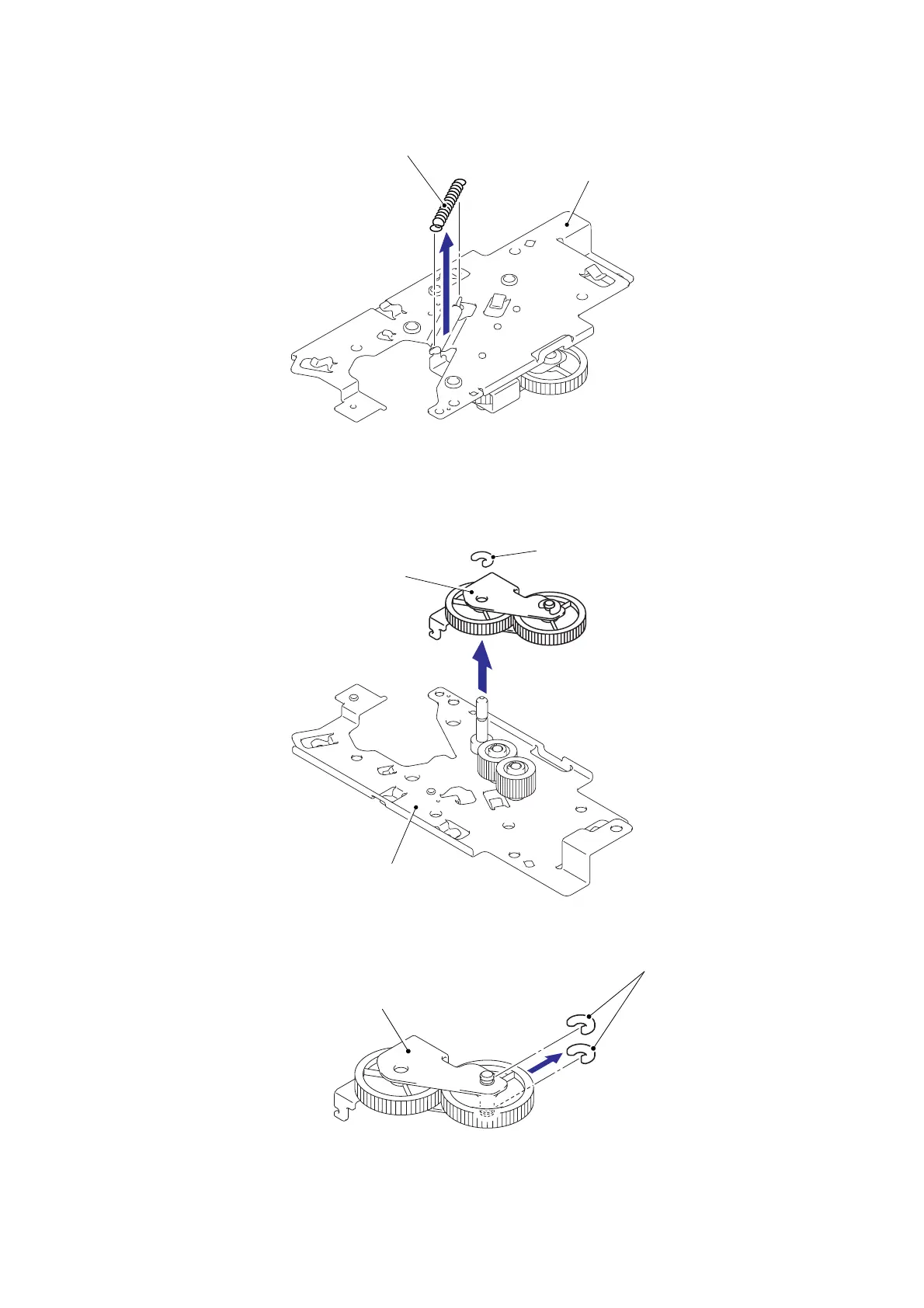

(7) Remove the Clutch spring from the LT drive unit.
Fig. 5-149
(8) Remove the Collar 6.
(9) Remove the Clutch arm ASSY from the LT drive unit.
Fig. 5-150
(10) Remove the Collar 6 from the Clutch arm ASSY.
Fig. 5-151
LT drive unit
Clutch spring
LT drive unit
Collar 6
Clutch arm ASSY
Collar 6
Clutch arm ASSY
