CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-82

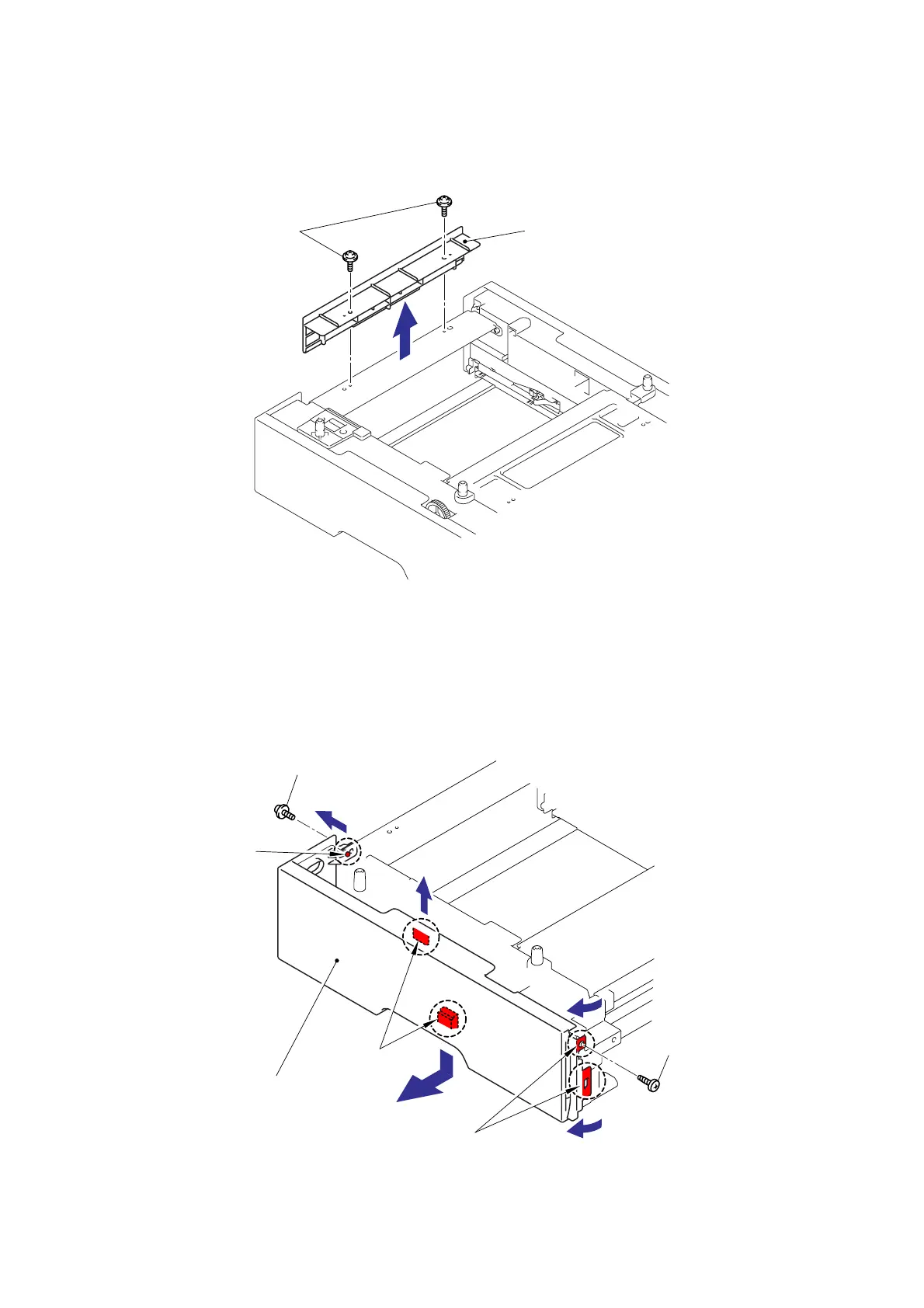

8.3 LT Rear Cover
(1) Remove the two cup S M3x6 Taptite SR screws.
(2) Remove the LT rear cover.
Fig. 5-135
8.4 LT Side Cover L
(1) Remove the bind B M4x12 Taptite screw.
(2) Remove the cup S M3x6 Taptite SR screw.
(3) Release the Hooks in the order of the arrows and remove the LT side cover L.
Fig. 5-136
Taptite, cup S M3x6 SR LT rear cover
Taptite, cup S M3x6 SR
Taptite, bind B M4x12
LT side cover L
Hooks
Hooks
3d
3a
3b
3c
3e
Boss
<Back side>
<Left side>
To Next Page
