HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
5-25

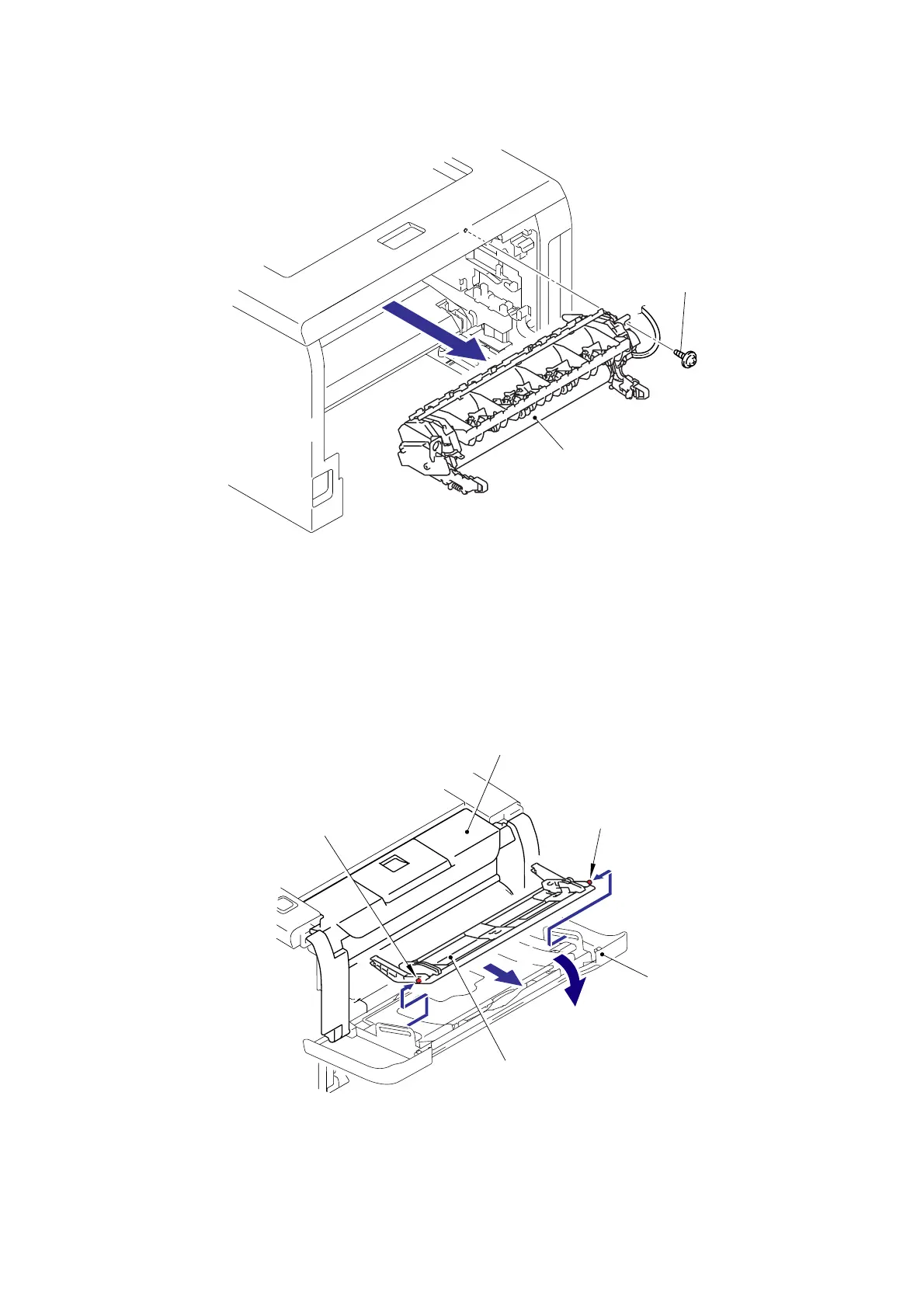

(5) Remove the cup B M4x16 Taptite screw, and then remove Fuser unit.
Fig. 5-21
7.9 Tray MP ASSY
(1) Open the MP tray cover ASSY.
(2) Release the Bosses of the Tray MP ASSY from the MP tray cover ASSY.
(3) Remove the Tray MP ASSY.
Fig. 5-22
Fuser unit
Taptite, cup B M4x16
Process cover ASSY
Tray MP ASSY
1
2
3
MP tray cover ASSY
2
Boss
Boss
