HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
5-23
7.8 Fuser Unit

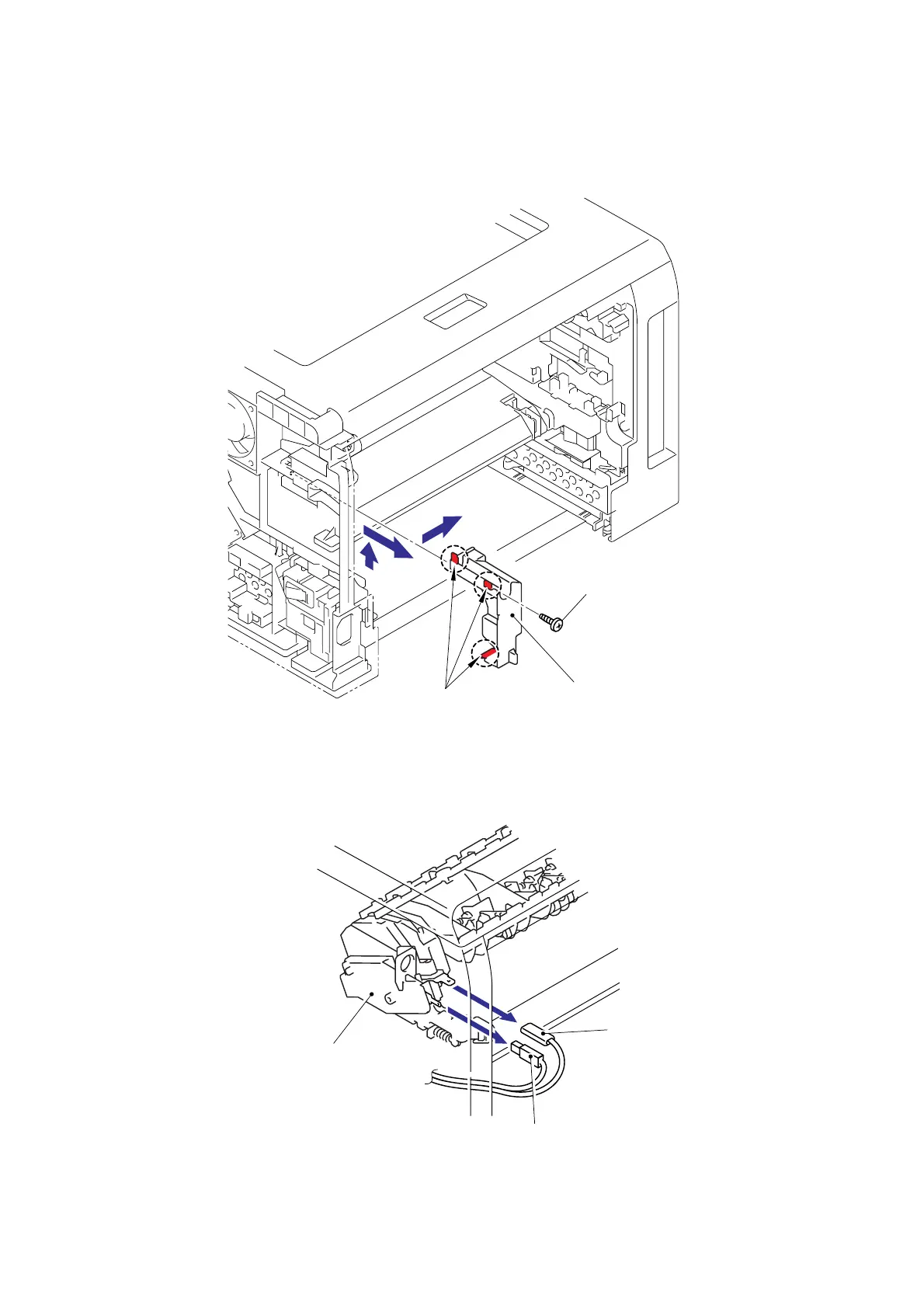

(1) Remove the bind B M4x16 Taptite screw. Release the Hooks in the order of 1a, 1b and
1c. Remove the FU harness cover 1.
Fig. 5-17
(2) Remove the Heater terminal L and Heater terminal S from the Fuser unit while holding the
Fuser unit.
Fig. 5-18
FU harness cover 1
Taptite, bind B M4x16
Hooks
1a
1b
1c
Heater terminal L
Heater terminal S
Fuser unit
