CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-36

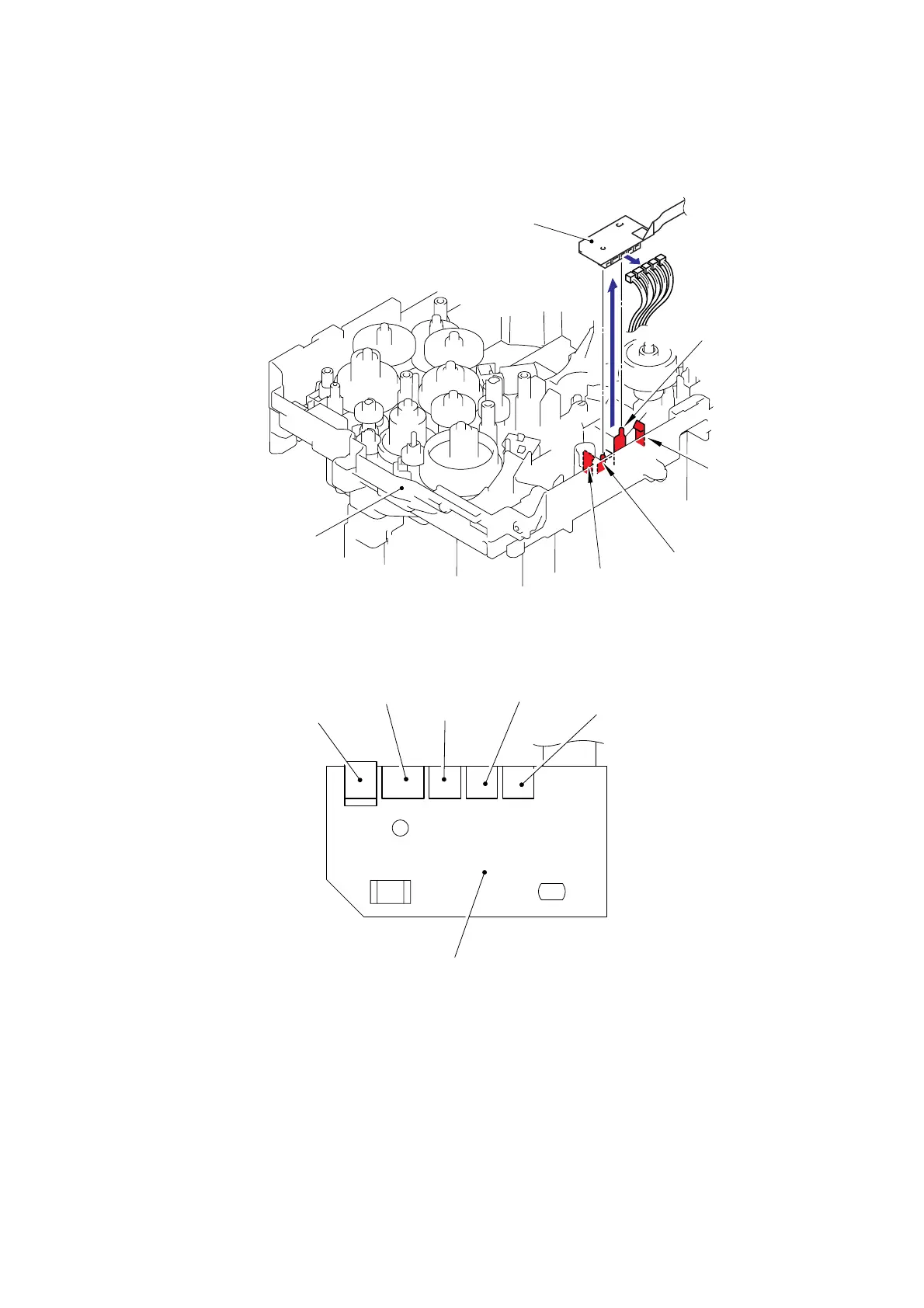

7.16 Relay Front PCB ASSY
(1) Remove the Relay front PCB ASSY.
(2) Disconnect the five connectors from the Relay front PCB ASSY.
Fig. 5-43
Fig. 5-44
Frame L
Relay front PCB ASSY
Hook
Pin
Hook
Pin
Relay front PCB ASSY
Toner sensor PCB connector
Inter lock SW connector
MP solenoid
connector
T1 solenoid connector
Register solenoid connector
To Next Page
