HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
5-37
7.17 MP Solenoid ASSY

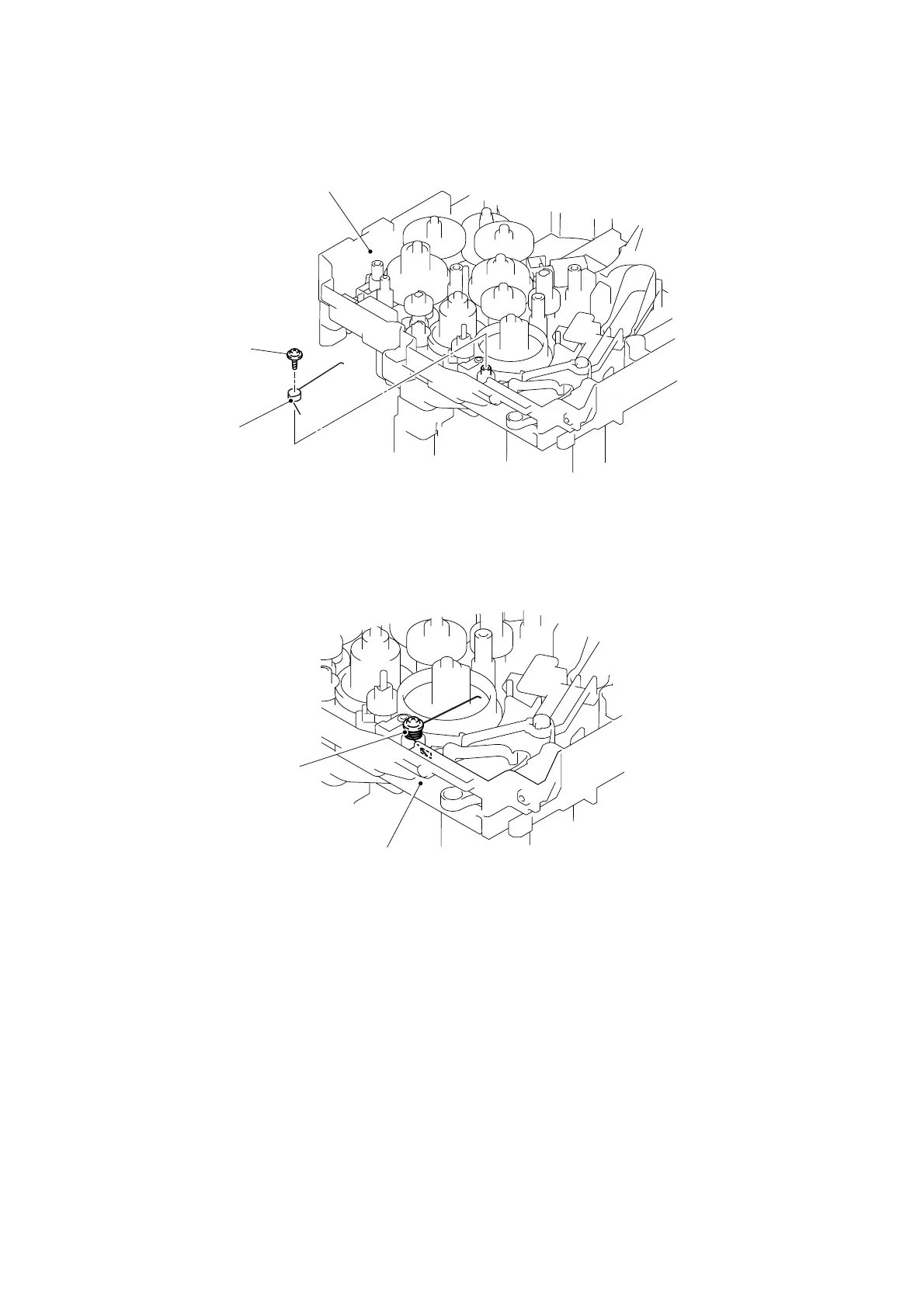

(1) Remove the cup B M3x8 Taptite screw, and then remove the Spring.
Fig. 5-45
Assembling Note:
When assembling the Spring, ensure that its direction is correct referring to the figure below.
Fig. 5-46
Taptite, cup B M3x8
Spring
Frame L
Frame L
Spring
