Brother HL-5280DW - LT Side Cover R

HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
5-83
8.5 LT Side Cover R
(1) Remove the bind B M4x12 Taptite screw.
(2) Remove the cup S M3x6 Taptite SR screw.
(3) Release the Hooks in the order of the arrows and remove the LT side cover R.

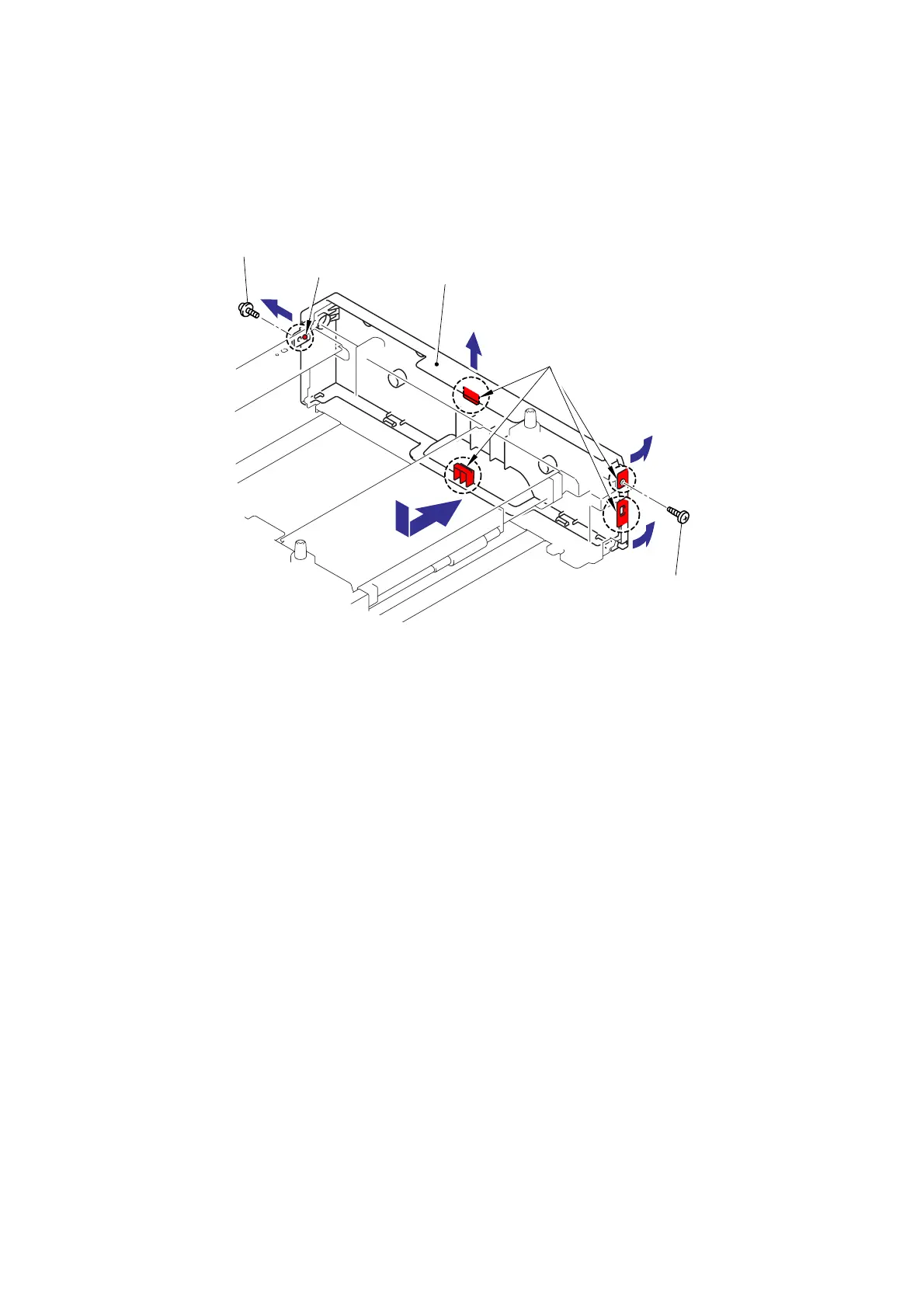

Fig. 5-137
Taptite, bind B M4x12
Taptite, cup S M3x6 SR
LT side cover R
Hooks
Boss
3d
3b
3a
3e
3c
<Right side>
