CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-44

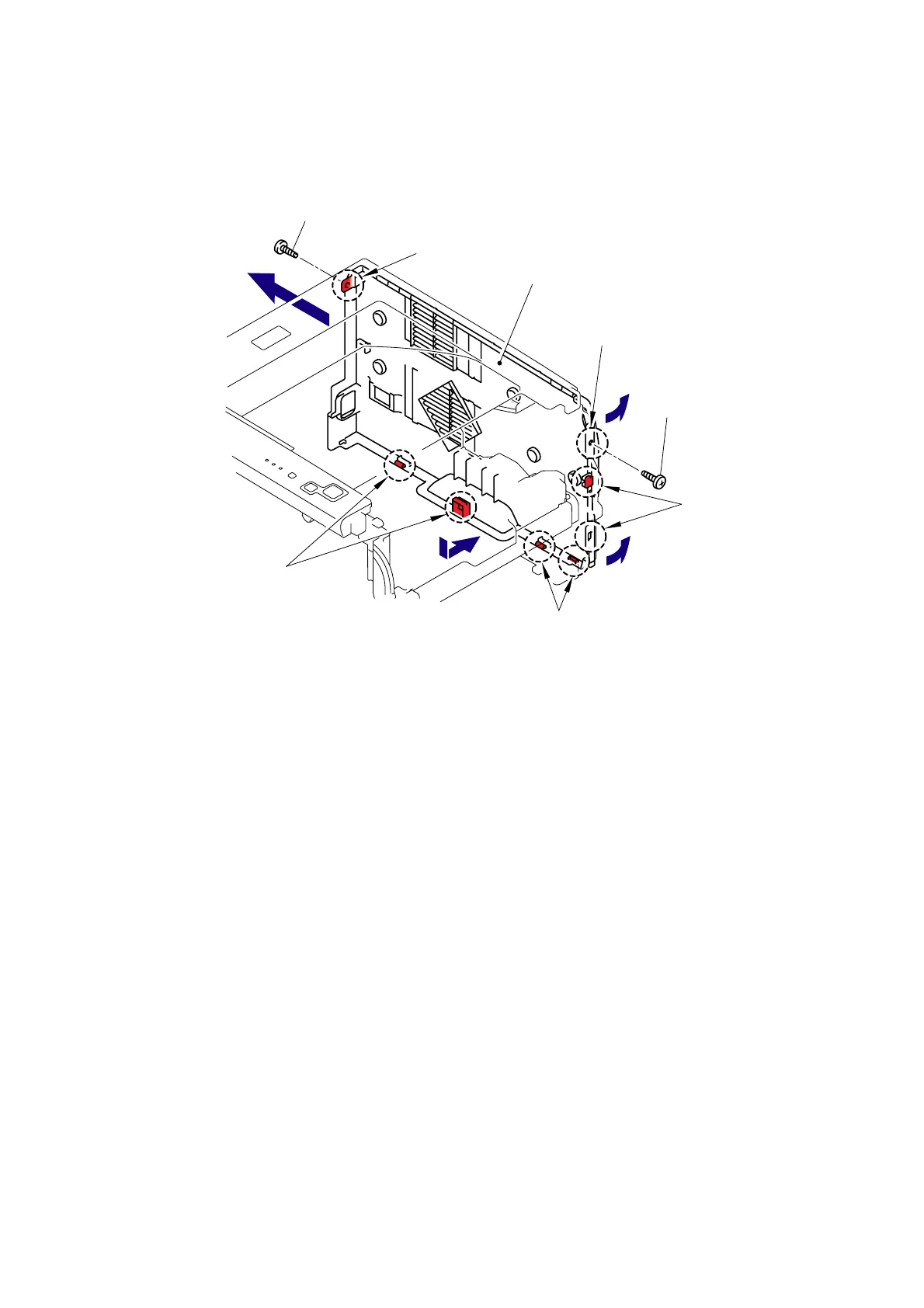

7.26 Side Cover R
(1) Remove the two bind B M4x12 Taptite screws, and then remove the Side cover R by
following the direction from 1a to 1d.
Fig. 5-61
Taptite, bind B M4x12
Taptite, bind B M4x12
Side cover R
Hooks
Hooks
Hook
1d
1c 1b
1a
Hook
Hooks
