HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
2-17
3.4 Toner Cartridge
Develops the electrostatic latent image on the exposure drum with toner and forms the visible
image.
3.4.1 Toner life end mode
A new toner cartridge can print approximately 3,500 (standard toner) or approximately 7,000
(high yield toner) A4 or Letter size single-sided pages at 5% coverage. In the case of low-duty
printing, “Toner Life End” is indicated by lighting Toner LED (HL-5240/5250DN) or “TONER
LIFE END” message appears on the LCD panel (HL-5270DN/5280DW) before the toner runs
out because the developer roller surface or other toner sealing is worn out due to a rotation of
the rollers. The upper limit of the drum rotation is 46,200 = 4,200 sheets x 11 rotations
(standard toner), 92,400 = 8,400 sheets x 11 rotations (high yield toner).

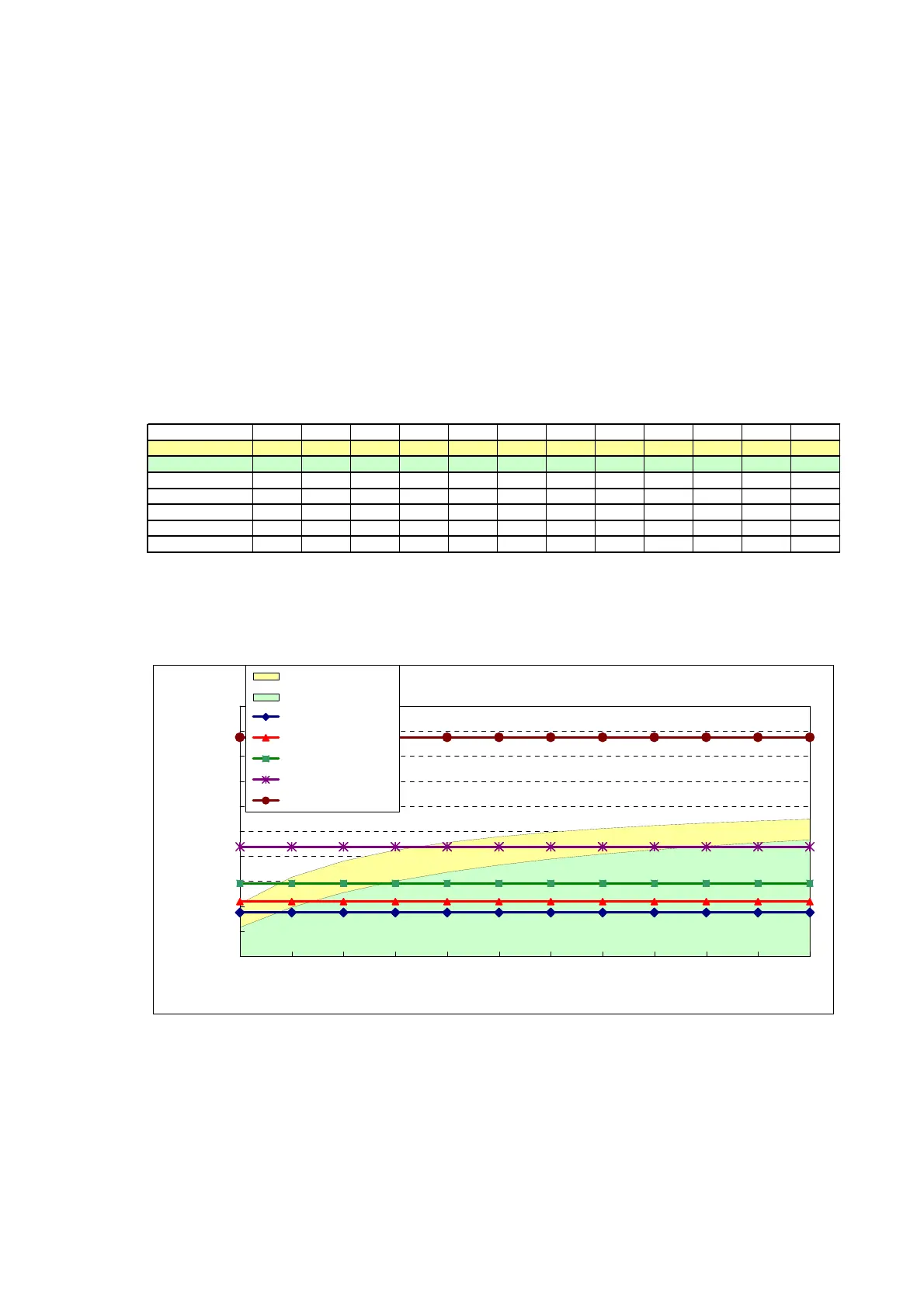

The following graph shows the number of printable pages in the case of A4 printing.
HL-5240/5250DN/5270DN/5280DW(Standard (3.5K) toner)
Page/job 123456789101112
Cartridge life
4,200 6,329 7,615 8,477 9,094 9,559 9,920 10,210 10,447 10,645 10,813 10,957
Cartridge life+ON/OFF
2,310 3,915 5,096 6,000 6,715 7,295 7,774 8,177 8,520 8,817 9,075 9,302
Toner empty (5%)
3,500 3,500 3,500 3,500 3,500 3,500 3,500 3,500 3,500 3,500 3,500 3,500
Toner empty (4%)
4,375 4,375 4,375 4,375 4,375 4,375 4,375 4,375 4,375 4,375 4,375 4,375
Toner empty (3%) 5,833 5,833 5,833 5,833 5,833 5,833 5,833 5,833 5,833 5,833 5,833 5,833
Toner empty (2%)
8,750 8,750 8,750 8,750 8,750 8,750 8,750 8,750 8,750 8,750 8,750 8,750
Toner empty (1%)
17,500 17,500 17,500 17,500 17,500 17,500 17,500 17,500 17,500 17,500 17,500 17,500
Cartridge life = 11a x 4200 / ( 3.6 x (a - 1) + 11 ) a : Page / job
Cartridge life+ON/OFF = ( 11a x 4200 ) / ( 3.6 x (a - 1) + 11 + 9 )
Cartridge life (Mechanical limit) : 4200 ( 1page / job )
0
2,000
4,000
6,000
8,000
10,000
12,000
14,000
16,000
18,000
20,000
123456789101112
Page / Job
Printable pages
Cartridge life
Cartridge life+ON/OFF
Toner empty (5%)
Toner empty (4%)
Toner empty (3%)
Toner empty (2%)
Toner empty (1%)
