Brother HL-5280DW Service Manual

CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-60
7.32 High-Voltage PS PCB ASSY

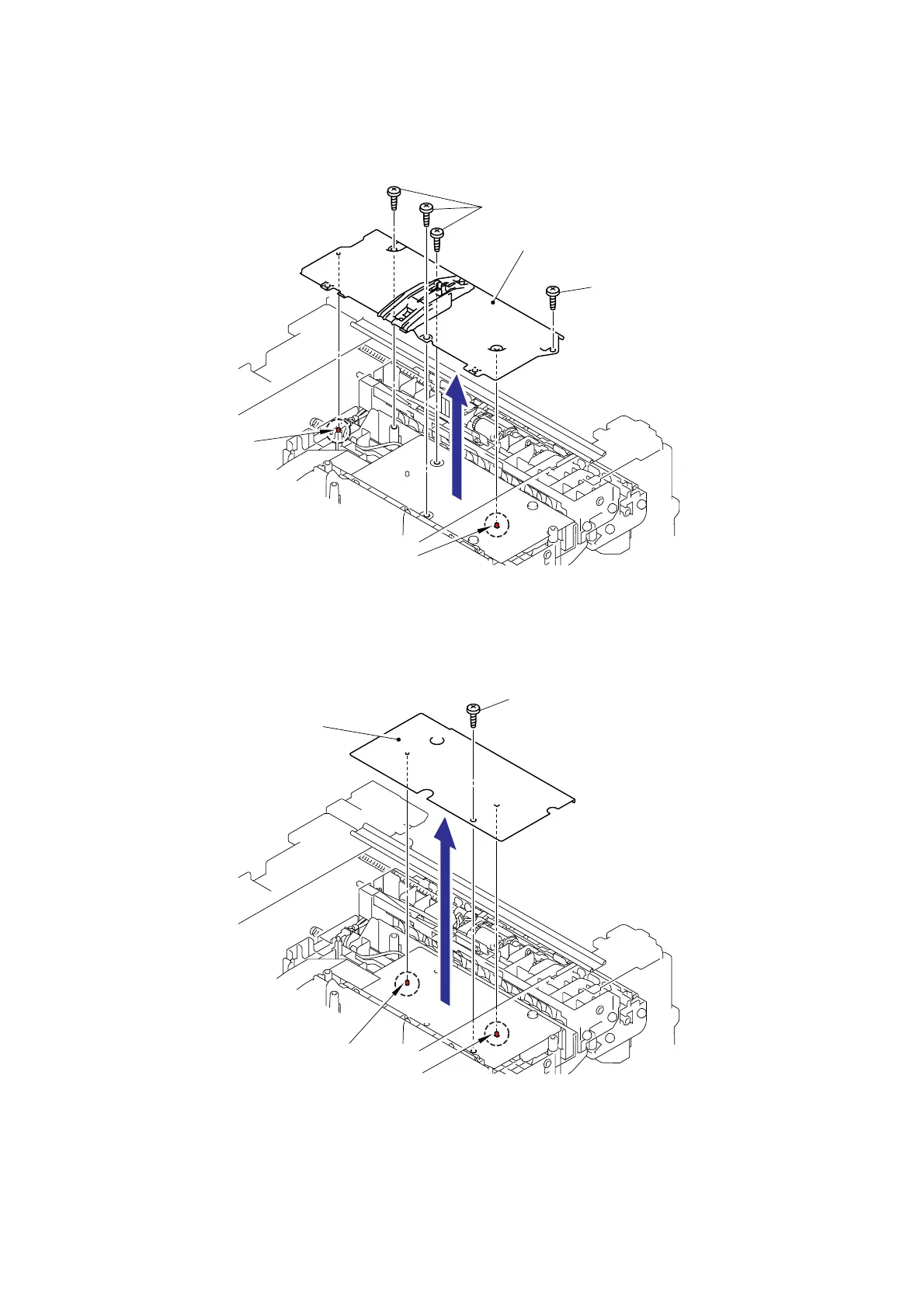

(1) Remove the four bind B M4x12 Taptite screws, and then remove the Base plate HV.
Fig. 5-92
(2) Remove the bind B M4x12 Taptite screw, and then remove the HV insulation sheet.
Fig. 5-93
Taptite, bind B M4x12
Base plate HV
Taptite, bind B M4x12
HV insulation sheet
Pin
Pin
Pin
Pin
Taptite, bind B M4x12
<Front side>
