HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
5-45

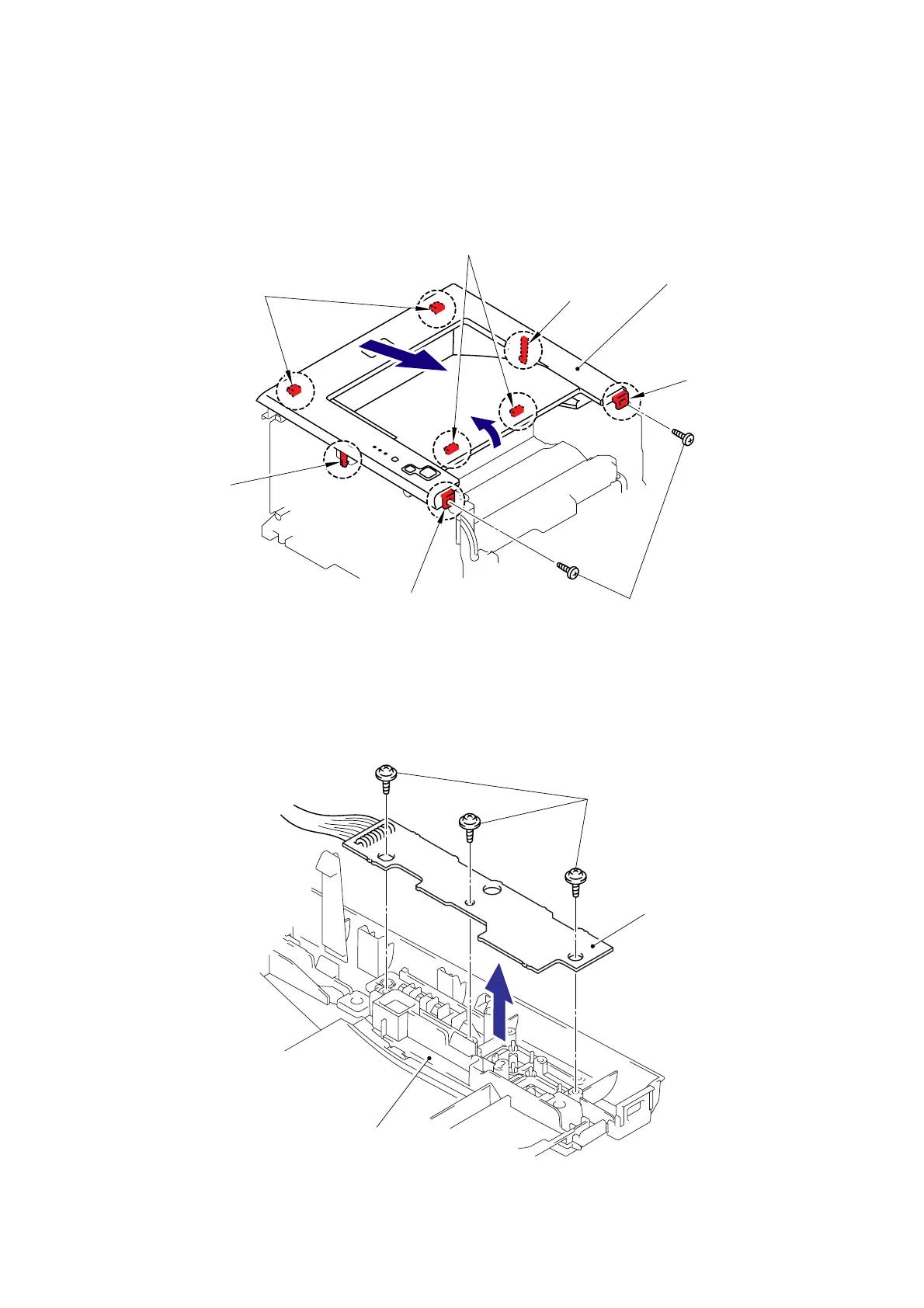

7.27-1 Top Cover Printed ASSY (For HL-5240/5250DN)
(1) Remove the two bind B M4x12 Taptite screws from the Top cover printed ASSY.
(2) Release all Hooks of the Top cover printed ASSY and lift up the front side of the Top cover
printed ASSY.
(3) Remove the Top cover printed ASSY.
Fig. 5-62
7.27-2 Panel PCB ASSY
(1) Turn the Top cover printed ASSY upside down.
(2) Remove the
three cup B M3x8 Taptite screws, and then remove the Panel PCB ASSY.
Fig. 5-63
Taptite, bind B M4x12
Hook
Hook
Hook
Hook
Hooks
Hooks
Top cover printed ASSY
3
Taptite, cup B M3x8
Panel PCB ASSY
Top cover printed ASSY
<Front side>
2
