CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-34
7.15 Relay Rear PCB ASSY/Connector

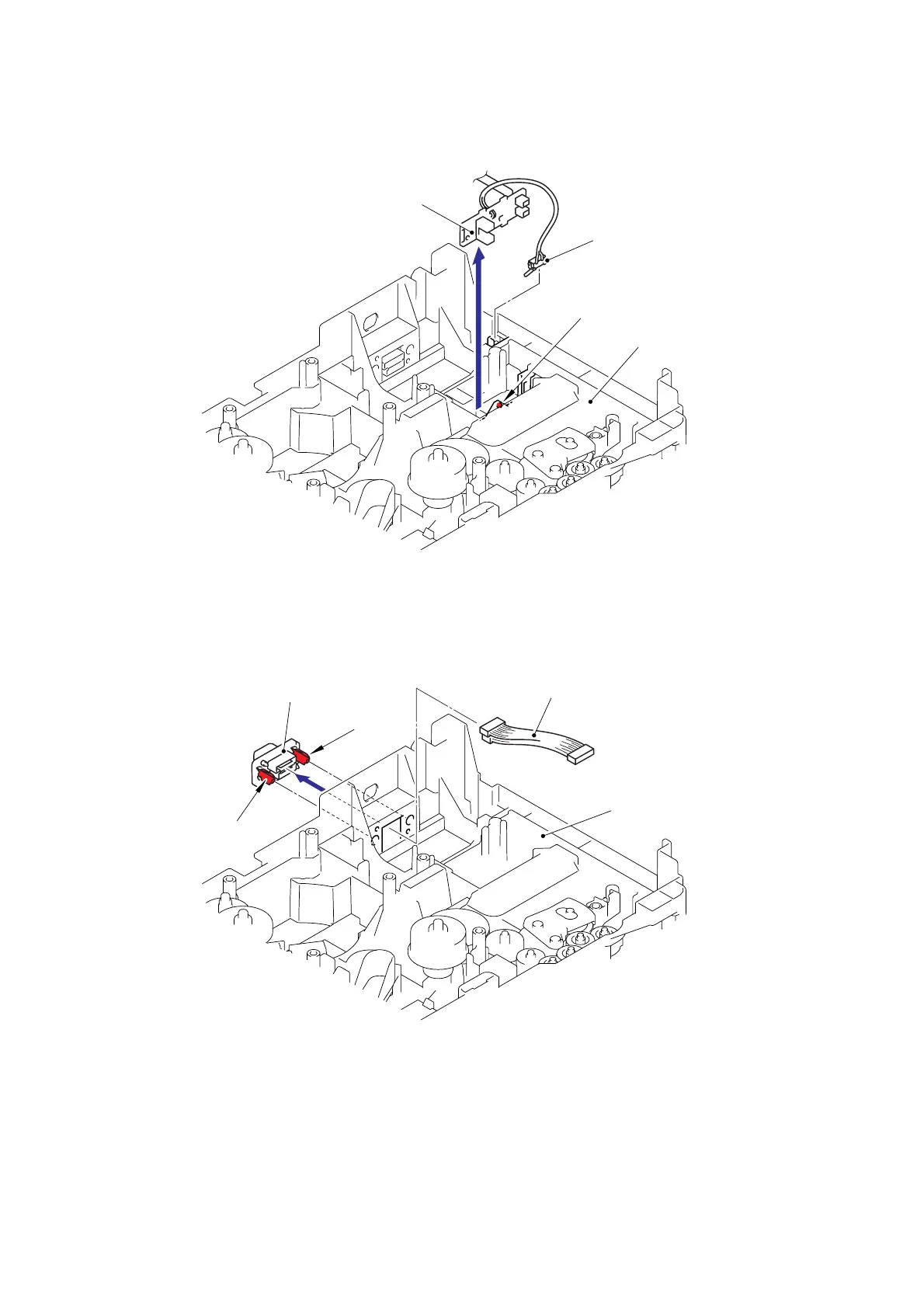

(1) Remove the Relay rear PCB ASSY.
Fig. 5-40
(2) Remove the Connector harness.
(3) Disconnect the LT connector while pressing the Hook inwards.
Fig. 5-41
Relay rear PCB ASSY
Frame L
Hook
LT connector
Hook
Hook
Frame L
Connector harness
DX sensor
(For HL-5250DN/5270DN/5280DW)
