HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
5-33

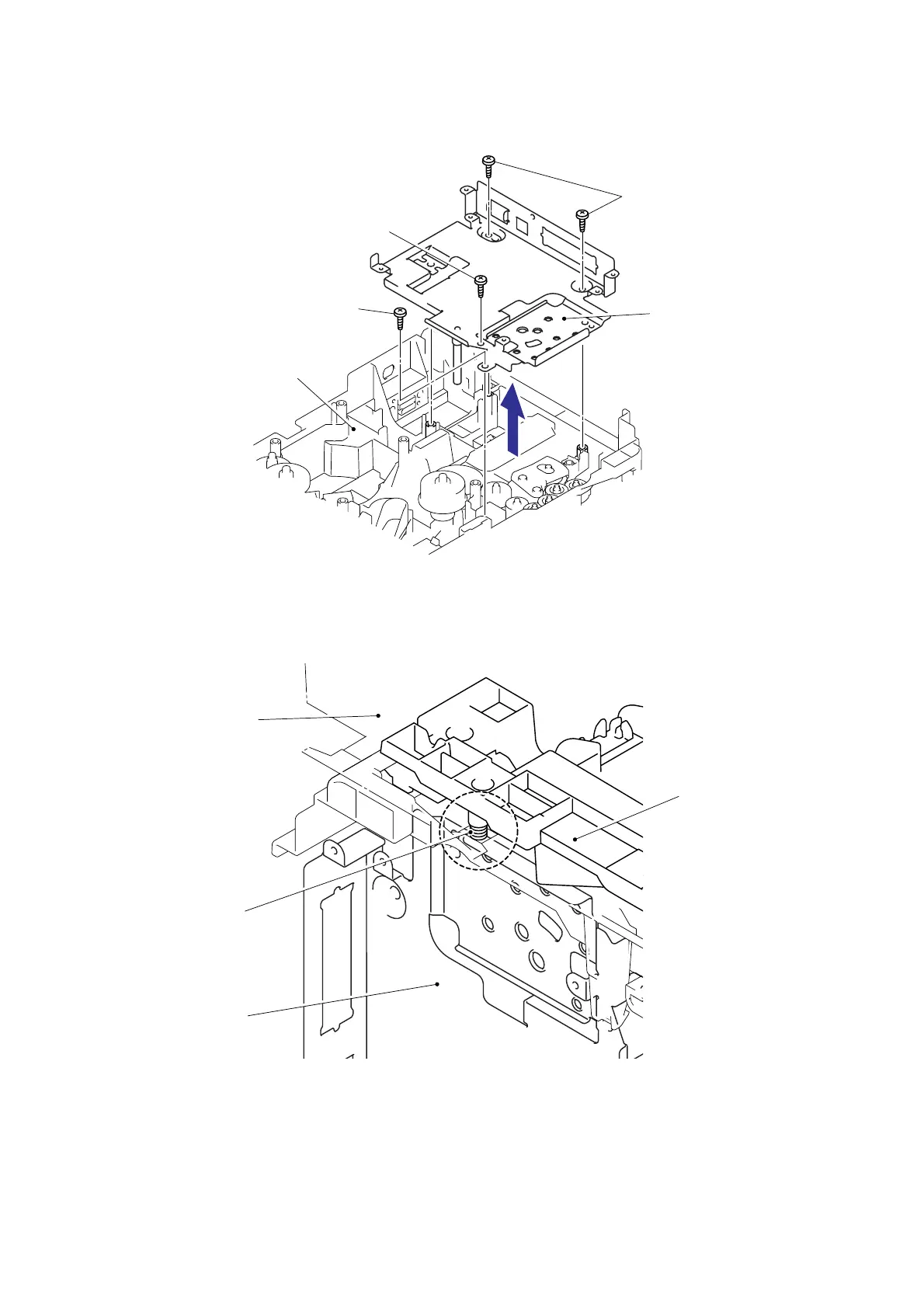

(4) Remove the three bind B M4x12 Taptite screws and cup S M3x6 Taptite screw, and then
remove the Main shield plate ASSY.
Fig. 5-38
Assembling Note:
When assembling the Main shield plate ASSY, be careful not to bend the Ground wire AL of
the Frame L.
Fig. 5-39
Main shield plate ASSY
Ground wire AL
Inner chute AL
Joint cover
Taptite, bind B M4x12
Taptite, cup S M3x6
Main shield plate ASSY
Frame L
Taptite, bind B M4x12
